TIMING

CARBURETOR FOR SUZUKI GS-E 500 1995

AIR FILTER

Item numbers

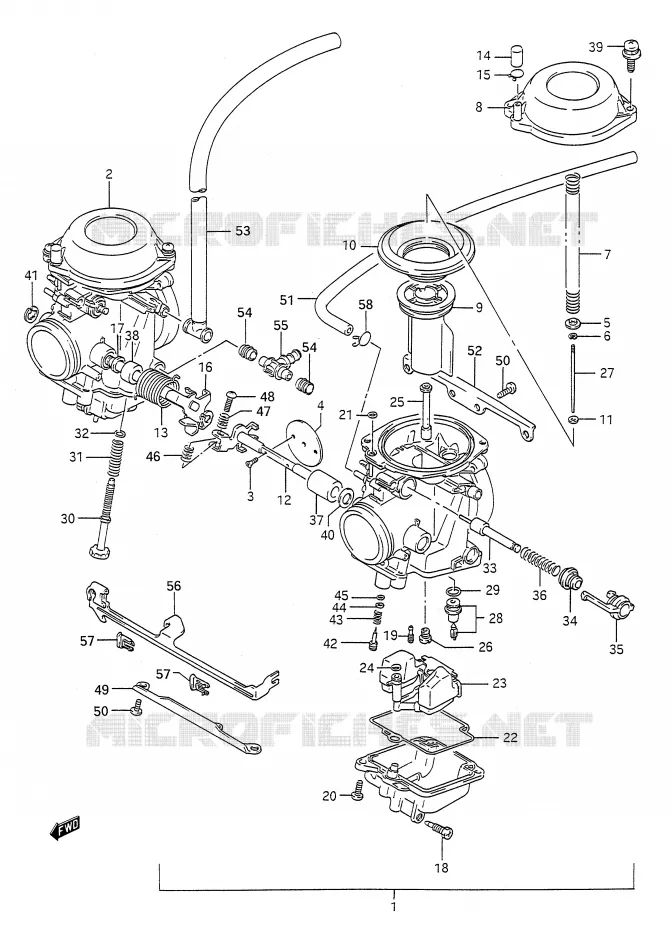

CARBURETOR Suzuki MOTO 500 GS-E 1995 GS500ES(E28)
1
2
2
3
3
4
5
6
6
7
8
9
10
10
10
11
12
13
14
15
15
16
17
18
18
19
20
20
21
22
23
23
24
25
26
27
28
29
30
30
31
31
32
33
34
35
36
37
38
39
39
40
41
42
43
44
45
46
47
48
49
50
50
50
50
51
52
53
53
54
54
55
56
57
57
58
58
1
13201-01D21
CARBURETOR ASSY, LH

13201-01D20-000   1320101D20000

1320101D20000
Not available
2
13202-02D61
CARBURETOR ASSY, RH

13202-01D20-000   1320201D20000

1320201D20000
Not available
2
DISCONTINUE

13202-02D60-000  

1320202D60000
Not available
3
SCREW

13604-42A00-000  

13604-44080-000
 1360442A00000

Unit Price

4
DISCONTINUE
VALVE, THROTTLE (120)

13551-01D00-000   1355101D00000

1355101D00000
Not available
5
RING
RING

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

6
E RING

13394-01D00-000  

13394-40D20-000
 1339401D00000

Unit Price

7
SPRING
SPRING

13417-42A00-000   1341742A00000

1341742A00000

Unit Price

8
COVER, DIAPHRAGM

13502-01D00-000   1350201D00000

1350201D00000

Unit Price

9
DISCONTINUE
VALVE, PISTON

13501-01D00-000   1350101D00000

1350101D00000
Not available
10
DIAPHRAGM

13507-17C00-000  

13507-17C02-000
 1350717C00000

Unit Price

10
DIAPHRAGM

13507-44B00-000  

13507-44B01-000
 1350744B00000

Unit Price

11
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

12
.SHAFT ASSY

13550-01D00-000   1355001D00000

1355001D00000
Not available
13
SPRING

13573-44B00-000   1357344B00000

1357344B00000
Not available
14
CAP
CAP

13508-17C00-000   1350817C00000

1350817C00000

Unit Price

15
CLIP
CLIP

13671-05A40-000   1367105A40000

1367105A40000

Unit Price

16
SHAFT ASSY

13550-01D10-000   1355001D10000

1355001D10000
Not available
17
SEAL
SEAL

13556-44B00-000   1355644B00000

1355644B00000

Unit Price

18
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

18
SCREW
SCREW, DRAIN

13247-28A00-000   1324728A00000

1324728A00000

Unit Price

19
JET,PILOT<br />JET, PILOT (40)
JET, PILOT
JET, PILOT (40)

09492-40014-000   0949240014000

0949240014000

Unit Price

20
SCREW

02112-05123-000  

02112-0512A-000
 0211205123000

Unit Price

21
O RING
O RING

13509-17C00-000   1350917C00000

1350917C00000

Unit Price

22
GASKET,FLOAT CAHMBER<br />GASKET, FLOAT CHAMBER
GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13258-44B00-000   1325844B00000

1325844B00000

Unit Price

23
DISCONTINUE
FLOAT ASSY

13240-01D00-000   1324001D00000

1324001D00000
Not available
24
O RING
O RING

13374-46710-000   1337446710000

1337446710000

Unit Price

25
DISCONTINUE
JET, NEEDLE (O-2)

09494-00748-000   0949400748000

0949400748000
Not available
26
JET,MAIN<br />JET, MAIN (122.5)
JET, MAIN
JET, MAIN (122.5)

09491-24013-000   0949124013000

0949124013000

Unit Price

27
NEEDLE JET
NEEDLE, JET (5DH9-3)

13383-01D10-000   1338301D10000

1338301D10000

Unit Price

28
VALVE ASSY, NEEDLE

13370-44B00-000  

13370-02D01-000
 1337044B00000

Unit Price

29
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

30
DISCONTINUE<br />ADJUSTER
DISCONTINUE
ADJUSTER

13267-14D10-000   1326714D10000

1326714D10000
Not available
31
SPRING

13268-43410-000  

13375-14D10-000
 1326843410000

Unit Price

32
WASHER
WASHER

13427-38300-000   1342738300000

1342738300000

Unit Price

33
DISCONTINUE
PLUNGER ASSY

13411-01D00-000   1341101D00000

1341101D00000
Not available
34
CAP,STARTER
CAP, STARTER

13418-17C00-000  

13418-17C01-000
 1341817C00000

Unit Price

35
HOLDER, GUIDE
HOLDER, GUIDE

13418-17C10-000   1341817C10000

1341817C10000

Unit Price

36
SPRING
SPRING

13417-09110-000   1341709110000

1341709110000

Unit Price

37
.RING

13574-01D00-000   1357401D00000

1357401D00000
Not available
38
DISCONTINUE<br />RING
DISCONTINUE
RING

13574-28A00-000   1357428A00000

1357428A00000
Not available
39
SCREW

02112-75163-000  

02112-7516A-000
 0211275163000

Unit Price

40
GASKET,THROTTLE SHAFT<br />WASHER
GASKET, THROTTLE SHAFT
WASHER

13557-47070-000   1355747070000

1355747070000

Unit Price

41
E RING
E RING

13617-44080-000   1361744080000

1361744080000

Unit Price

42
SCREW,PILOT<br />SCREW, PILOT (2 1/4)
SCREW, PILOT
SCREW, PILOT (2 1/4)

13279-47070-000   1327947070000

1327947070000

Unit Price

43
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

44
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

45
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

46
SPRING, THROTTLE SCREW

13268-96110-000  

13268-96111-000
 1326896110000

Unit Price

47
SPRING
SPRING

13271-44B00-000   1327144B00000

1327144B00000

Unit Price

48
SCREW
SCREW

13267-44B00-000   1326744B00000

1326744B00000

Unit Price

49
DISCONTINUE
PLATE

13628-01D00-000   1362801D00000

1362801D00000
Not available
50
SCREW

02112-05123-000  

02112-0512A-000
 0211205123000

Unit Price

51
DISCONTINUE
HOSE (5X9X350)

13684-01D10-000  

1368401D10000
Not available
52
DISCONTINUE
PLATE

13628-01D10-000   1362801D10000

1362801D10000
Not available
53
HOSE
HOSE

13683-17C30-000  

13683-17C31-000
 1368317C30000

Unit Price

54
SEAL
SEAL

13673-44B00-000   1367344B00000

1367344B00000

Unit Price

55
NIPPLE
NIPPLE

13685-44B00-000   1368544B00000

1368544B00000

Unit Price

56
DISCONTINUE
LEVER

13413-01D00-000   1341301D00000

1341301D00000
Not available
57
HOLDER
HOLDER

13439-17C00-000   1343917C00000

1343917C00000

Unit Price

58
CLIP

09401-08410-000  

0940108410000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
