CLUTCH

TRANSMISSION FOR SUZUKI GS-E 500 1995

GEAR SHIFTING ASSY

Item numbers

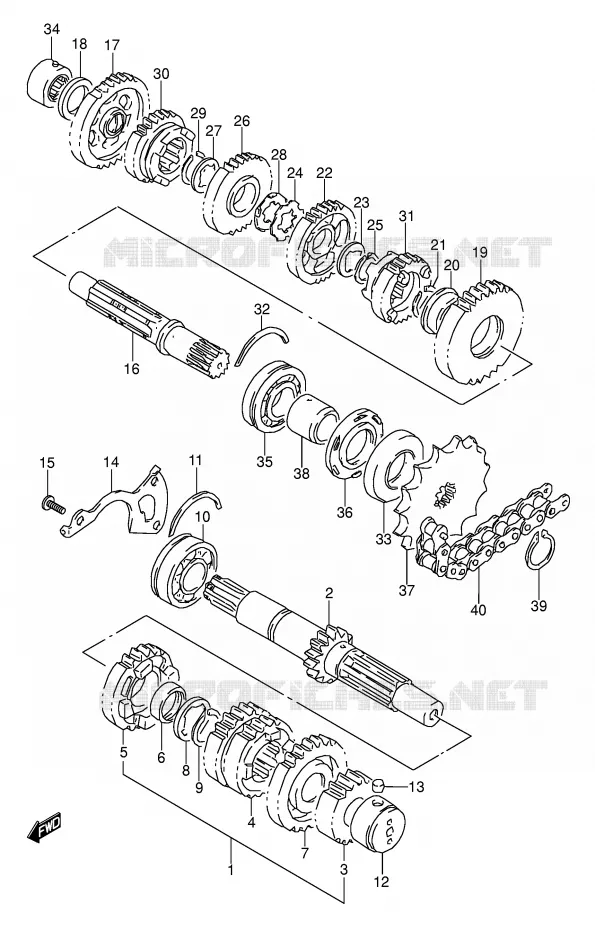

TRANSMISSION Suzuki MOTO 500 GS-E 1995 GS500ESKS(E2)
1
2
3
4
5
6
7
8
9
10
11
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
37
38
38
39
40
1
COUNTERSHAFT ASSY

24120-01D00-000   2412001D00000

2412001D00000
Not available
2
SHAFT, COUNTER

24121-01D00-000  

24121-01D01-000
 2412101D00000

Unit Price

3
GEAR, 2ND DRIVE (NT:18)

24221-44001-000   2422144001000

2422144001000

Unit Price

4
GEAR, 3RD & 4TH DRIVE

24231-01D00-000  

24231-20F10-000
 2423101D00000

Unit Price

5
GEAR, 5TH DRIVE (NT:26)

24251-01D00-000   2425101D00000

2425101D00000
Not available
6
BUSH

09300-25023-000  

24252-19F00-000
 0930025023000

Unit Price

7
GEAR, 6TH DRIVE

24260-01D00-000  

24260-01D01-000
 2426001D00000

Unit Price

8
WASHER, 5TH DRIVE GEA

08211-25341-000  

09181-25167-000
 0821125341000

Unit Price

9
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

10
BEARING<br />BEARING, RH
BEARING
BEARING, RH

09262-25105-000   0926225105000

0926225105000

Unit Price

11
C-RING

09390-62006-000  

09390-62012-000
 0939062006000

Unit Price

12
BEARING, LH

09263-20026-000   0926320026000

0926320026000
Not available
13
PIN 7 X 12<br />PIN
PIN 7 X 12
PIN

04221-07129-000   0422107129000

0422107129000

Unit Price

14
PLATE, COUNTERSHAFT BEARING
HOLDER, BEARING

24741-44102-000   2474144102000

2474144102000

Unit Price

15
SCREW

02122-06163-000  

02122-0616B-000
 0212206163000

Unit Price

16
SHAFT, DRIVE
DRIVE SHAFT

24131-01D00-000   2413101D00000

2413101D00000

Unit Price

17
GEAR, 1ST DRIVEN

24310-44000-000  

24310-44001-000
 2431044000000

Unit Price

18
WASHER
WASHER

08211-20341-000   0821120341000

0821120341000

Unit Price

19
GEAR, 2ND DRIVEN.NT:32)

24321-44004-000  

24321-20F01-000
 2432144004000

Unit Price

20
BUSH

09301-25001-000  

24322-19F00-000
 0930125001000

Unit Price

21
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

22
GEAR, 3RD DRIVEN

24331-44002-000  

24331-44003-000
 2433144002000

Unit Price

23
WASHER
WASHER

09167-25012-000   0916725012000

0916725012000

Unit Price

24
LOCK WASHER
LOCK WASHER

09167-25013-000   0916725013000

0916725013000

Unit Price

25
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

26
GEAR, 4TH DRIVEN

24341-44002-000  

24341-44003-000
 2434144002000

Unit Price

27
WASHER
WASHER

09167-25012-000   0916725012000

0916725012000

Unit Price

28
LOCK WASHER
LOCK WASHER

09169-25001-000   0916925001000

0916925001000

Unit Price

29
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

30
DISCONTINUE
GEAR, 5TH DRIVEN (NT:25)

24351-44001-000   2435144001000

2435144001000
Not available
31
GEAR, 6TH DRIVEN(NT:23)

24361-44002-000  

24361-44010-000
 2436144002000

Unit Price

32
C-RING

09390-62006-000  

09390-62012-000
 0939062006000

Unit Price

33
OIL SEAL
OIL SEAL (32X62X7)

09283-32015-000   0928332015000

0928332015000

Unit Price

34
BEARING(20X34X17)

09263-20028-000  

09263-20027-000
 0926320028000

Unit Price

35
BEARING<br />BEARING, LH
BEARING
BEARING, LH

09262-25105-000   0926225105000

0926225105000

Unit Price

36
OIL SEAL

09282-32002-000   0928232002000

0928232002000

Unit Price

37
SPROCKET, ENGINE(16T)
SPROCKET, ENGINE (NT:16)

27511-01D01-000   2751101D01000

2751101D01000

Unit Price

37
DISCONTINUE

27511-01D00-000  

2751101D00000
Not available
38
SPACER

27531-01D10-000  

27531-01D11-000
 2753101D10000

Unit Price

38
SPACER (L:35.6)

27531-01D00-000   2753101D00000

2753101D00000
Not available
39
CIRCLIP

08331-31256-000  

08331-31259-000
 0833131256000

Unit Price

40
CHAIN(DID520VM, 110L)
CHAIN, DRIVE (DID520V6X110LE)

27600-01C10-110   2760001C10110

2760001C10110

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
