Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

FRAME FOR SUZUKI GS-E 500 1995

FOOTREST

Item numbers

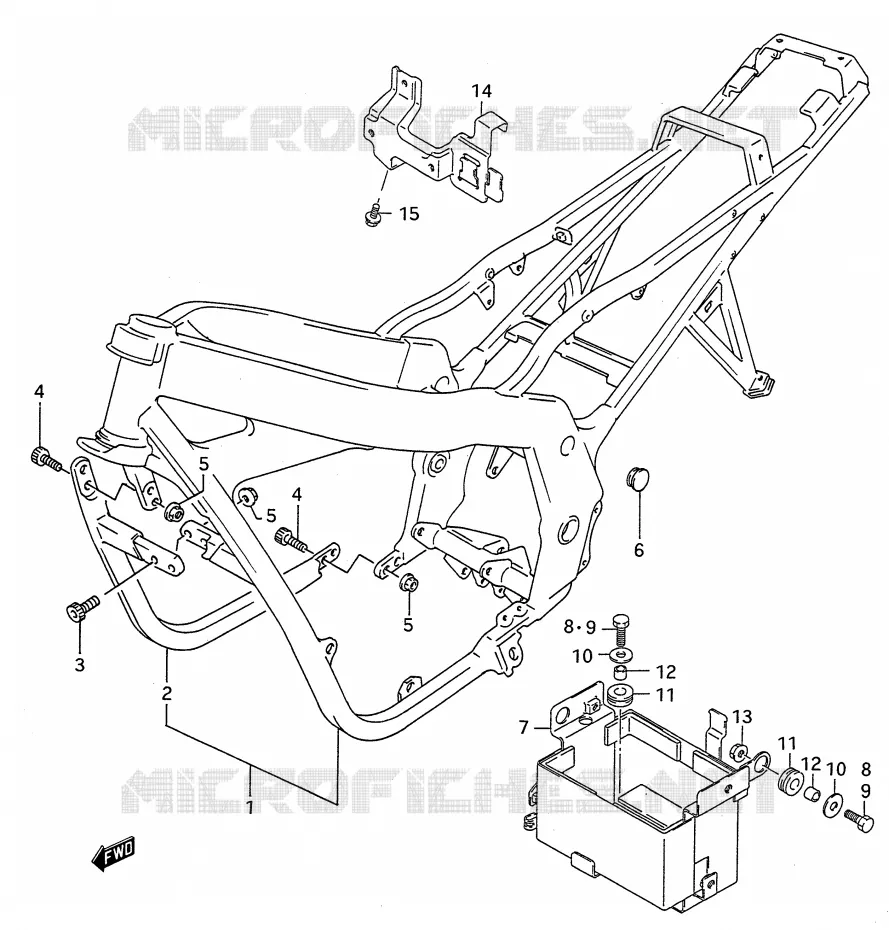

FRAME Suzuki MOTO 500 GS-E 1995 GS500EUS(E28)
1
1
1
1
1
2
2
3
4
4
4
4
5
5
5
6
7
7
7
7
8
8
8
8
9
9
10
10
11
11
11
11
12
12
12
12
13
13
14
15
1
41102-01830-0FP
FRAME SET (SILVER)

41102-01820-0FP  

41102018200FP
Not available
1
FRAME SET (SILVER)

41102-01840-0FP   41102018400FP

41102018400FP
Not available
1
FRAME SET (SILVER)

41102-01860-0FP   41102018600FP

41102018600FP
Not available
1
DISCONTINUE
FRAME SET (SILVER)

41102-01870-13L  

411020187013L
Not available
1
DISCONTINUE
FRAME SET (GRAY)

41102-01871-17U   411020187117U

411020187117U
Not available
2
TUBE, FRAME DOWN (SILVER)

41140-01D00-0FP   4114001D000FP

4114001D000FP
Not available
2
.TUBE, FRAME DOWN (SILVER)

41140-01D20-0FP   4114001D200FP

4114001D200FP
Not available
3
BOLT<br />BOLT, UPPER
BOLT
BOLT, UPPER

07130-10357-000   0713010357000

0713010357000

Unit Price

4
BOLT

01550-10357-000   0155010357000

0155010357000

Unit Price

4
BOLT

07130-10307-000   0713010307000

0713010307000

Unit Price

5
NUT
NUT

08319-31107-000   0831931107000

0831931107000

Unit Price

6
CAP, BODY FRAME
CAP

43585-01D00-000   4358501D00000

4358501D00000

Unit Price

7
HOLDER, BATTERY

41540-01D10-000   4154001D10000

4154001D10000
Not available
7
DISCONTINUE

41540-01D20-000  

4154001D20000
Not available
8
BOLT

01500-06163-000  

01500-0616A-000
 0150006163000

Unit Price

8
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

9
BOLT

09116-06083-000  

09116-06167-000
 0911606083000

Unit Price

10
WASHER 6.5X20X1.6

09160-06059-000  

09160-06088-000
 0916006059000

Unit Price

11
CUSHION (8.5X20X8)

09320-08007-000  

09320-08510-000
 0932008007000

Unit Price

12
FENDER FRONT SPACER<br />SPACER
FENDER FRONT SPACER
SPACER

09180-06038-000   0918006038000

0918006038000

Unit Price

12
SPACER

09180-06103-000   0918006103000

0918006103000
Not available
13
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

14
DISCONTINUE
HOLDER, ELECTRIC PARTS

47410-01D00-000   4741001D00000

4741001D00000
Not available
15
BOLT
BOLT

01550-06167-000   0155006167000

0155006167000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRAME of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GS-E 1995

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 500 GS-E 1995

Select your Suzuki 1995 model

500 GS-E 1995 GS500EUS(E28)

GSE 500

Suzuki GS-E

Displacement: 500 cc
Year: 1995
Model code GS500EUS(E28)
