Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

BATTERY

ELECTRICAL FOR SUZUKI GS-E 500 1996

SPEEDOMETER

Item numbers

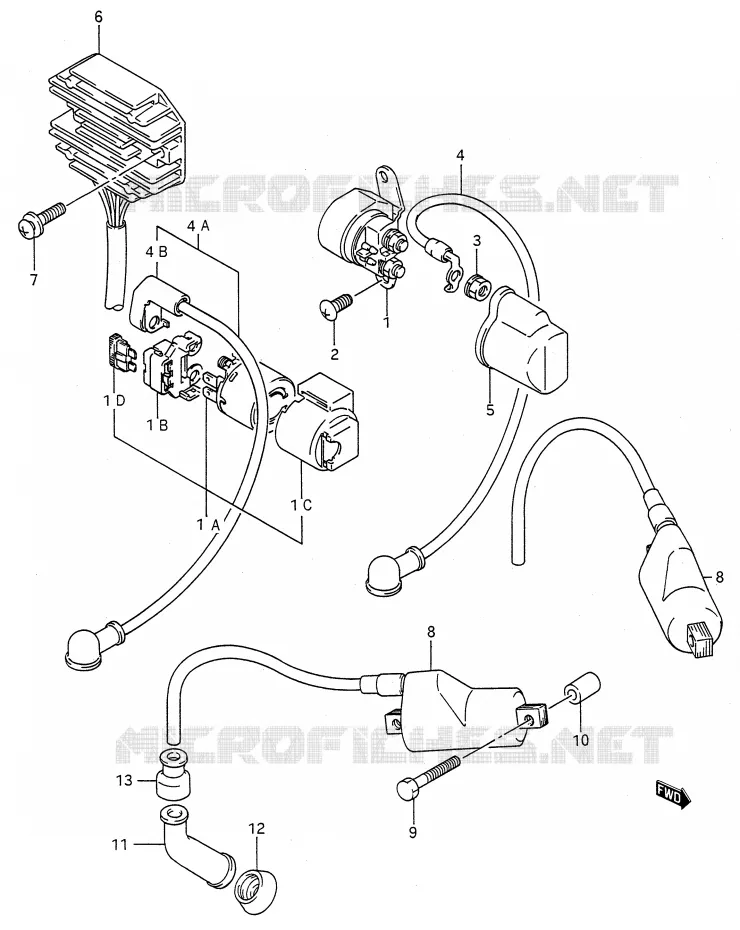

ELECTRICAL Suzuki MOTO 500 GS-E 1996 GS500ET(E28)
1D
1A
1
1B
1C
2
3
4B
4
4A
5
6
7
7
8
8
9
10
11
11
12
13
1
RELAY ASSY, STARTING MOTOR
RELAY ASSY, STARTING MOTOR

31800-49100-000   3180049100000

3180049100000

Unit Price

1A
RELAY ASSY, STARTING MOTOR

31800-01D00-000   3180001D00000

3180001D00000

Unit Price

1B
TERMINAL, RELAY

31841-01D00-000   3184101D00000

3184101D00000

Unit Price

1C
BRACKET, STARTING MOTOR RELAY
HOLDER, RELAY

31892-07D00-000   3189207D00000

3189207D00000

Unit Price

1D
FUSE (20A)
FUSE (20A)

09481-20101-000   0948120101000

0948120101000

Unit Price

2
SCREW

02112-06106-000  

02112-0610B-000
 0211206106000

Unit Price

3
NUT

08361-35066-000  

08361-35068-000
 0836135066000

Unit Price

4B
CAP, STARTER RELAY TERMINAL
CAP, STARTER RELAY

33624-01D10-000   3362401D10000

3362401D10000

Unit Price

4
WIRE, STARTER MOTOR LEAD

33850-01D00-000   3385001D00000

3385001D00000
Not available
4A
WIRE, STARTER MOTOR LEAD

33850-01D10-000   3385001D10000

3385001D10000
Not available
5
CAP, STARTER RELAY

31861-44500-000  

31861-46D00-000
 3186144500000

Unit Price

6
RECTIFIER ASSY

32800-33C00-000  

32800-33C01-000
 3280033C00000

Unit Price

7
SCREW

02142-06203-000  

02142-0620B-000
 0214206203000

Unit Price

7
SCREW

02152-06206-000   0215206206000

0215206206000
Not available
8
COIL ASSY, IGNITION

33410-01D00-000   3341001D00000

3341001D00000

Unit Price

9
BOLT

01500-06403-000  

01500-0640B-000
 0150006403000

Unit Price

10
DISCONTINUE
SPACER (6.2X12X18)

09180-06204-000   0918006204000

0918006204000
Not available
11
CAP, SPARK PLUG
CAP ASSY, SPARK PLUG

33510-38B00-000   3351038B00000

3351038B00000

Unit Price

11
SPARK PLUG CAP

33510-22010-000   3351022010000

3351022010000
Not available
12
SEAL, SPARK PLUG

33541-24510-000  

33541-47D00-000
 3354124510000

Unit Price

13
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GS-E 1996
