TAIL LIGHT

WIRING HARNESS FOR SUZUKI GS-E 500 1998

SWITCHES

Item numbers

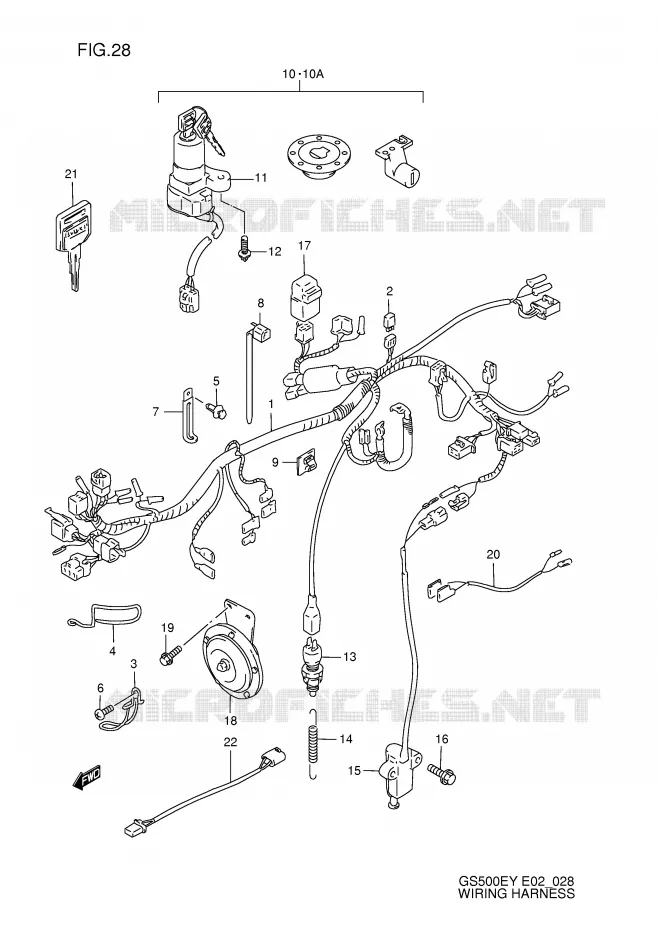

WIRING HARNESS Suzuki MOTO 500 GS-E 1998 GS500EW(E2)
1
1
2
3
4
5
6
7
7
7
8
8
9
10
10A
11
11
12
13
14
15
15
15
16
17
18
19
20
21
22
1
DISCONTINUE
HARNESS, WIRING

36610-01D31-000   3661001D31000

3661001D31000
Not available
1
HARNESS, WIRING

36610-01D40-000   3661001D40000

3661001D40000
Not available
2
DIODE
DIODE

36611-38A00-000  

36611-38A10-000
 3661138A00000

Unit Price

3
PROTECTOR
PROTECTOR, WIRING HARNESS

36611-01D00-000   3661101D00000

3661101D00000

Unit Price

4
PROTECTOR
PROTECTOR, WIRING HARNESS

36611-01D10-000   3661101D10000

3661101D10000

Unit Price

5
CLIP (BLACK)
CLIP (BLACK)

09409-07305-5PK   09409073055PK

09409073055PK

Unit Price

6
SCREW

02142-06123-000  

02142-0612B-000
 0214206123000

Unit Price

7
CLAMP(L:65)
CLAMP(L:65)

09404-06432-000  

09404-06039-000
 0940406432000

Unit Price

7
CLAMP(L:80)
CLAMP(L:80)

09404-06434-000  

09404-06036-000
 0940406434000

Unit Price

7
CLAMP (L:82)
CLAMP (L:82)

09404-08206-000   0940408206000

0940408206000

Unit Price

8
BAND,WIRING HARNESS<br />CLAMP (L:125)
BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

8
CLAMP, WIRING HARNESS

09407-18403-000  

09407-18402-000
 0940718403000

Unit Price

9
CLAMP

09403-06310-000   0940306310000

0940306310000

Unit Price

10
DISCONTINUE
LOCK SET

37000-01840-000   3700001840000

3700001840000
Not available
10A
LOCK SET

37000-01860-000   3700001860000

3700001860000
Not available
11
37100-26D04

37100-26D02-000  

3710026D02000
Not available
11
LOCK ASSY, STEERING

37100-26D11-000   3710026D11000

3710026D11000
Not available
12
SCREW(6X18)<br />BOLT
SCREW(6X18)
BOLT

09139-06026-000   0913906026000

0913906026000

Unit Price

13
SWITCH ASSY, STOP LAMP
SWITCH ASSY, STOP LAMP

37740-24A00-000   3774024A00000

3774024A00000

Unit Price

14
SPRING
SPRING

09443-06042-000   0944306042000

0944306042000

Unit Price

15
37840-01D01

37840-01D01-000  

3784001D01000
Not available
15
SWITCH ASSY, SIDE STAND

37840-01D10-000   3784001D10000

3784001D10000
Not available
16
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

17
RELAY ASSY<br />RELAY ASSY, SIDE STAND
RELAY ASSY
RELAY ASSY, SIDE STAND

38740-24X50-000   3874024X50000

3874024X50000

Unit Price

18
DISCONTINUE
HORN ASSY

38500-01D10-000  

3850001D10000
Not available
19
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

20
DISCONTINUE
WIRE, CLUTCH SWITCH

36852-19D00-000   3685219D00000

3685219D00000
Not available
21
KEY, BLANK
KEY, BLANK

37146-26D10-000   3714626D10000

3714626D10000

Unit Price

22
WIRE, AIR SOLENOID

36852-01D40-000   3685201D40000

3685201D40000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
