CARBURETOR FOR SUZUKI GS-E 500 2000

CARBURETOR (MODEL W / X / Y E4)

Item numbers

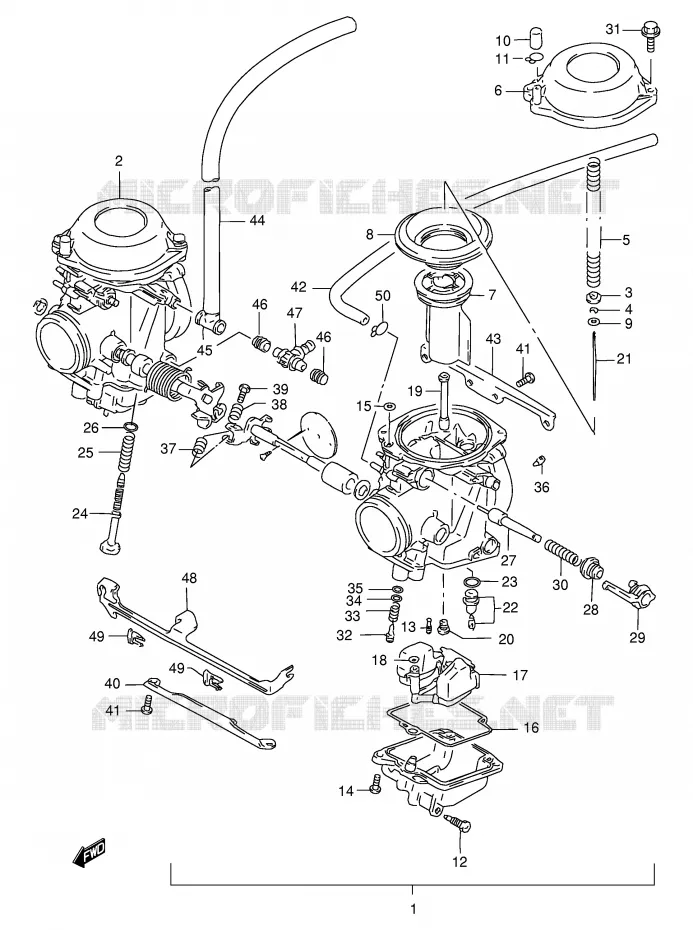

CARBURETOR Suzuki MOTO 500 GS-E 2000 GS500EUY(E2)
1
1
1
1
1
1
1
1
1
2
2
2
2
2
2
2
2
2
2
3
4
5
5
6
6
6
7
7
8
8
9
10
10
11
11
12
13
13
13
14
15
16
17
18
19
20
20
20
20
20
20
20
20
20
20
21
21
21
21
22
22
23
24
25
26
27
28
29
30
31
32
32
32
32
32
33
34
35
36
36
36
37
38
39
40
41
41
42
43
44
45
46
46
47
48
49
49
50
1
CARBURETOR ASSY, LH

13201-02D10-000   1320102D10000

1320102D10000
Not available
1
CARBURETOR ASSY, LH

13201-02D21-000   1320102D21000

1320102D21000
Not available
1
CARBURETOR ASSY, LH

13201-02D50-000   1320102D50000

1320102D50000
Not available
1
CARBURETOR ASSY, LH

13201-02D61-000   1320102D61000

1320102D61000
Not available
1
CARBURETOR ASSY, LH

13201-02D70-000   1320102D70000

1320102D70000
Not available
1
CARBURETOR ASSY, LH

13201-02D72-000   1320102D72000

1320102D72000
Not available
1
CARBURETOR ASSY, LH

13201-02D81-000   1320102D81000

1320102D81000
Not available
1
CARBURETOR ASSY, LH

13201-02DA0-000   1320102DA0000

1320102DA0000
Not available
1
CARBURETOR ASSY, LH

13201-02DB1-000   1320102DB1000

1320102DB1000
Not available
2
CARBURETOR ASSY, RH

13202-02D10-000   1320202D10000

1320202D10000
Not available
2
CARBURETOR ASSY, RH

13202-02D21-000   1320202D21000

1320202D21000
Not available
2
CARBURETOR ASSY, RH

13202-02D50-000   1320202D50000

1320202D50000
Not available
2
DISCONTINUE
CARBURETOR ASSY, RH

13202-02D61-000   1320202D61000

1320202D61000
Not available
2
CARBURETOR ASSY, RH

13202-02D71-000   1320202D71000

1320202D71000
Not available
2
CARBURETOR ASSY, RH

13202-02D72-000   1320202D72000

1320202D72000
Not available
2
CARBURETOR ASSY, RH

13202-02D80-000   1320202D80000

1320202D80000
Not available
2
CARBURETOR ASSY, RH

13202-02D81-000   1320202D81000

1320202D81000
Not available
2
CARBURETOR ASSY, RH

13202-02DA0-000   1320202DA0000

1320202DA0000
Not available
2
CARBURETOR ASSY, RH

13202-02DB1-000   1320202DB1000

1320202DB1000
Not available
3
RING<br />WASHER
RING
WASHER

13382-42A00-000   1338242A00000

1338242A00000

Unit Price

4
E RING
E RING

13394-40D20-000   1339440D20000

1339440D20000

Unit Price

5
SPRING
SPRING

13417-42A00-000   1341742A00000

1341742A00000

Unit Price

5
SPRING

13417-06C00-000   1341706C00000

1341706C00000
Not available
6
COVER, DIAPHRAGM

13502-01D00-000   1350201D00000

1350201D00000

Unit Price

6
COVER, DIAPHRAGM

13502-02D00-000   1350202D00000

1350202D00000
Not available
6
COVER, DIAPHRAGM

13502-45B10-000   1350245B10000

1350245B10000
Not available
7
DISCONTINUE
VALVE, PISTON

13501-01D00-000   1350101D00000

1350101D00000
Not available
7
VALVE, PISTON

13501-02D10-000   1350102D10000

1350102D10000
Not available
8
DIAPHRAGM
DIAPHRAGM

13507-17C01-000  

13507-17C02-000
 1350717C01000

Unit Price

8
DIAPHRAGM

13507-44B00-000  

13507-44B01-000
 1350744B00000

Unit Price

9
RING
RING

13387-47010-000   1338747010000

1338747010000

Unit Price

10
CAP
CAP

13508-17C00-000   1350817C00000

1350817C00000

Unit Price

11
CLIP
CLIP

13671-05A40-000   1367105A40000

1367105A40000

Unit Price

12
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

13
JET,PILOT<br />JET, PILOT (40)
JET, PILOT
JET, PILOT (40)

09492-40014-000   0949240014000

0949240014000

Unit Price

13
JET, PILOT
JET, PILOT (42.5)

09492-42010-000   0949242010000

0949242010000

Unit Price

14
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

15
O RING
O RING

13509-17C00-000   1350917C00000

1350917C00000

Unit Price

16
GASKET,FLOAT CAHMBER<br />GASKET, FLOAT CHAMBER
GASKET, FLOAT CAHMBER
GASKET, FLOAT CHAMBER

13258-44B00-000   1325844B00000

1325844B00000

Unit Price

17
DISCONTINUE
FLOAT ASSY

13240-01D00-000   1324001D00000

1324001D00000
Not available
18
O RING
O RING

13374-46710-000   1337446710000

1337446710000

Unit Price

19
DISCONTINUE
JET, NEEDLE (0-2)

09494-00748-000   0949400748000

0949400748000
Not available
20
JET, MAIN
JET, MAIN (115)

09491-23011-000   0949123011000

0949123011000

Unit Price

20
JET, MAIN
JET, MAIN (117.5)

09491-23017-000   0949123017000

0949123017000

Unit Price

20
JET,MAIN<br />JET, MAIN (122.5),RH
JET, MAIN
JET, MAIN (122.5), RH

09491-24013-000   0949124013000

0949124013000

Unit Price

20
JET, MAIN #120
JET, MAIN (120), LH

09491-24016-000   0949124016000

0949124016000

Unit Price

20
JET, MAIN
JET, MAIN (125), LH

09491-25010-000   0949125010000

0949125010000

Unit Price

20
JET, MAIN
JET, MAIN (130), LH

09491-26011-000   0949126011000

0949126011000

Unit Price

20
JET, MAIN
JET, MAIN (127.5), RH

09491-25011-000   0949125011000

0949125011000

Unit Price

21
NEEDLE JET
NEEDLE, JET (5DH9-3)

13383-01D10-000   1338301D10000

1338301D10000

Unit Price

22
VALVE ASSY, NEEDLE

13370-44B00-000  

13370-02D01-000
 1337044B00000

Unit Price

23
O RING, NEEDLE VALVE SEAT

13374-44080-000  

13374-35C00-000
 1337444080000

Unit Price

24
DISCONTINUE<br />ADJUSTER
DISCONTINUE
ADJUSTER

13267-14D10-000   1326714D10000

1326714D10000
Not available
25
SPRING
SPRING

13375-14D10-000   1337514D10000

1337514D10000

Unit Price

26
WASHER
WASHER

13427-38300-000   1342738300000

1342738300000

Unit Price

27
DISCONTINUE
PLUNGER ASSY

13411-01D00-000   1341101D00000

1341101D00000
Not available
28
CAP,STARTER
CAP, STARTER

13418-17C00-000  

13418-17C01-000
 1341817C00000

Unit Price

29
HOLDER, GUIDE
HOLDER, GUIDE

13418-17C10-000   1341817C10000

1341817C10000

Unit Price

30
SPRING
SPRING

13417-09110-000   1341709110000

1341709110000

Unit Price

31
SCREW

02112-75163-000  

02112-7516A-000
 0211275163000

Unit Price

32
SCREW,PILOT<br />SCREW, PILOT (1 5/8)
SCREW, PILOT
SCREW, PILOT (1 5/8)

13279-47070-000   1327947070000

1327947070000

Unit Price

33
SPRING
SPRING

13268-47070-000   1326847070000

1326847070000

Unit Price

34
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

35
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

36
JET, AIR
JET, AIR (1.2)

09493-24007-000   0949324007000

0949324007000

Unit Price

36
JET, AIR (1.3)
JET, AIR (1.3)

09493-26004-000   0949326004000

0949326004000

Unit Price

36
JET,PILOT AIR,1.4<br />JET, AIR (1.4)
JET, PILOT AIR, 1.4
JET, AIR (1.4)

09493-28006-000   0949328006000

0949328006000

Unit Price

37
SPRING, THROTTLE SCREW

13268-96110-000  

13268-96111-000
 1326896110000

Unit Price

38
SPRING
SPRING

13271-44B00-000   1327144B00000

1327144B00000

Unit Price

39
SCREW
SCREW

13267-44B00-000   1326744B00000

1326744B00000

Unit Price

40
DISCONTINUE
PLATE

13628-01D00-000   1362801D00000

1362801D00000
Not available
41
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

42
DISCONTINUE
HOSE (5X9X350)

13684-01D10-000  

1368401D10000
Not available
43
DISCONTINUE
PLATE

13628-01D10-000   1362801D10000

1362801D10000
Not available
44
HOSE(7X11X600)
HOSE(7X11X600)

09354-70113-600  

09355-70132-600
 0935470113600

Unit Price

45
HOSE
HOSE

13684-20C10-000   1368420C10000

1368420C10000

Unit Price

46
SEAL
SEAL

13673-44B00-000   1367344B00000

1367344B00000

Unit Price

47
NIPPLE
NIPPLE

13685-44B00-000   1368544B00000

1368544B00000

Unit Price

48
DISCONTINUE
LEVER

13413-01D00-000   1341301D00000

1341301D00000
Not available
49
HOLDER
HOLDER

13439-17C00-000   1343917C00000

1343917C00000

Unit Price

50
CLIP

09401-08410-000  

0940108410000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
