TRANSMISSION FOR SUZUKI GS-E 500 2001

GEAR SHIFTING ASSY

Item numbers

SHAFT, COUNTER
COUNTERSHAFT (NT:13)

24121-01D01-000 2412101D01000

$273,97

Unit Price

GEAR, 2ND DRIVE (NT:18)

24221-44001-000 2422144001000

$107,97

Unit Price

GEAR, 3RD & 4TH DRIVE

24231-01D11-000

24231-20F10-000

$152,97

Unit Price

GEAR, 5TH DRIVE (NT:26)

24251-01D00-000 2425101D00000

Not available

BUSH

24252-19F00-000 2425219F00000

$17,97

Unit Price

GEAR, 6TH DRIVE
GEAR, 6TH DRIVE (NT:27)

24260-01D01-000 2426001D01000

$121,97

Unit Price

WASHER, 5TH DRIVE GEA
WASHER (25X34X1.0)

09181-25167-000 0918125167000

$5,97

Unit Price

DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000 0938025010000

$5,97

Unit Price

BEARING(25X62X17)
BEARING, RH (25X62X17)

09262-25051-000 0926225051000

$84,97

Unit Price

C RING

09390-62012-000 0939062012000

$11,97

Unit Price

BEARING, LH (20X34X20)

09263-20025-000 0926320025000

Not available

PIN 7 X 12
PIN

04221-07129-000 0422107129000

$3,97

Unit Price

PLATE, COUNTERSHAFT BEARING
HOLDER, BEARING

24741-44102-000 2474144102000

$17,97

Unit Price

SCREW
SCREW (6X16)

09126-06014-000 0912606014000

$3,97

Unit Price

SHAFT, DRIVE
DRIVESHAFT

24131-01D00-000 2413101D00000

$228,97

Unit Price

GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN (NT:32)

24310-44001-000 2431044001000

$126,97

Unit Price

WASHER
WASHER (20X34X1)

09181-20251-000 0918120251000

$5,97

Unit Price

GEAR, 2ND DRIVEN (NT:32)

24321-44005-000 2432144005000

Not available

BUSH

09301-25001-000

24322-19F00-000

$21,97

Unit Price

DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000 0938025010000

$5,97

Unit Price

GEAR, 3RD DRIVEN
GEAR, 3RD DRIVEN (NT:29)

24331-44003-000 2433144003000

$114,97

Unit Price

WASHER
WASHER (25.1X31X1.0)

09167-25012-000 0916725012000

$4,97

Unit Price

LOCK WASHER

09167-25013-000 0916725013000

$4,97

Unit Price

DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000 0938025010000

$5,97

Unit Price

GEAR, 4TH DRIVEN
GEAR, 4TH DRIVEN (NT:27)

24341-44003-000 2434144003000

$106,97

Unit Price

WASHER
WASHER (25.1X31X1.0)

09167-25012-000 0916725012000

$4,97

Unit Price

LOCK WASHER

09169-25001-000 0916925001000

$3,97

Unit Price

DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000 0938025010000

$5,97

Unit Price

DISCONTINUE
GEAR, 5TH DRIVEN (NT:25)

24351-44001-000 2435144001000

Not available

GEAR, 6TH DRIVEN (NT:23)

24361-44010-000 2436144010000

$155,97

Unit Price

C RING

09390-62012-000 0939062012000

$11,97

Unit Price

OIL SEAL
OIL SEAL (32X62X7)

09283-32015-000 0928332015000

$24,97

Unit Price

BEARING(20X34X17)
BEARING, RH (20X34X17)

09263-20027-000 0926320027000

$58,97

Unit Price

BEARING
BEARING, LH (25X62X17)

09262-25105-000 0926225105000

$99,97

Unit Price

OIL SEAL

09282-32002-000 0928232002000

$20,97

Unit Price

SPROCKET, ENGINE(16T)
SPROCKET, ENGINE (NT:16)

27511-01D01-000 2751101D01000

$55,97

Unit Price

SPACER

27531-01D10-000

27531-01D11-000

$34,97

Unit Price

CIRCLIP

08331-31256-000

08331-31259-000

$3,97

Unit Price

CHAIN(DID520VM, 110L)
CHAIN, DRIVE (DID520VM, 110LE)

27600-01C10-110 2760001C10110

$220,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

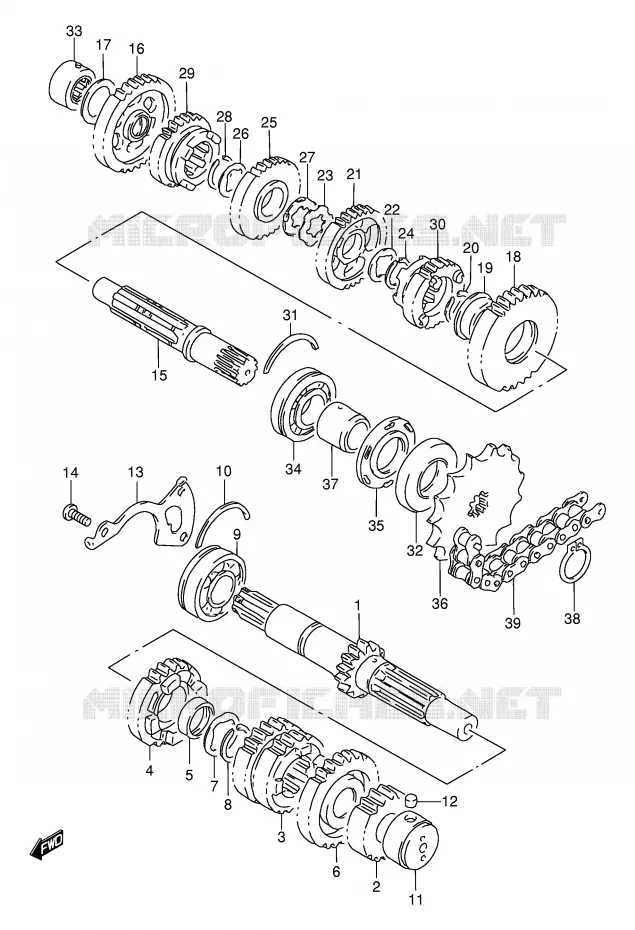

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
