CAMSHAFT - VALVES

TIMING FOR SUZUKI GS-E 500 2003

CARBURETOR (MODELE K3)

Item numbers

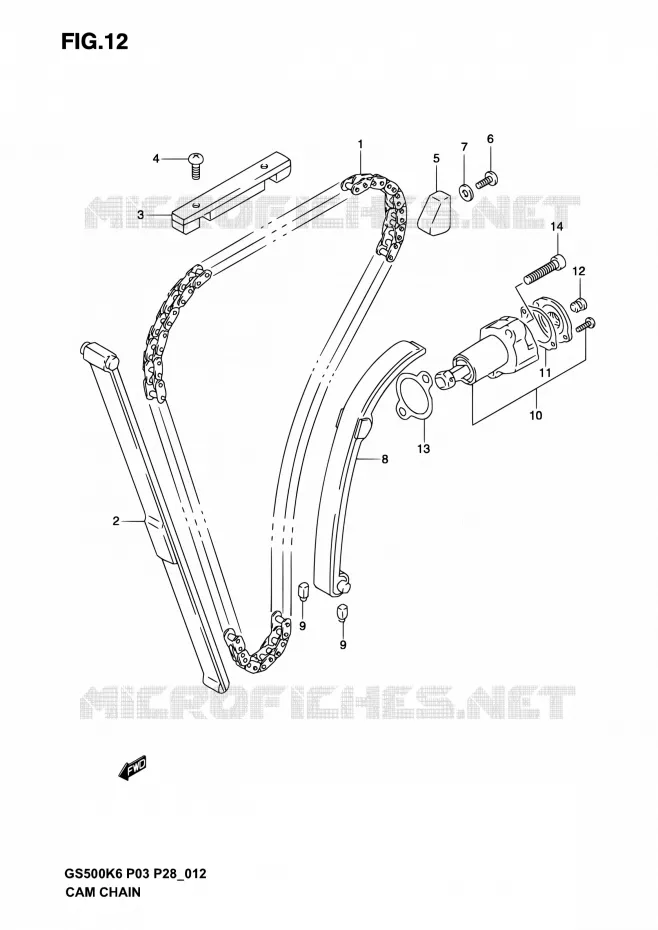

TIMING Suzuki MOTO 500 GS-E 2003 GS500 K3 (P03,P28,P33)
1
2
3
4
5
6
7
8
9
9
10
11
12
13
14
1
CHAIN, CAM SHAFT DRIVE (120L)

12760-45040-000   1276045040000

1276045040000

Unit Price

2
GUIDE, CAM CHAIN NO.1

12771-45052-000  

12771-45053-000
 1277145052000

Unit Price

3
GUIDE,CAM CHAIN<br />GUIDE, CAM CHAIN NO.2
GUIDE, CAM CHAIN
GUIDE, CAM CHAIN NO.2

12782-49200-000   1278249200000

1278249200000

Unit Price

4
SCREW

02112-05103-000  

02112-0510B-000
 0211205103000

Unit Price

5
GUIDE,CAM CHAIN<br />GUIDE, CAM CHAIN NO.3
GUIDE, CAM CHAIN
GUIDE, CAM CHAIN NO.3

12791-45040-000   1279145040000

1279145040000

Unit Price

6
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

7
GASKET<br />WASHER
GASKET
WASHER

09168-06023-000   0916806023000

0916806023000
Not available
8
TENSIONER, CAM CHAIN

12810-01D00-000  

12810-01D01-000
 1281001D00000

Unit Price

9
CUSHION, CAM CHAIN TENSIONER
CUSHION

12814-44101-000   1281444101000

1281444101000

Unit Price

10
ADJUSTER ASSY, TENSIONER
ADJUSTER ASSY, TENSIONER

12830-01D12-000   1283001D12000

1283001D12000

Unit Price

11
GASKET,ADJUSTER CAP<br />.GASKET
GASKET, ADJUSTER CAP
.GASKET

12838-38200-H17   1283838200H17

1283838200H17

Unit Price

12
PLUG,ADJUSTER<br />PLUG
PLUG, ADJUSTER
PLUG

12839-38200-000   1283938200000

1283938200000

Unit Price

13
GASKET,TENSIONER ADJUSTER<br />GASKET, ADJUSTER
GASKET, TENSIONER ADJUSTER
GASKET, ADJUSTER

12837-24A10-000   1283724A10000

1283724A10000

Unit Price

14
BOLT

07130-06253-000  

07130-0625B-000
 0713006253000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TIMING of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
