ELECTRICAL FOR SUZUKI GS-E 500 2003

SPEEDOMETER

Item numbers

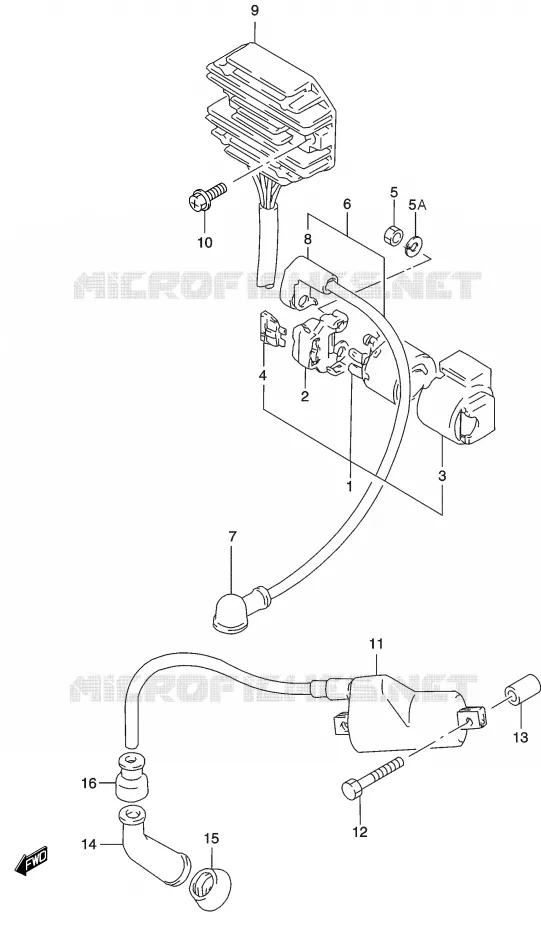

ELECTRICAL Suzuki MOTO 500 GS-E 2003 GS500HK3(P19)
1
2
3
4
5
5A
6
7
8
9
10
11
12
13
14
15
16
1
RELAY ASSY, STARTING MOTOR

31800-01D00-000   3180001D00000

3180001D00000

Unit Price

2
TERMINAL, RELAY

31841-01D00-000   3184101D00000

3184101D00000

Unit Price

3
BRACKET, STARTING MOTOR RELAY
HOLDER, RELAY

31892-07D00-000   3189207D00000

3189207D00000

Unit Price

4
FUSE, (20A)
FUSE, (20A)

09481-20101-000   0948120101000

0948120101000

Unit Price

5
NUT 6MM

D8310-00065-000  

08316-10063-000
 D831000065000

Unit Price

5A
WASHER 6
WASHER

D8321-51065-000  

D832151065000
Not available
6
WIRE, STARTER MOTOR LEAD

33810-01DA0-000   3381001DA0000

3381001DA0000

Unit Price

7
CAP,STARTER MOTOR LEAD<br />CAP, STARTER MOTOR
CAP, STARTER MOTOR LEAD
CAP, STARTER MOTOR

31861-48B10-000   3186148B10000

3186148B10000

Unit Price

8
CAP, STARTER RELAY TERMINAL
CAP, BATTERY PLUS

33624-01D10-000   3362401D10000

3362401D10000

Unit Price

9
RECTIFIER ASM
RECTIFIER ASSY

32800-01D00-000  

3280001D00000
Not available
10
SCREW

02162-06203-000  

02162-0620C-000
 0216206203000

Unit Price

11
COIL ASSY, IGNITION

33410-01D10-000   3341001D10000

3341001D10000
Not available
12
BOLT

D1507-06405-000  

01500-06403-000
 D150706405000

Unit Price

13
SPACER (6.2X12X16)
SPACER (6.2X12X16)

09180-06198-000   0918006198000

0918006198000

Unit Price

14
CAP ASSY, SPARK PLUG

33510-22010-000   3351022010000

3351022010000
Not available
15
SEAL, SPARK PLUG

33541-32410-000   3354132410000

3354132410000
Not available
16
SEAL, HIGH TENSION CORD
SEAL, HIGH TENSION CORD

33542-38B00-000   3354238B00000

3354238B00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the ELECTRICAL of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
