Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI GS-E 500 2003

GEAR SHIFTING ASSY 33 GS500UK3 P19

Item numbers

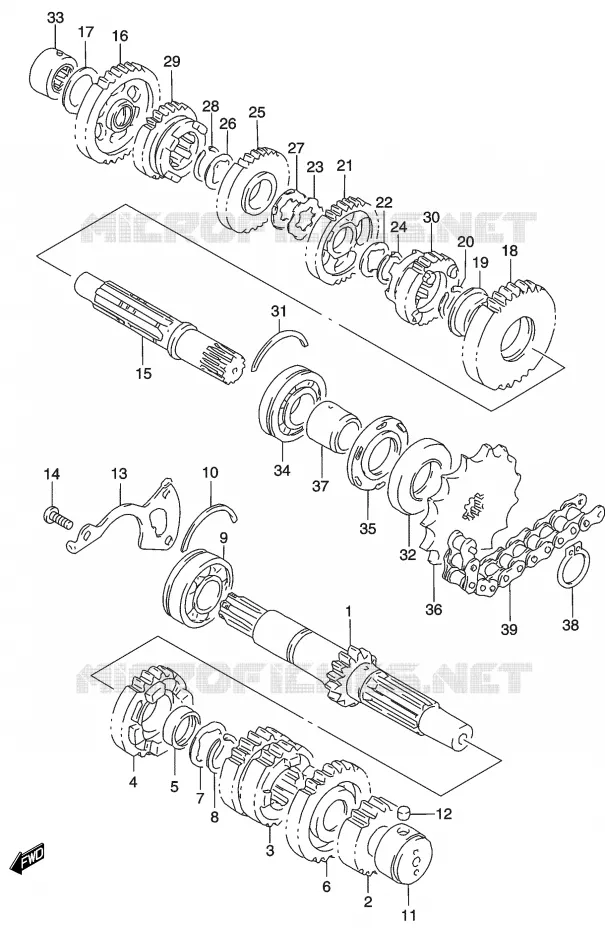

TRANSMISSION Suzuki MOTO 500 GS-E 2003 GS500K3(P19)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
1
SHAFT, COUNTER
COUNTERSHAFT (NT:13)

24121-01D01-000   2412101D01000

2412101D01000

Unit Price

2
GEAR, 2ND DRIVE (NT:18)

24221-44001-000   2422144001000

2422144001000

Unit Price

3
GEAR, 3RD & 4TH DRIVE

24231-01D11-000  

24231-20F10-000
 2423101D11000

Unit Price

4
GEAR, 5TH DRIVE(NT:26)

24251-20F01-000  

24251-20F02-000
 2425120F01000

Unit Price

5
BUSH
BUSH

24252-19F00-000   2425219F00000

2425219F00000

Unit Price

6
GEAR, 6TH DRIVE
GEAR, 6TH DRIVE (NT:27)

24260-01D01-000   2426001D01000

2426001D01000

Unit Price

7
WASHER,5TH DRIVE GEA<br />WASHER (25X34X1.0)
WASHER, 5TH DRIVE GEA
WASHER (25X34X1.0)

09181-25167-000   0918125167000

0918125167000

Unit Price

8
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

9
BEARING(25X62X17)<br />BEARING, RH (25X62X17)
BEARING(25X62X17)
BEARING, RH (25X62X17)

09262-25051-000   0926225051000

0926225051000

Unit Price

10
C RING
C RING

09390-62012-000   0939062012000

0939062012000

Unit Price

11
BEARING, LH (20X34X20)

09263-20025-000   0926320025000

0926320025000
Not available
12
PIN 7 X 12<br />PIN
PIN 7 X 12
PIN

04221-07129-000   0422107129000

0422107129000

Unit Price

13
PLATE, COUNTERSHAFT BEARING
HOLDER, BEARING

24741-44102-000   2474144102000

2474144102000

Unit Price

14
SCREW
SCREW (6X16)

09126-06014-000   0912606014000

0912606014000

Unit Price

15
SHAFT, DRIVE
DRIVESHAFT

24131-01D00-000   2413101D00000

2413101D00000

Unit Price

16
GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN (NT:32)

24310-44001-000   2431044001000

2431044001000

Unit Price

17
WASHER<br />WASHER (20X34X1)
WASHER
WASHER (20X34X1)

09181-20251-000   0918120251000

0918120251000

Unit Price

18
GEAR, 2ND DRIVEN.NT:32)

24321-20F00-000  

24321-20F01-000
 2432120F00000

Unit Price

19
BUSH

09301-25001-000  

24322-19F00-000
 0930125001000

Unit Price

20
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

21
GEAR, 3RD DRIVEN
GEAR, 3RD DRIVEN (NT:29)

24331-44003-000   2433144003000

2433144003000

Unit Price

22
WASHER<br />WASHER (25.1X31X1.0)
WASHER
WASHER (25.1X31X1.0)

09167-25012-000   0916725012000

0916725012000

Unit Price

23
LOCK WASHER
LOCK WASHER

09167-25013-000   0916725013000

0916725013000

Unit Price

24
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

25
GEAR, 4TH DRIVEN
GEAR, 4TH DRIVEN (NT:27)

24341-44003-000   2434144003000

2434144003000

Unit Price

26
WASHER<br />WASHER (25.1X31X1.0)
WASHER
WASHER (25.1X31X1.0)

09167-25012-000   0916725012000

0916725012000

Unit Price

27
LOCK WASHER
LOCK WASHER

09169-25001-000   0916925001000

0916925001000

Unit Price

28
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

29
DISCONTINUE
GEAR, 5TH DRIVEN (NT:25)

24351-44001-000   2435144001000

2435144001000
Not available
30
GEAR, 6TH DRIVEN (NT:23)

24361-44010-000   2436144010000

2436144010000

Unit Price

31
C RING
C RING

09390-62012-000   0939062012000

0939062012000

Unit Price

32
OIL SEAL
OIL SEAL (32X62X7)

09283-32015-000   0928332015000

0928332015000

Unit Price

33
BEARING(20X34X17)
BEARING, RH (20X34X17)

09263-20027-000   0926320027000

0926320027000

Unit Price

34
BEARING<br />BEARING, LH (25X62X17)
BEARING
BEARING, LH (25X62X17)

09262-25105-000   0926225105000

0926225105000

Unit Price

35
OIL SEAL

09282-32002-000   0928232002000

0928232002000

Unit Price

36
SPROCKET, ENGINE(16T)
SPROCKET, ENGINE (NT:16)

27511-01D01-000   2751101D01000

2751101D01000

Unit Price

37
SPACER

27531-01D10-000  

27531-01D11-000
 2753101D10000

Unit Price

38
CIRCLIP

08331-31256-000  

08331-31259-000
 0833131256000

Unit Price

39
CHAIN, DRIVE (DID520VM, 110LE)

27600-01C-10X110   2760001C10X110

2760001C10X110
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.

Genuine parts for Suzuki 500 GS-E 2003
