WIRING HARNESS (GS500K4 / K5 / K6 P28) REFER TO FIG. 28B (F- 9) FOR GS500FK4/K5/K6

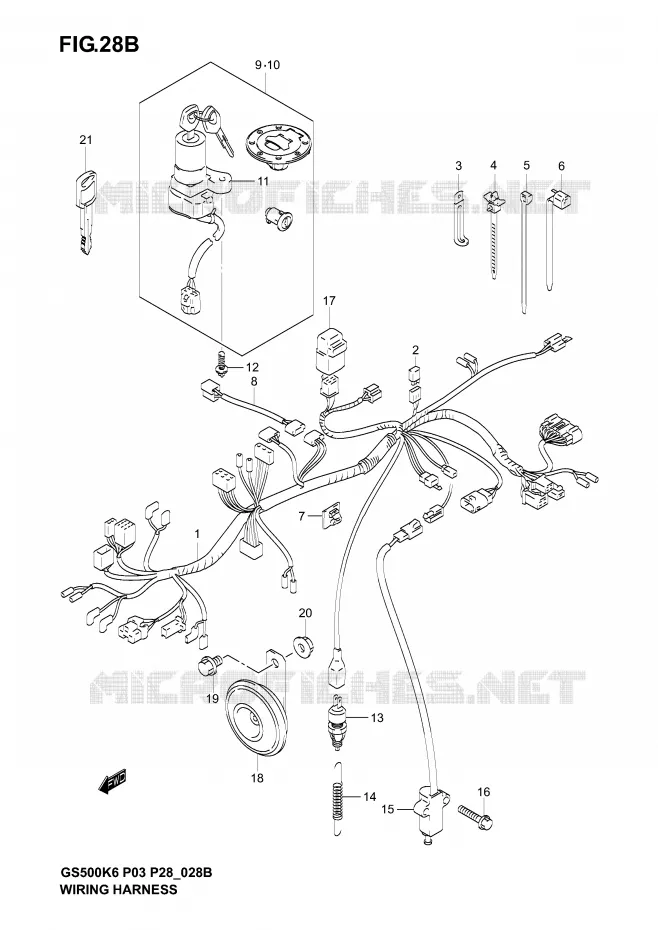

WIRING HARNESS (GS500FK4 / K5 / K6) FOR SUZUKI GS-E 500 2003

SWITCHES (MODEL K3 / K4 / K5) REFER TO FIG. 29A (F-11) FOR MODEL K6

Item numbers

DISCONTINUE
HARNESS, WIRING

36610-0BEJ0-000 366100BEJ0000

Not available

HARNESS, WIRING

36610-C0B-EN0J000 36610C0BEN0J000

Not available

36611-02E00
DIODE

36611-02E01-000 3661102E01000

Not available

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

CLAMP(L:65)

09404-06431-000

09404-06207-000

$3,97

Unit Price

CLAMP

09407-07E00-000

09407-11402-000

$3,97

Unit Price

CLAMP

D2436-01425-000 D243601425000

Not available

CLAMP

D9448-01885-000 D944801885000

Not available

CLAMP
CLAMP (L:235)

09407-25401-000 0940725401000

$8,97

Unit Price

CLAMP

09403-06310-000 0940306310000

$4,97

Unit Price

WIRE, AIR SOLENOID

36852-01D40-000 3685201D40000

$15,97

Unit Price

37000-01872

37000-01870-000

Not available

DISCONTINUE
LOCK SET

37000-01880-000 3700001880000

Not available

LOCK ASSY, STEERING

37100-01D40-000 3710001D40000

$165,97

Unit Price

SCREW(6X18)
BOLT

09139-06026-000 0913906026000

$3,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-24A00-000 3774024A00000

$19,97

Unit Price

SPRING

09443-06042-000 0944306042000

$5,97

Unit Price

37840-26X52

37840-26D00-000

Not available

BOLT

D1557-06305-000

01550-06303-000

$3,97

Unit Price

RELAY ASSY, SIDE STAND

38740-24B00-000 3874024B00000

Not available

DISCONTINUE
HORN ASSY

38500-0BE00-000 385000BE00000

Not available

BOLT

D1557-08125-000

01550-0812B-000

$4,97

Unit Price

NUT

D8316-10085-000 D831610085000

Not available

KEY, BLANK

37146-33E00-000 3714633E00000

$20,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WIRING HARNESS (GS500FK4/K5/K6) of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
