HEADLIGHT (MODEL K3) REFER TO FIG. 25A (E-11) FOR GS500K4/K5/K6 P28

HEADLIGHT (GS500K4 / K5 / K6 P28) FOR SUZUKI GS-E 500 2006

HEADLIGHT (GS500FK4 / K5 / K6)

Item numbers

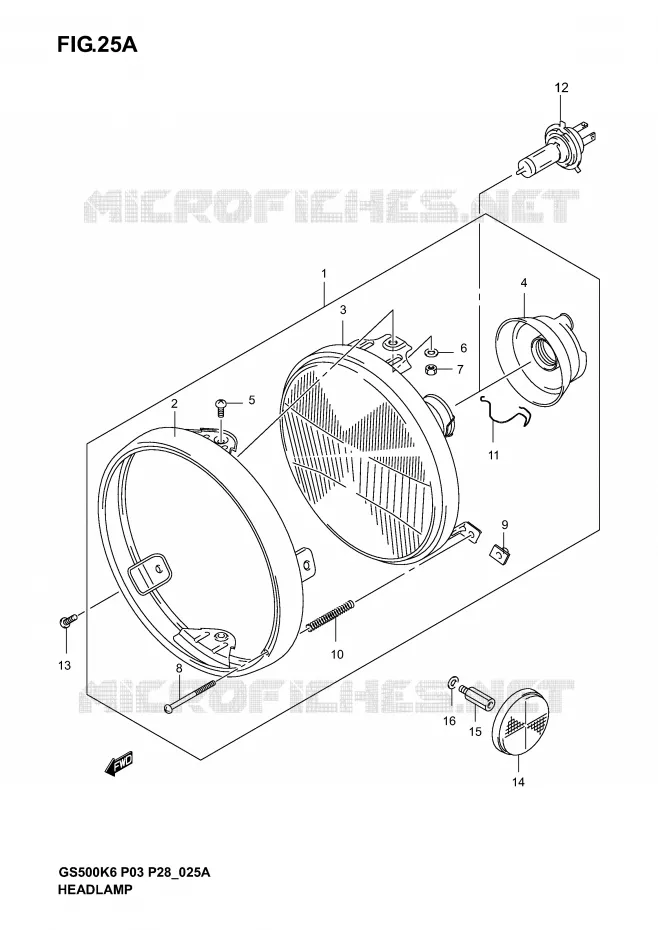

HEADLIGHT (GS500K4/K5/K6 P28) Suzuki MOTO 500 GS-E 2006 GS500K6(P3)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
HEADLAMP ASM
HEADLAMP ASSY

35100-01D80-999   3510001D80999

3510001D80999

Unit Price

2
RIM, HEADLAMP
RIM

35111-0BE00-000   351110BE00000

351110BE00000

Unit Price

3
DISCONTINUE
LAMP UNIT

35121-0BE00-000   351210BE00000

351210BE00000
Not available
4
COVER, SOCKET

35173-0BE00-000   351730BE00000

351730BE00000
Not available
5
SCREW

35181-0BE00-000   351810BE00000

351810BE00000
Not available
6
DISCONTINUE
LOCK WASHER

D8321-01045-000  

D832101045000
Not available
7
DISCONTINUE
NUT

D8310-00045-000  

D831000045000
Not available
8
SCREW, ADJUSTING

35151-0BE00-000   351510BE00000

351510BE00000
Not available
9
NUT

35152-0BE00-000   351520BE00000

351520BE00000
Not available
10
SPRING

35154-0BE00-000   351540BE00000

351540BE00000
Not available
11
SPRING

35174-0BE00-000   351740BE00000

351740BE00000
Not available
12
BULB(12V, 5W)
BULB (12V60/55W)

09471-12060-000  

0947112060000
Not available
13
SCREW

D2116-05125-000  

02112-0512A-000
 D211605125000

Unit Price

14
REFLECTOR,REFLEX FR<br />REFLEX REFLECTOR, FR SIDE
REFLECTOR, REFLEX FR
REFLEX REFLECTOR, FR SIDE

35950-14A00-000   3595014A00000

3595014A00000

Unit Price

15
BOLT

09119-05023-000   0911905023000

0911905023000

Unit Price

16
WASHER

D8322-01055-000  

08322-0105B-000
 D832201055000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HEADLIGHT (GS500K4/K5/K6 P28) of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
