MUFFLER

CLUTCH FOR SUZUKI GS-E 500 2007

TRANSMISSION

Item numbers

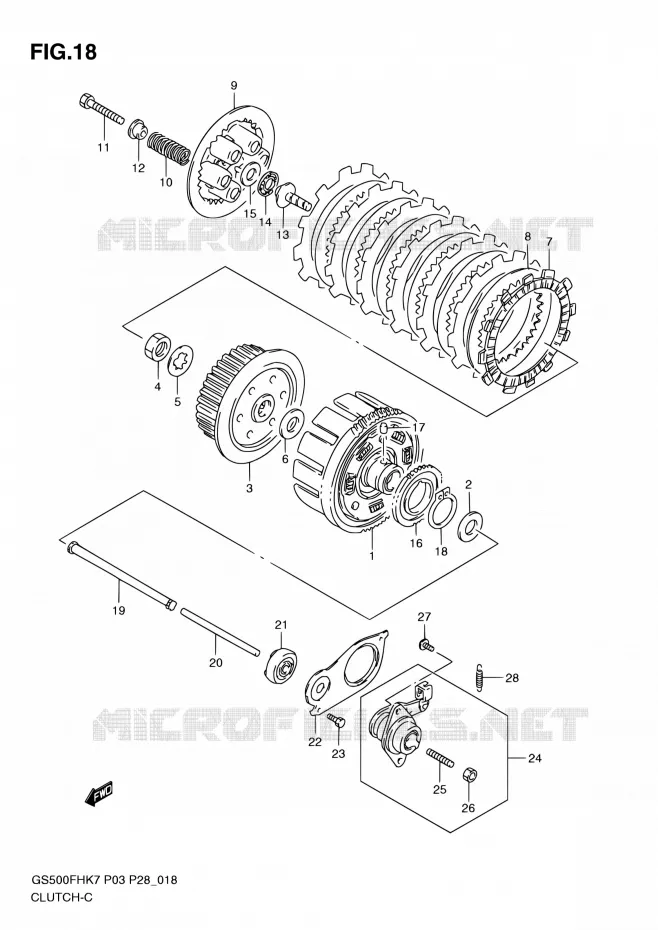

CLUTCH Suzuki MOTO 500 GS-E 2007 GS500H K7/GS500FH K7 (P03,P28,P33,P95)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
1
GEAR ASSY, PRI DRIVEN
GEAR, PRIMARY DRIVEN (NT:76)

21200-44102-000   2120044102000

2120044102000

Unit Price

2
SHIM,25X38X1.0<br />WASHER (25X38X1.0)
SHIM, 25X38X1.0
WASHER (25X38X1.0)

09181-25223-000   0918125223000

0918125223000

Unit Price

3
HUB,CLUTCH SLEEVE<br />HUB, SLEEVE
HUB, CLUTCH SLEEVE
HUB, SLEEVE

21411-44101-000   2141144101000

2141144101000

Unit Price

4
DRIVE SPROCKET NUT<br />NUT
DRIVE SPROCKET NUT
NUT

09140-20001-000   0914020001000

0914020001000

Unit Price

5
WASHER<br />WASHER (20.5X38X0.8)
WASHER
WASHER (20.5X38X0.8)

09167-20006-000   0916720006000

0916720006000

Unit Price

6
WASHER (20X44X3)

09160-20015-000   0916020015000

0916020015000

Unit Price

7
PLATE, CLUTCH DRIVE

21441-37400-000  

21441-37430-000
 2144137400000

Unit Price

8
PLATE,CLUTCH DRIVEN(T:1.6)<br />PLATE, DRIVEN
PLATE, CLUTCH DRIVEN(T:1.6)
PLATE, DRIVEN

21451-28C31-000   2145128C31000

2145128C31000

Unit Price

9
DISC,CLUTCH PRESSURE<br />DISK, PRESSURE
DISC, CLUTCH PRESSURE
DISK, PRESSURE

21462-14301-000   2146214301000

2146214301000

Unit Price

10
SPRING

09440-20019-000   0944020019000

0944020019000

Unit Price

11
BOLT(6X40)<br />BOLT
BOLT(6X40)
BOLT

09100-06145-000   0910006145000

0910006145000

Unit Price

12
SPACER,CLUTCH SLEEVE HUB<br />SPACER
SPACER, CLUTCH SLEEVE HUB
SPACER

21414-01D00-000   2141401D00000

2141401D00000

Unit Price

13
PIECE,CLUTCH PUSH<br />PIECE, PUSH
PIECE, CLUTCH PUSH
PIECE, PUSH

23121-44100-000   2312144100000

2312144100000

Unit Price

14
BEARING (15X28X2)
BEARING (15X28X2)

09263-15003-000   0926315003000

0926315003000

Unit Price

15
WASHER<br />WASHER (15.5X28X1)
WASHER
WASHER (15.5X28X1)

09160-15045-000   0916015045000

0916015045000

Unit Price

16
GEAR, OIL PUMP DRIVE (NT:39)

16321-01D10-000   1632101D10000

1632101D10000

Unit Price

17
OIL PUMP DRIVEN PIN<br />PIN
OIL PUMP DRIVEN PIN
PIN

09261-06002-000   0926106002000

0926106002000

Unit Price

18
CIRCLIP
CIRCLIP

08331-31383-000   0833131383000

0833131383000

Unit Price

19
ROD, PUSH RH
ROD, PUSH RH

23110-44111-000   2311044111000

2311044111000

Unit Price

20
ROD,CLUTCH PUSH,L<br />ROD, PUSH LH
ROD, CLUTCH PUSH, L
ROD, PUSH LH

23111-24A01-000   2311124A01000

2311124A01000

Unit Price

21
OIL SEAL
OIL SEAL (6X34X10)

09285-06011-000   0928506011000

0928506011000

Unit Price

22
RETAINER, PUSH ROD OIL SEAL
HOLDER, OIL SEAL

23117-44102-000   2311744102000

2311744102000

Unit Price

23
BOLT
BOLT

01500-0612B-000   015000612B000

015000612B000

Unit Price

24
SCREW ASSY, CLUTCH RELEASE
SCREW ASSY, RELEASE

23200-01D00-000   2320001D00000

2320001D00000

Unit Price

25
.SCREW
.SCREW

09134-06010-000   0913406010000

0913406010000

Unit Price

26
.NUT
.NUT

08310-00067-000   0831000067000

0831000067000

Unit Price

27
SCREW

03141-0616B-000   031410616B000

031410616B000

Unit Price

28
CL REL ARM SPRING<br />SPRING
CL REL ARM SPRING
SPRING

09443-08001-000   0944308001000

0944308001000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CLUTCH of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
