STARTER MOTOR CLUTCH

CAMSHAFT - VALVES FOR SUZUKI GS-E 500 2011

TIMING

Item numbers

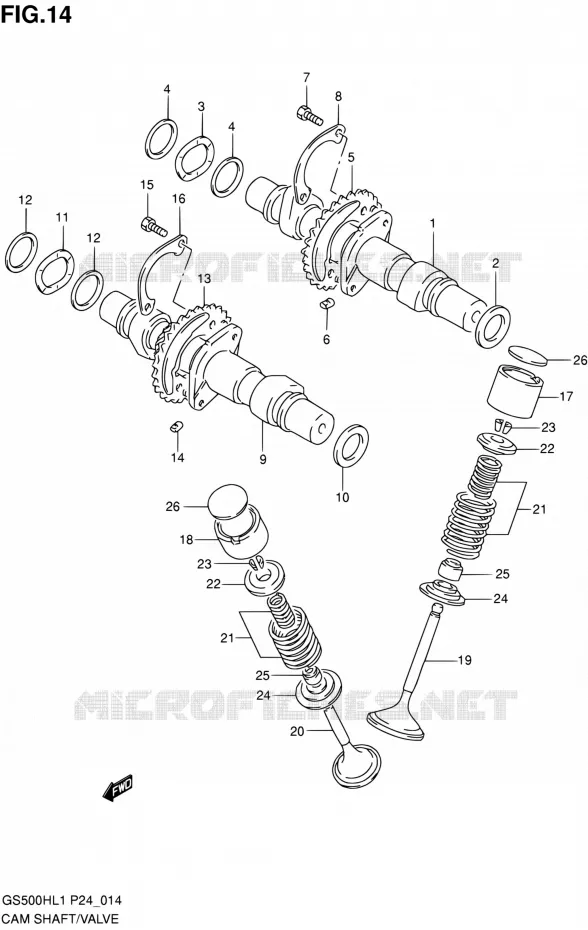

CAMSHAFT - VALVES Suzuki MOTO 500 GS-E 2011 GS500HL1(P24)
1
2
3
4
4
5
6
7
8
9
10
10
10
10
11
12
12
13
14
15
16
17
18
19
20
21
21
22
22
23
23
24
24
25
25
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
26
1
CAMSHAFT SET, INTAKE

12710-01831-000   1271001831000

1271001831000

Unit Price

2
WASHER<br />.SHIM (22X30X1)
WASHER
.SHIM (22X30X1)

09181-22167-000   0918122167000

0918122167000

Unit Price

3
.WASHER, WAVE

09164-22012-000   0916422012000

0916422012000

Unit Price

4
SHIM(0.7)
.SHIM (22X28X0.7)

09181-22132-000   0918122132000

0918122132000

Unit Price

5
SPROCKET, CAMSHAFT INTAKE
SPROCKET, INTAKE (NT:30)

12740-45042-000   1274045042000

1274045042000

Unit Price

6
PIN, SPROCKET
PIN

12748-44000-000   1274844000000

1274844000000

Unit Price

7
BOLT (6X12.5)

09100-06169-000   0910006169000

0910006169000

Unit Price

8
WASHER, SPROCKET
WASHER

12747-44001-000   1274744001000

1274744001000

Unit Price

9
CAMSHAFT SET, EXHAUST

12720-01841-000   1272001841000

1272001841000

Unit Price

10
WASHER<br />.WASHER (T:1.0)
WASHER
.WASHER (T:1.0)

09181-22167-000   0918122167000

0918122167000

Unit Price

10
.WASHER (T:1.1)

09181-22074-000   0918122074000

0918122074000
Not available
10
.WASHER (T:1.2)

09181-22075-000   0918122075000

0918122075000
Not available
10
.WASHER (T:1.3)

09181-22076-000   0918122076000

0918122076000
Not available
11
.WASHER, WAVE

09164-22012-000   0916422012000

0916422012000

Unit Price

12
SHIM(0.7)
.WASHER (T: 0.7)

09181-22132-000   0918122132000

0918122132000

Unit Price

13
SPROCKET, EXHAUST CAM(NT:30)
SPROCKET, EXHAUST (NT:30)

12750-45041-000   1275045041000

1275045041000

Unit Price

14
PIN, SPROCKET
PIN

12748-44000-000   1274844000000

1274844000000

Unit Price

15
BOLT (6X12.5)

09100-06169-000   0910006169000

0910006169000

Unit Price

16
WASHER, SPROCKET
WASHER

12747-44001-000   1274744001000

1274744001000

Unit Price

17
TAPPET
TAPPET, INTAKE

12891-15501-000   1289115501000

1289115501000

Unit Price

18
TAPPET
TAPPET

12891-45001-000  

12891-15500-000
 1289145001000

Unit Price

19
VALVE, INTAKE

12911-01D00-000   1291101D00000

1291101D00000

Unit Price

20
VALVE, EXHAUST

12912-01D00-000   1291201D00000

1291201D00000

Unit Price

21
SPRING SET, VALVE

12920-44110-000   1292044110000

1292044110000

Unit Price

22
RETAINER,VALVE SPRING<br />RETAINER, SPRING
RETAINER, VALVE SPRING
RETAINER, SPRING

12931-45001-000   1293145001000

1293145001000

Unit Price

23
COTTER, VALVE
COTTER, VALVE

12932-45010-000   1293245010000

1293245010000

Unit Price

24
SEAT, VALVE SPRING
SEAT, SPRING

12933-45001-000   1293345001000

1293345001000

Unit Price

25
SEAL,OIL(7X14.4X9)<br />OIL SEAL (7X14.4X9)
SEAL, OIL(7X14.4X9)
OIL SEAL (7X14.4X9)

09289-07002-000   0928907002000

0928907002000

Unit Price

26
SHIM, TAPPET (T:2.15)
SHIM, TAPPET (T:2.15)

12892-45000-215   1289245000215

1289245000215

Unit Price

26
SHIM, TAPPET (T:2.20)
SHIM, TAPPET (T:2.20)

12892-45000-220   1289245000220

1289245000220

Unit Price

26
SHIM, TAPPET (T:2.25)

12892-45000-225   1289245000225

1289245000225

Unit Price

26
SHIM, TAPPET (T:2.30)

12892-45000-230   1289245000230

1289245000230

Unit Price

26
SHIM, TAPPET (T:2.35)
SHIM, TAPPET (T:2.35)

12892-45000-235   1289245000235

1289245000235

Unit Price

26
SHIM, TAPPET (T:2.40)
SHIM, TAPPET (T:2.40)

12892-45000-240   1289245000240

1289245000240

Unit Price

26
SHIM, TAPPET (T:2.45)
SHIM, TAPPET (T:2.45)

12892-45000-245   1289245000245

1289245000245

Unit Price

26
SHIM, TAPPET (T:2.50)
SHIM, TAPPET (T:2.50)

12892-45000-250   1289245000250

1289245000250

Unit Price

26
SHIM, TAPPET (T:2.55)
SHIM, TAPPET (T:2.55)

12892-45000-255   1289245000255

1289245000255

Unit Price

26
SHIM, TAPPET (T:2.60)
SHIM, TAPPET (T:2.60)

12892-45000-260   1289245000260

1289245000260

Unit Price

26
SHIM, TAPPET (T:2.65)
SHIM, TAPPET (T:2.65)

12892-45000-265   1289245000265

1289245000265

Unit Price

26
SHIM, TAPPET (T:2.70)
SHIM, TAPPET (T:2.70)

12892-45000-270   1289245000270

1289245000270

Unit Price

26
SHIM, TAPPET (T:2.75)
SHIM, TAPPET (T:2.75)

12892-45000-275   1289245000275

1289245000275

Unit Price

26
SHIM, TAPPET (T:2.80)
SHIM, TAPPET (T:2.80)

12892-45000-280   1289245000280

1289245000280

Unit Price

26
SHIM, TAPPET (T:2.85)
SHIM, TAPPET (T:2.85)

12892-45000-285   1289245000285

1289245000285

Unit Price

26
SHIM, TAPPET (T:2.90)
SHIM, TAPPET (T:2.90)

12892-45000-290   1289245000290

1289245000290

Unit Price

26
SHIM, TAPPET (T:2.95)
SHIM, TAPPET (T:2.95)

12892-45000-295   1289245000295

1289245000295

Unit Price

26
SHIM, TAPPET (T:3.00)
SHIM, TAPPET (T:3.00)

12892-45000-300   1289245000300

1289245000300

Unit Price

26
SHIM, TAPPET (T:3.05)
SHIM, TAPPET (T:3.05)

12892-45000-305   1289245000305

1289245000305

Unit Price

26
SHIM, TAPPET (T:3.10)
SHIM, TAPPET (T:3.10)

12892-45000-310   1289245000310

1289245000310

Unit Price

26
SHIM, TAPPET (T:2.75)
SHIM, TAPPET (T:2.75)

12892-45000-275   1289245000275

1289245000275

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT - VALVES of your Suzuki GSE 500 of GS-E. Let us know if you have any questions.
