REAR BRAKE MASTER CYLINDER (MODEL K3)

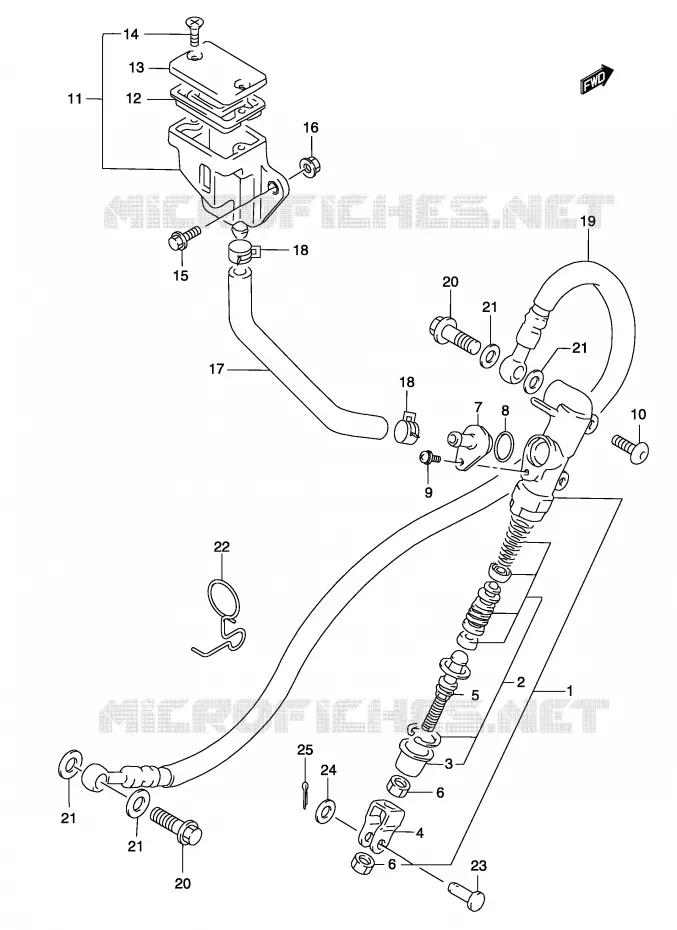

REAR BRAKE MASTER CYLINDER (MODEL K4) FOR SUZUKI GS-F 500 2004

FIG. 36 (G- 7) FUEL TANK (MODEL K3)

Item numbers

CYLINDER ASSY, RR MASTER

69600-01DA0-000

69600-01D00-000

$301,97

Unit Price

CYLINDER ASSY, RR MASTER

69600-0BE00-000

69600-01D00-000

$301,97

Unit Price

BOOT

69691-0BE00-000 696910BE00000

$2,97

Unit Price

DISCONTINUE
YOKE

69692-0BE00-000 696920BE00000

Not available

DISCONTINUE
ROD, PUSH

69670-0BE00-000 696700BE00000

Not available

NUT

69693-0BE00-000

69693-05A00-000

$3,97

Unit Price

DISCONTINUE
CONNECTOR

69672-0BE00-000 696720BE00000

Not available

DISCONTINUE
O RING

69686-0BE00-000 696860BE00000

Not available

SCREW

02112-0BE00-000

02112-0412A-000

$2,97

Unit Price

SCREW (6X25)

09139-06057-000 0913906057000

$3,97

Unit Price

TANK ASSY, RR RESERVOIR

69740-01DA0-000

69740-01D02-000

$102,97

Unit Price

DIAPHRAGM

59667-0BE00-000

59667-04700-000

$11,97

Unit Price

CAP

59669-0BE00-000

59669-05D00-000

$19,97

Unit Price

SCREW

69689-0BE00-000

69689-04A00-000

$2,97

Unit Price

01550-0616A
BOLT

01550-06163-000

Not available

NUT 6MM

08316-10063-000

08319-31067-000

$3,97

Unit Price

HOSE, RESERVOIR TANK
HOSE, RESERVOIR

69731-01D02-000 6973101D02000

$24,97

Unit Price

CLIP
CLAMP

09401-13417-000 0940113417000

$3,97

Unit Price

DISCONTINUE

69480-01DA0-000

Not available

UNION

09360-10041-000

09360-10061-000

$10,97

Unit Price

WASHER
WASHER (10X15X1.5)

09161-10009-000 0916110009000

$3,97

Unit Price

DISCONTINUE

69243-01D20-000

Not available

09200-06037-000

09200-06068-000

$7,97

Unit Price

WASHER

D8322-01065-000

08322-0106A-000

$3,97

Unit Price

04111-20158-000

04111-2015A-000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
