WIRING HARNESS (MODEL K3) REFER TO FIG. 28A (F- 8) FOR GS500K4/K5/K6 P28

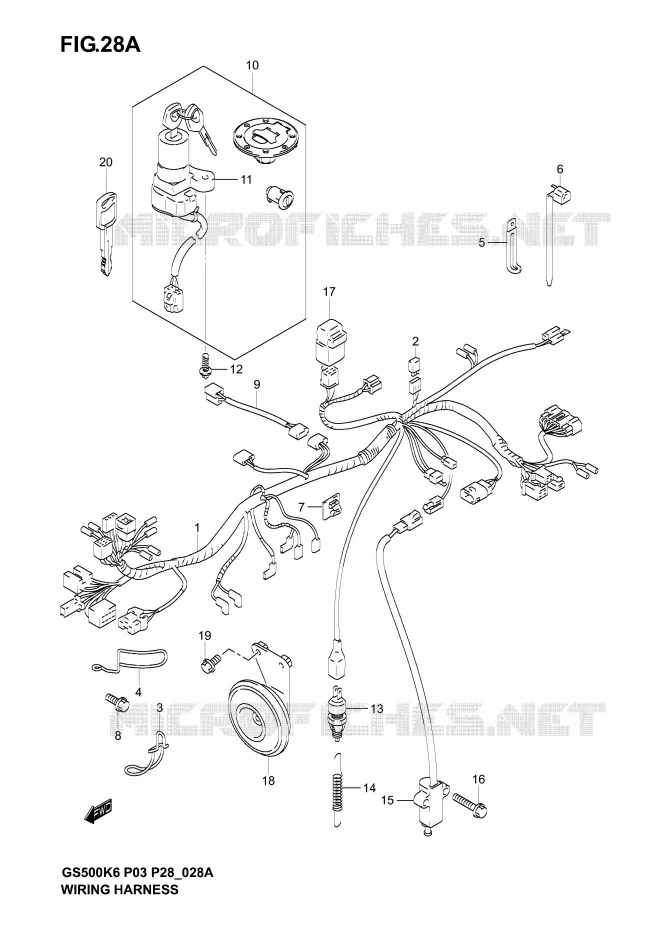

WIRING HARNESS (GS500K4 / K5 / K6 P28) FOR SUZUKI GS-F 500 2004

WIRING HARNESS (GS500FK4 / K5 / K6)

Item numbers

DISCONTINUE
HARNESS, WIRING

36610-0BEK0-000 366100BEK0000

Not available

HARNESS, WIRING

36610-C0B-EP0J000 36610C0BEP0J000

Not available

36611-02E00
DIODE

36611-02E01-000 3661102E01000

Not available

PROTECTOR
PROTECTOR, WIRING HARNESS

36611-01D00-000 3661101D00000

$24,97

Unit Price

PROTECTOR
PROTECTOR, WIRING HARNESS

36611-01D10-000 3661101D10000

$24,97

Unit Price

CLAMP(L:65)

09404-06429-000

09404-06039-000

$3,97

Unit Price

CLAMP(L:65)

09404-06431-000

09404-06207-000

$3,97

Unit Price

CLAMP(L:80)

09404-06434-000

09404-06036-000

$3,97

Unit Price

DISCONTINUE
CLAMP (L:97)

09404-08419-000

Not available

CLAMP

09407-19401-000

09407-22403-000

$3,97

Unit Price

DISCONTINUE
CLAMP (L:125)

D9436-01425-000

Not available

CLAMP

D9448-01885-000 D944801885000

Not available

CLAMP

09403-06310-000 0940306310000

$4,97

Unit Price

BOLT, UH125&200/K8

D1557-06165-000

D1557-0616B-000

$0,97

Unit Price

WIRE, AIR SOLENOID

36852-01D40-000 3685201D40000

$15,97

Unit Price

37000-01872

37000-01870-000

Not available

37100-01D41
LOCK ASSY, STEERING

37100-01D40-000 3710001D40000

Not available

SCREW(6X18)
BOLT

09139-06026-000 0913906026000

$3,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-24A00-000 3774024A00000

$22,97

Unit Price

SPRING

09443-06042-000 0944306042000

$5,97

Unit Price

37840-26X52

37840-26D00-000

Not available

BOLT

D1557-06305-000

01550-06303-000

$3,97

Unit Price

RELAY ASSY, SIDE STAND

38740-24B00-000 3874024B00000

Not available

HORN ASSY

38500-C01-D20J000 38500C01D20J000

Not available

BOLT

D1557-06125-000

01517-06123-000

$3,97

Unit Price

KEY, BLANK

37146-33E00-000 3714633E00000

$21,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
