CYLINDER HEAD COVER

CYLINDER HEAD FOR SUZUKI GS-F 500 2005

CYLINDER

Item numbers

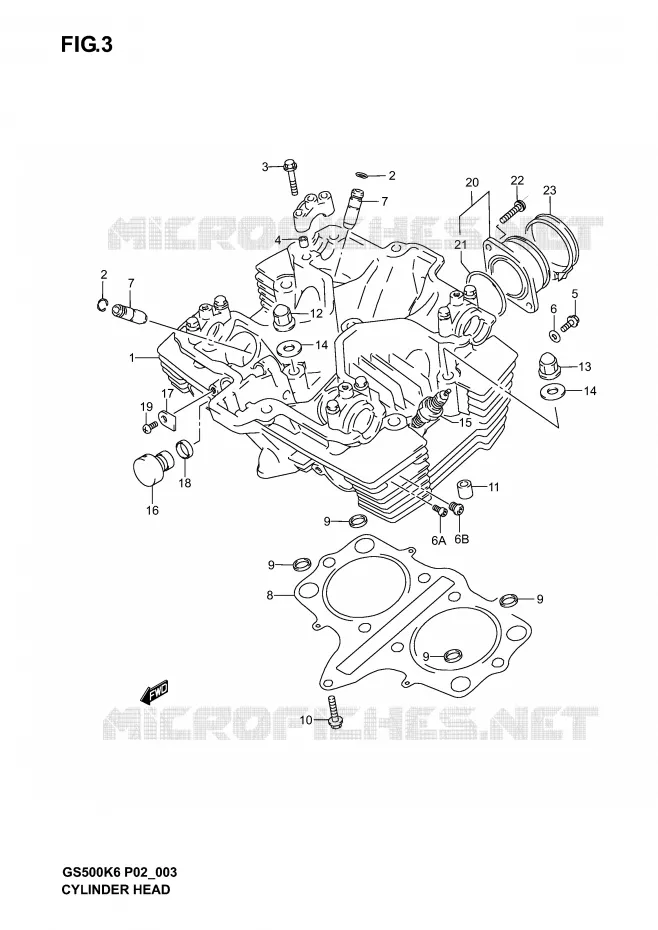

CYLINDER HEAD Suzuki MOTO 500 GS-F 2005 GS500FK5(P19)
1
1
2
2
3
4
5
6A
6
6B
7
7
8
9
9
9
9
10
11
12
13
14
14
15
15
16
17
18
19
20
21
22
23
1
HEAD ASSY, CYLINDER

11100-01D60-000   1110001D60000

1110001D60000

Unit Price

1
DISCONTINUE
HEAD ASSY, CYLINDER

11100-01D40-000   1110001D40000

1110001D40000
Not available
2
RING,SNAP<br />RING, VALVE GUIDE
RING, SNAP
RING, VALVE GUIDE

09381-10003-000   0938110003000

0938110003000

Unit Price

3
CAM SFT HOUSING BOLT<br />BOLT (6X39)
CAM SFT HOUSING BOLT
BOLT (6X39)

09103-06026-000   0910306026000

0910306026000

Unit Price

4
PIN(8X11)<br />PIN
PIN(8X11)
PIN

09206-08001-000   0920608001000

0920608001000

Unit Price

5
BOLT

01550-06123-000  

01550-0612B-000
 0155006123000

Unit Price

6
GASKET
GASKET

09168-06023-000   0916806023000

0916806023000

Unit Price

6A
BOLT(6X12)<br />PLUG, OIL GALLERY
BOLT(6X12)
PLUG, OIL GALLERY

09106-06075-000   0910606075000

0910606075000

Unit Price

6B
PLUG,OIL GALL<br />PLUG, OIL GALLERY
PLUG, OIL GALL
PLUG, OIL GALLERY

09248-10010-000   0924810010000

0924810010000

Unit Price

7
GUIDE,INTAKE VALVE<br />GUIDE, VALVE (OS:0.3)
GUIDE, INTAKE VALVE
GUIDE, VALVE (OS:0.3)

11115-45740-000   1111545740000

1111545740000

Unit Price

8
GASKET, CYLINDER HEAD

11141-01D10-000  

11141-01D11-000
 1114101D10000

Unit Price

9
O RING, HEAD GASKET
O RING, CYLINDER HEAD

11143-06B00-000   1114306B00000

1114306B00000

Unit Price

10
BOLT

01550-06303-000  

01550-0630A-000
 0155006303000

Unit Price

11
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

12
NUT
NUT

09159-10069-000   0915910069000

0915910069000

Unit Price

13
CYLINDER HEAD NUT
NUT

09159-10026-000   0915910026000

0915910026000

Unit Price

14
GASKET 10.2X20X2.3<br />GASKET
GASKET 10.2X20X2.3
GASKET

09168-10031-000   0916810031000

0916810031000

Unit Price

15
PLUG, SPARK(X24EPR-U9)
SPARK PLUG (ND, X24EPR-U9)

09482-00335-000   0948200335000

0948200335000

Unit Price

15
DPR8EA-9, NGK
SPARK PLUG (NGK, DPR8EA-9)

09482-00334-000   0948200334000

0948200334000

Unit Price

16
PLUG,TACH GEAR SLEEVE HOLE<br />CAP, TACHOMETER GEAR SLEEVE
PLUG, TACH GEAR SLEEVE HOLE
CAP, TACHOMETER GEAR SLEEVE

26442-45000-000   2644245000000

2644245000000

Unit Price

17
PLATE,TACH DRIVE GEAR SLEEVE<br />PLATE, TACHOMETER DRIVEN GEAR
PLATE, TACH DRIVE GEAR SLEEVE
PLATE, TACHOMETER DRIVEN GEAR

26449-33000-000   2644933000000

2644933000000

Unit Price

18
BAND, DRIVEN GEAR SEAL
SEAL BAND

26451-45000-000   2645145000000

2645145000000

Unit Price

19
LOCK PLATE SCREW<br />SCREW (5X12)
LOCK PLATE SCREW
SCREW (5X12)

09128-05101-000   0912805101000

0912805101000

Unit Price

20
PIPE ASSY, INTAKE
PIPE, INTAKE

13101-01D40-000   1310101D40000

1310101D40000

Unit Price

21
O RING
O RING

09280-40010-000  

09280-40020-000
 0928040010000

Unit Price

22
SCREW

02112-16163-000  

02112-1616A-000
 0211216163000

Unit Price

23
CLAMP

09402-54208-000   0940254208000

0940254208000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
