CARBURETOR (GS500HK3 / HUK3) REFER TO FIG. 14A (C-11) FOR MODEL K4/K5/K6

CARBURETOR (MODEL K4 / K5 / K6) FOR SUZUKI GS-F 500 2005

AIR FILTER

Item numbers

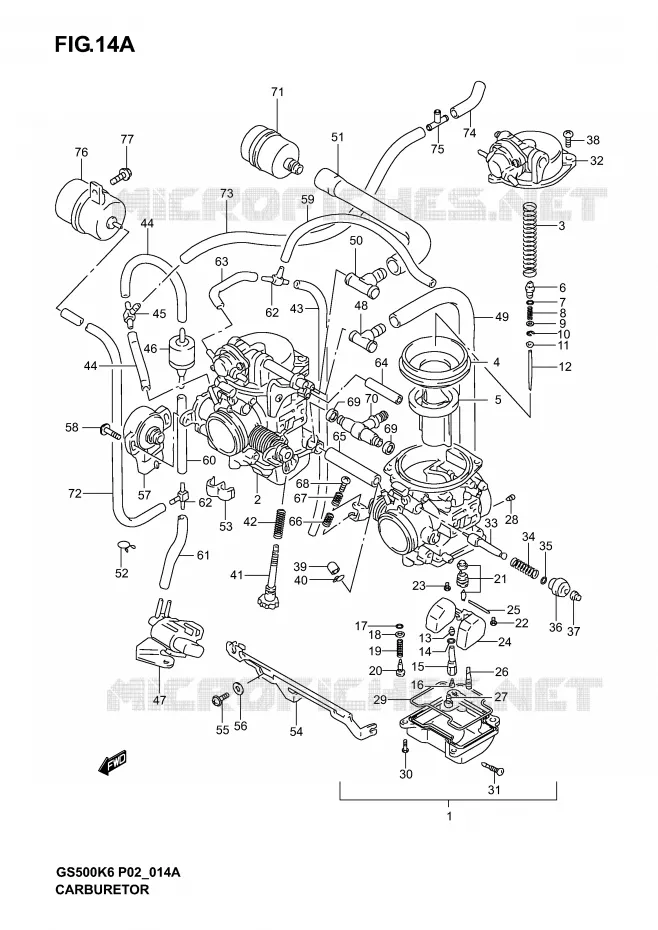

CARBURETOR (MODEL K4/K5/K6) Suzuki MOTO 500 GS-F 2005 GS500FUK5(P19)
1
1
2
2
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
32
33
34
35
36
37
38
39
40
41
42
43
44
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
62
63
64
65
66
67
68
69
69
70
71
72
73
73
74
75
76
77
1
CARBURETOR ASSY, LH

13201-01DN0-000   1320101DN0000

1320101DN0000
Not available
1
CARBURETOR ASSY, LH

13201-01DP0-000   1320101DP0000

1320101DP0000
Not available
2
CARBURETOR ASSY, RH

13202-01DN0-000   1320201DN0000

1320201DN0000
Not available
2
CARBURETOR ASSY, RH

13202-01DP0-000   1320201DP0000

1320201DP0000
Not available
3
SPRING

13573-19E00-000   1357319E00000

1357319E00000

Unit Price

4
DIAPHRAGM
DIAPHRAGM

13507-17C01-000  

13507-17C02-000
 1350717C01000

Unit Price

5
VALVE, PISTON

13501-29FA0-000   1350129FA0000

1350129FA0000

Unit Price

5
VALVE, PISTON

13501-01DK0-000   1350101DK0000

1350101DK0000

Unit Price

6
GUIDE SCREW,PLUNGER<br />HOLDER
GUIDE SCREW, PLUNGER
HOLDER

13418-44080-000   1341844080000

1341844080000

Unit Price

7
O-RING<br />O RING (D:1.9, ID:4.8)
O-RING
O RING (D:1.9, ID:4.8)

09280-05004-000   0928005004000

0928005004000

Unit Price

8
SPRING

13481-13F00-000   1348113F00000

1348113F00000

Unit Price

9
WASHER

13382-19E00-000   1338219E00000

1338219E00000

Unit Price

10
E RING,MULTIPLE JET NOZZLE<br />E RING
E RING, MULTIPLE JET NOZZLE
E RING

13394-17E60-000   1339417E60000

1339417E60000

Unit Price

11
RING

13387-13F00-000   1338713F00000

1338713F00000

Unit Price

12
NEEDLE, JET (5DH57-3)

13383-01DN0-000   1338301DN0000

1338301DN0000
Not available
13
JET, NEEDLE (P-5M)

13341-01DN0-000   1334101DN0000

1334101DN0000

Unit Price

14
O RING
O RING

13246-43010-000  

13246-43011-000
 1324643010000

Unit Price

15
HOLDER, JET

13385-07F00-000   1338507F00000

1338507F00000

Unit Price

16
JET, MAIN(#130)
JET, MAIN (130)

09491-26016-000   0949126016000

0949126016000

Unit Price

16
JET, MAIN (135)

09491-27008-000   0949127008000

0949127008000

Unit Price

17
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

18
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

19
SPRING,THROTTLE SCREW<br />SPRING
SPRING, THROTTLE SCREW
SPRING

13268-48700-000   1326848700000

1326848700000

Unit Price

20
ADJUSTER
ADJUSTER (2 5/8)

13279-01DN0-000   1327901DN0000

1327901DN0000

Unit Price

21
VALVE ASSY, NEEDLE

13370-04F00-000  

13370-04F01-000
 1337004F00000

Unit Price

22
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

23
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

24
FLOAT ASSY

13250-04F00-000   1325004F00000

1325004F00000

Unit Price

25
PIN, FLOAT
PIN, FLOAT

13254-01010-000   1325401010000

1325401010000

Unit Price

26
JET, PILOT (17.5)
JET, PILOT (17.5)

09492-17016-000   0949217016000

0949217016000

Unit Price

27
JET, MAIN (60)

09491-60010-000   0949160010000

0949160010000

Unit Price

28
JET, PILOT AIR (170)
JET, PILOT AIR (170)

09493-34003-000   0949334003000

0949334003000

Unit Price

29
GASKET

13258-04F00-000   1325804F00000

1325804F00000

Unit Price

30
SCREW

02112-04107-000   0211204107000

0211204107000

Unit Price

31
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

32
COVER ASSY, DIA LH
COVER ASSY, DIAPHRAGM LH

13502-01DB0-000   1350201DB0000

1350201DB0000

Unit Price

32
COVER ASSY, DIAPHRAGM, R
COVER ASSY, DIAPHRAGM RH

13502-01DC0-000   1350201DC0000

1350201DC0000

Unit Price

33
PLUNGER<br />PLUNGER ASSY
PLUNGER
PLUNGER ASSY

13411-05300-000   1341105300000

1341105300000

Unit Price

34
SPRING
SPRING

13417-26D00-000   1341726D00000

1341726D00000

Unit Price

35
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

36
GUIDE SCREW,PLUNGER<br />HOLDER, GUIDE
GUIDE SCREW, PLUNGER
HOLDER, GUIDE

13418-44080-000   1341844080000

1341844080000

Unit Price

37
CAP,STARTER VALVE<br />CAP
CAP, STARTER VALVE
CAP

13682-31210-000   1368231210000

1368231210000

Unit Price

38
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

39
CAP
CAP

13274-84000-000   1327484000000

1327484000000

Unit Price

40
CLIP
CLIP

09401-06101-000   0940106101000

0940106101000

Unit Price

41
SCREW, ADJUST
ADJUSTER

13267-13F00-000   1326713F00000

1326713F00000

Unit Price

42
SPRING
SPRING

13271-33C00-000   1327133C00000

1327133C00000

Unit Price

43
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

44
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

45
NIPPLE

13685-04F10-000   1368504F10000

1368504F10000

Unit Price

46
CHECK VALVE ASSY

95569-01DN0-000   9556901DN0000

9556901DN0000
Not available
47
VALVE ASSY,3WAY SOLENOID<br />SOLENOID ASSY
VALVE ASSY, 3WAY SOLENOID
SOLENOID ASSY

18115-70G10-000   1811570G10000

1811570G10000

Unit Price

48
HOSE

13683-01DB0-000   1368301DB0000

1368301DB0000

Unit Price

49
DISCONTINUE
HOSE

13683-01DN0-000  

1368301DN0000
Not available
50
CONNECTOR
3 WAY

13683-01DP0-000   1368301DP0000

1368301DP0000

Unit Price

51
HOSE

13683-01DC1-000  

13683-01DC2-000
 1368301DC1000

Unit Price

52
CLIP
CLIP

09401-16401-000   0940116401000

0940116401000

Unit Price

53
CLIP

09408-00200-000   0940800200000

0940800200000

Unit Price

54
PLATE
LEVER

13413-01DE0-000   1341301DE0000

1341301DE0000

Unit Price

55
SCREW

13602-04F00-000   1360204F00000

1360204F00000

Unit Price

56
PACKING
PACKING

13557-33E00-000   1355733E00000

1355733E00000

Unit Price

57
SENSOR ASSY,THROTTLE
SENSOR ASSY, THROTTLE

13550-13D60-000  

13550-13D61-000
 1355013D60000

Unit Price

58
SCREW,SENSOR<br />SCREW
SCREW, SENSOR
SCREW

13605-20C00-000   1360520C00000

1360520C00000

Unit Price

59
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

60
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

61
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

62
3 WAY<br />NIPPLE
3 WAY
NIPPLE

09367-04007-000   0936704007000

0936704007000

Unit Price

63
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

64
ROD

13685-01DC0-000   1368501DC0000

1368501DC0000

Unit Price

65
PIPE

13685-01DB0-000   1368501DB0000

1368501DB0000

Unit Price

66
SPRING,THROTTLE SCREW<br />SPRING
SPRING, THROTTLE SCREW
SPRING

13268-96111-000   1326896111000

1326896111000

Unit Price

67
SPRING
SPRING

13271-44B00-000   1327144B00000

1327144B00000

Unit Price

68
SCREW
SCREW

13267-44B00-000   1326744B00000

1326744B00000

Unit Price

69
SEAL
SEAL

13673-44B00-000   1367344B00000

1367344B00000

Unit Price

70
NIPPLE

13685-33EQ0-000   1368533EQ0000

1368533EQ0000

Unit Price

71
FILTER, 2ND AIR CLEANER
FILTER, AIR CLEANER NO.2

18780-32E00-000   1878032E00000

1878032E00000

Unit Price

72
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

73
DISCONTINUE
HOSE, FUEL COCK VACUUM NO. 1

09355-50105-600  

0935550105600
Not available
74
DISCONTINUE
HOSE, FUEL COCK VACUUM NO. 2

09355-50105-600  

0935550105600
Not available
75
HOSE,3-WAY<br />JOINT
HOSE, 3-WAY
JOINT

09367-06002-000   0936706002000

0936706002000

Unit Price

76
CHAMBER, VACUUM

13715-04F00-000   1371504F00000

1371504F00000

Unit Price

77
DISCONTINUE
BOLT

D1557-06205-000  

D155706205000
Not available
