REAR CALIPER (MODEL K4 / K5 / K6)

REAR BRAKE MASTER CYLINDER (MODEL K3) FOR SUZUKI GS-F 500 2006

REAR BRAKE MASTER CYLINDER (MODEL K4 / K5 / K6) REFER TO FIG. 53A (J-15) FOR MODEL K4/K5/K6

Item numbers

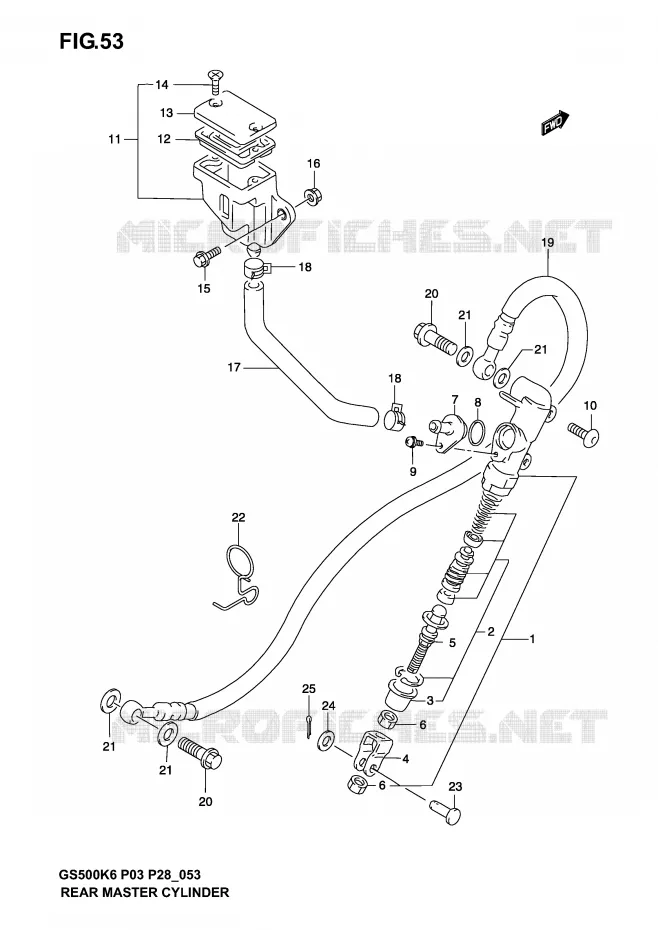

REAR BRAKE MASTER CYLINDER (MODEL K3) Suzuki MOTO 500 GS-F 2006 GS500FK6(P3)
1
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
18
19
20
20
21
21
21
21
22
23
24
25
1
CYLINDER ASSY, RR MASTER
CYLINDER ASSY, REAR MASTER

69600-01D00-000   6960001D00000

6960001D00000

Unit Price

2
PISTON/CUP SET
PISTON/CUP SET

69600-04820-000  

69600-04821-000
 6960004820000

Unit Price

3
BOOT
BOOT

69691-00A00-000   6969100A00000

6969100A00000

Unit Price

4
YOKE
YOKE

69692-19A00-000   6969219A00000

6969219A00000

Unit Price

5
ROD, PUSH
ROD, PUSH

69670-01D00-000   6967001D00000

6967001D00000

Unit Price

6
NUT
NUT

69693-05A00-000   6969305A00000

6969305A00000

Unit Price

7
CONNECTOR

69672-00A00-000   6967200A00000

6967200A00000

Unit Price

8
O RING CONECTOR<br />O RING
O RING CONECTOR
O RING

69686-34200-000   6968634200000

6968634200000

Unit Price

9
SCREW

02112-74123-000  

02112-0412A-000
 0211274123000

Unit Price

10
SCREW (6X25)

09139-06057-000   0913906057000

0913906057000

Unit Price

11
TANK ASSY,RR RESERVOIR<br />TANK ASSY, REAR RESERVOIR
TANK ASSY, RR RESERVOIR
TANK ASSY, REAR RESERVOIR

69740-01D02-000   6974001D02000

6974001D02000

Unit Price

12
DIAPHRAGM
DIAPHRAGM

59667-04700-000   5966704700000

5966704700000

Unit Price

13
CAP
CAP

59669-05D00-000   5966905D00000

5966905D00000

Unit Price

14
SCREW
SCREW

69689-04A00-000   6968904A00000

6968904A00000

Unit Price

15
BOLT, UH125&200/K8

D1557-06165-000  

D1557-0616B-000
 D155706165000

Unit Price

16
NUT

D8320-10065-000  

D832010065000
Not available
17
HOSE, RESERVOIR TANK
HOSE, RESERVOIR

69731-01D02-000   6973101D02000

6973101D02000

Unit Price

18
CLIP<br />CLAMP
CLIP
CLAMP

09401-13417-000   0940113417000

0940113417000

Unit Price

19
HOSE, RR BRAKE
HOSE, REAR BRAKE

69480-01D20-000   6948001D20000

6948001D20000

Unit Price

20
UNION

09360-10041-000  

09360-10061-000
 0936010041000

Unit Price

21
WASHER (10X15X1.5)

09161-C10-009J000   09161C10009J000

09161C10009J000
Not available
22
DISCONTINUE
GUIDE, BRAKE HOSE

69243-01D10-000   6924301D10000

6924301D10000
Not available
23
PIN

09200-06037-000  

09200-06068-000
 0920006037000

Unit Price

24
WASHER

D8322-01065-000  

08322-0106A-000
 D832201065000

Unit Price

25
PIN

D4111-20158-000  

04111-20158-000
 D411120158000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
