Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

WIRING HARNESS (GS500H P28, P95) REFER TO FIG. 34 (E- 8) FOR GS500FH P3, P28, P33, P95

WIRING HARNESS (GS500FH P3, P28, P33, P95) FOR SUZUKI GS-F 500 2007

SWITCHES

Item numbers

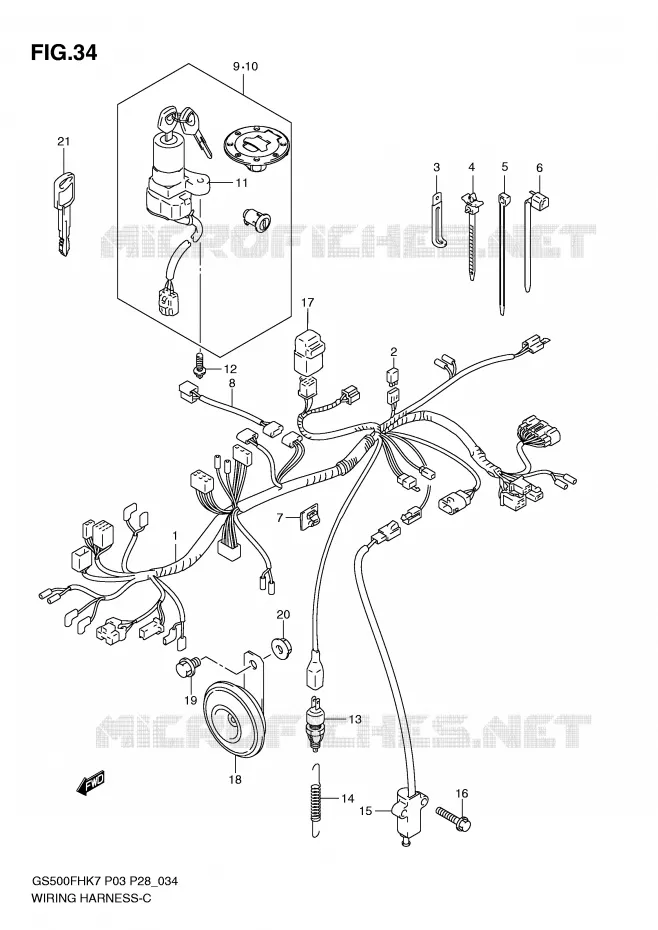

WIRING HARNESS (GS500FH P3, P28, P33, P95) Suzuki MOTO 500 GS-F 2007 GS500FHK7(P3)
1
2
3
3
4
5
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
1
HARNESS, WIRING

36610-C0B-EN0J000   36610C0BEN0J000

36610C0BEN0J000
Not available
2
36611-02E00
DIODE

36611-02E01-000   3661102E01000

3661102E01000
Not available
3
CLAMP(L:65)
CLAMP(L:65)

09404-06429-000  

09404-06039-000
 0940406429000

Unit Price

3
CLAMP(L:65)

09404-06431-000  

09404-06207-000
 0940406431000

Unit Price

4
CLAMP

09407-07E00-000  

09407-11402-000
 0940707E00000

Unit Price

5
DISCONTINUE
CLAMP

D9436-01425-000  

D943601425000
Not available
5
CLAMP

D9448-01885-000   D944801885000

D944801885000
Not available
6
CLAMP<br />CLAMP (L:235)
CLAMP
CLAMP (L:235)

09407-25401-000   0940725401000

0940725401000

Unit Price

7
CLAMP

09403-06310-000   0940306310000

0940306310000

Unit Price

8
WIRE, AIR SOLENOID

36852-01D40-000   3685201D40000

3685201D40000

Unit Price

9
37000-01872

37000-01870-000  

3700001870000
Not available
10
DISCONTINUE
LOCK SET

37000-01880-000   3700001880000

3700001880000
Not available
11
LOCK ASSY, STEERING

37100-01D40-000   3710001D40000

3710001D40000

Unit Price

12
SCREW(6X18)<br />BOLT
SCREW(6X18)
BOLT

09139-06026-000   0913906026000

0913906026000

Unit Price

13
SWITCH ASSY, STOP LAMP
SWITCH ASSY, STOP LAMP

37740-24A00-000   3774024A00000

3774024A00000

Unit Price

14
SPRING
SPRING

09443-06042-000   0944306042000

0944306042000

Unit Price

15
37840-26X52

37840-26D00-000  

3784026D00000
Not available
16
BOLT

D1557-0630B-000   D15570630B000

D15570630B000
Not available
17
RELAY ASSY, SIDE STAND

38740-24B00-000   3874024B00000

3874024B00000
Not available
18
DISCONTINUE
HORN ASSY

38500-0BE00-000   385000BE00000

385000BE00000
Not available
19
BOLT

D1557-0812B-000   D15570812B000

D15570812B000
Not available
20
DISCONTINUE
NUT

D8316-1008B-000   D83161008B000

D83161008B000
Not available
21
KEY, BLANK
KEY, BLANK

37146-26D10-000   3714626D10000

3714626D10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
