Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CLUTCH

TRANSMISSION FOR SUZUKI GS-F 500 2007

GEAR SHIFTING ASSY

Item numbers

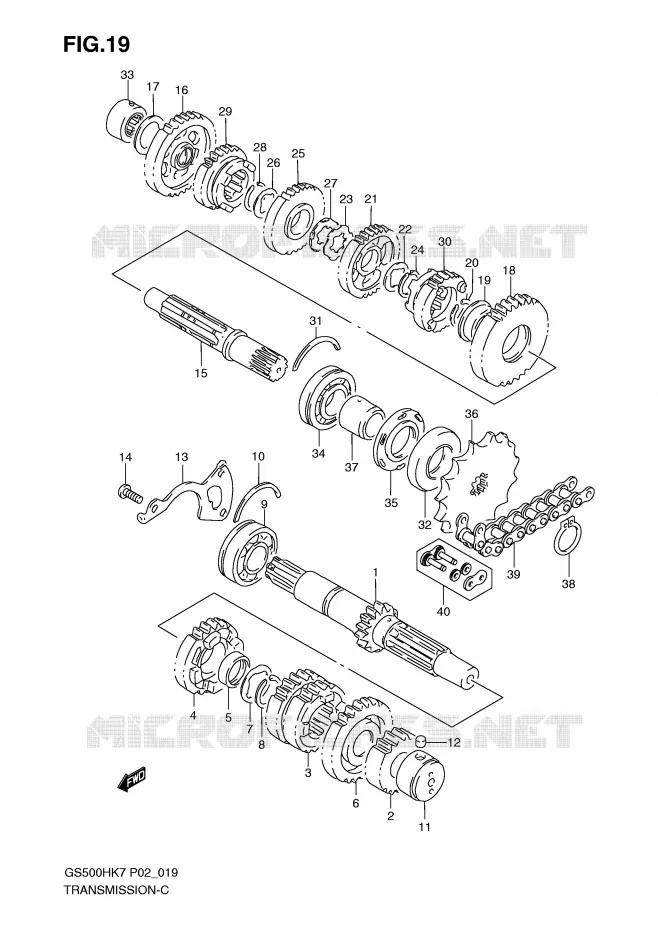

TRANSMISSION Suzuki MOTO 500 GS-F 2007 GS500FMK7(P02)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
1
SHAFT, COUNTER
COUNTERSHAFT (NT: 13)

24121-01D01-000   2412101D01000

2412101D01000

Unit Price

2
GEAR, 2ND DRIVE (NT:18)

24221-44001-000   2422144001000

2422144001000

Unit Price

3
GEAR, 3RD & 4TH DRIVE

24231-20F03-000  

24231-20F10-000
 2423120F03000

Unit Price

4
GEAR, 5TH DRIVE (NT: 26)
GEAR, 5TH DRIVE (NT: 26)

24251-20F02-000   2425120F02000

2425120F02000

Unit Price

5
BUSH
BUSH

24252-19F00-000   2425219F00000

2425219F00000

Unit Price

6
GEAR, 6TH DRIVE
GEAR, 6TH DRIVE (NT: 27)

24260-01D01-000   2426001D01000

2426001D01000

Unit Price

7
WASHER,5TH DRIVE GEA<br />WASHER (25X34X1.0)
WASHER, 5TH DRIVE GEA
WASHER (25X34X1.0)

09181-25167-000   0918125167000

0918125167000

Unit Price

8
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

9
BEARING(25X62X17)<br />BEARING, RH (25X62X17)
BEARING(25X62X17)
BEARING, RH (25X62X17)

09262-25051-000   0926225051000

0926225051000

Unit Price

10
C RING
C RING

09390-62012-000   0939062012000

0939062012000

Unit Price

11
BEARING, LH (20X34X20)

09263-20025-000   0926320025000

0926320025000
Not available
12
PIN 7 X 12<br />PIN
PIN 7 X 12
PIN

04221-07129-000   0422107129000

0422107129000

Unit Price

13
PLATE, COUNTERSHAFT BEARING
HOLDER, BEARING

24741-44102-000   2474144102000

2474144102000

Unit Price

14
SCREW
SCREW (6X16)

09126-06014-000   0912606014000

0912606014000

Unit Price

15
SHAFT, DRIVE
DRIVESHAFT

24131-01D00-000   2413101D00000

2413101D00000

Unit Price

16
GEAR, 1ST DRIVEN
GEAR, 1ST DRIVEN (NT: 32)

24310-44001-000   2431044001000

2431044001000

Unit Price

17
WASHER<br />WASHER (20X34X1)
WASHER
WASHER (20X34X1)

09181-20251-000   0918120251000

0918120251000

Unit Price

18
GEAR, 2ND DRIVEN.NT:32)

24321-20F00-000  

24321-20F01-000
 2432120F00000

Unit Price

19
BUSH
BUSH

24322-19F00-000   2432219F00000

2432219F00000

Unit Price

20
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

21
GEAR, 3RD DRIVEN
GEAR, 3RD DRIVEN (NT: 29)

24331-44003-000   2433144003000

2433144003000

Unit Price

22
WASHER<br />WASHER (25.1X31X1.0)
WASHER
WASHER (25.1X31X1.0)

09167-25012-000   0916725012000

0916725012000

Unit Price

23
LOCK WASHER
LOCK WASHER

09167-25013-000   0916725013000

0916725013000

Unit Price

24
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

25
GEAR, 4TH DRIVEN
GEAR, 4TH DRIVEN (NT: 27)

24341-44003-000   2434144003000

2434144003000

Unit Price

26
WASHER<br />WASHER (25.1X31X1.0)
WASHER
WASHER (25.1X31X1.0)

09167-25012-000   0916725012000

0916725012000

Unit Price

27
LOCK WASHER
LOCK WASHER

09169-25001-000   0916925001000

0916925001000

Unit Price

28
DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000   0938025010000

0938025010000

Unit Price

29
DISCONTINUE
GEAR, 5TH DRIVEN (NT: 25)

24351-44001-000   2435144001000

2435144001000
Not available
30
GEAR, 6TH DRIVEN (NT: 23)

24361-44010-000   2436144010000

2436144010000

Unit Price

31
C RING
C RING

09390-62012-000   0939062012000

0939062012000

Unit Price

32
OIL SEAL
OIL SEAL (32X62X7)

09283-32015-000   0928332015000

0928332015000

Unit Price

33
BEARING(20X34X17)
BEARING, RH (20X34X17)

09263-20027-000   0926320027000

0926320027000

Unit Price

34
BEARING<br />BEARING, LH (25X62X17)
BEARING
BEARING, LH (25X62X17)

09262-25105-000   0926225105000

0926225105000

Unit Price

35
OIL SEAL

09282-32002-000   0928232002000

0928232002000

Unit Price

36
SPROCKET, ENGINE(16T)
SPROCKET, ENGINE (NT: 16)

27511-01D01-000   2751101D01000

2751101D01000

Unit Price

37
SPACER

27531-01D10-000  

27531-01D11-000
 2753101D10000

Unit Price

38
CIRCLIP

08331-31256-000  

08331-31259-000
 0833131256000

Unit Price

39
CHAIN, DRIVE (DID520VM, 110LE)

27600-C01-C10J110   27600C01C10J110

27600C01C10J110
Not available
40
JOINT SET, CHAIN

27620-C01-C10J000   27620C01C10J000

27620C01C10J000
Not available
