CARBURETOR FOR SUZUKI GS-F 500 2010

AIR FILTER

Item numbers

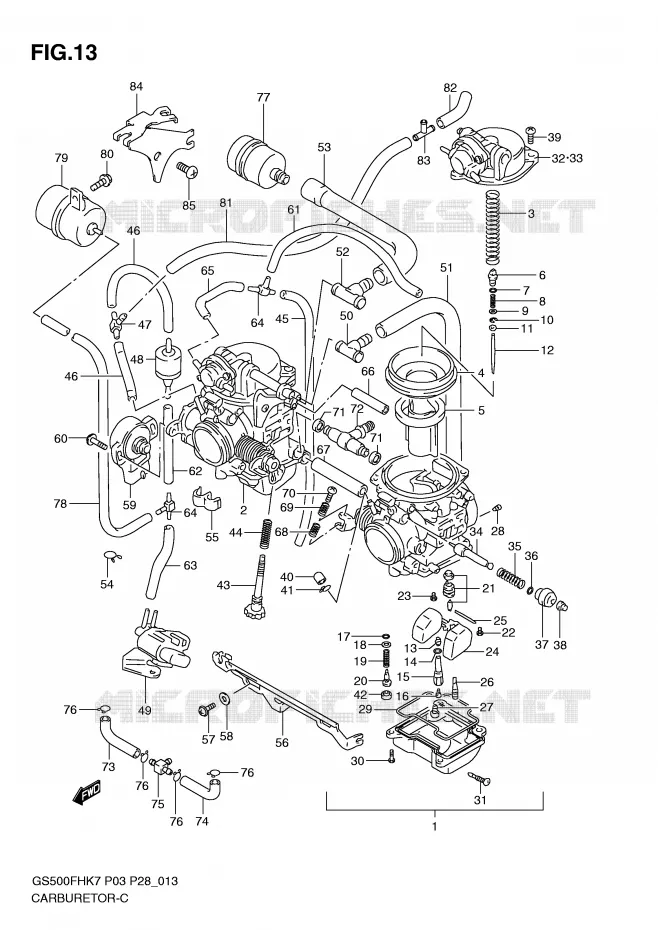

CARBURETOR Suzuki MOTO 500 GS-F 2010 GS500FHL0(P3)
1
1
2
2
3
4
5
6
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
46
47
48
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
64
65
66
67
68
69
70
71
71
72
73
74
75
76
76
76
76
77
78
79
80
81
82
83
84
85
1
CARBURETOR LH
CARBURETOR ASSY, LH

13201-01DU0-000   1320101DU0000

1320101DU0000

Unit Price

1
DISCONTINUE
CARBURETOR ASSY, LH

13201-01DQ0-000   1320101DQ0000

1320101DQ0000
Not available
2
CARBURETOR ASM, RH
CARBURETOR ASSY, RH

13202-01DU0-000   1320201DU0000

1320201DU0000

Unit Price

2
DISCONTINUE
CARBURETOR ASSY, RH

13202-01DQ0-000   1320201DQ0000

1320201DQ0000
Not available
3
SPRING

13573-19E00-000   1357319E00000

1357319E00000

Unit Price

4
DIAPHRAGM
DIAPHRAGM

13507-17C01-000  

13507-17C02-000
 1350717C01000

Unit Price

5
VALVE, PISTON

13501-29FA0-000   1350129FA0000

1350129FA0000

Unit Price

6
HOLDER
HOLDER

13418-33E00-000   1341833E00000

1341833E00000

Unit Price

6
GUIDE SCREW,PLUNGER<br />HOLDER
GUIDE SCREW, PLUNGER
HOLDER

13418-44080-000   1341844080000

1341844080000

Unit Price

7
O-RING<br />O RING (D:1.9, D:4.8)
O-RING
O RING (D:1.9, D:4.8)

09280-05004-000   0928005004000

0928005004000

Unit Price

8
SPRING

13481-13F00-000   1348113F00000

1348113F00000

Unit Price

9
WASHER

13382-19E00-000   1338219E00000

1338219E00000

Unit Price

10
E RING,MULTIPLE JET NOZZLE<br />E RING
E RING, MULTIPLE JET NOZZLE
E RING

13394-17E60-000   1339417E60000

1339417E60000

Unit Price

11
RING

13387-13F00-000   1338713F00000

1338713F00000

Unit Price

12
JET NEEDLE
NEEDLE, JET (5DH60-1)

13383-01DU0-000   1338301DU0000

1338301DU0000

Unit Price

13
JET, NEEDLE (P-5M)

13341-01DN0-000   1334101DN0000

1334101DN0000

Unit Price

14
O RING
O RING

13246-43010-000  

13246-43011-000
 1324643010000

Unit Price

15
HOLDER, JET

13385-07F00-000   1338507F00000

1338507F00000

Unit Price

16
JET, MAIN(#130)
JET, MAIN (130)

09491-26016-000   0949126016000

0949126016000

Unit Price

17
O RING,PILOT AIR SCREW
O RING, PILOT AIR SCREW

13295-29900-000  

13295-29901-000
 1329529900000

Unit Price

18
WASHER
WASHER

13291-29900-000   1329129900000

1329129900000

Unit Price

19
SPRING,THROTTLE SCREW<br />SPRING
SPRING, THROTTLE SCREW
SPRING

13268-48700-000   1326848700000

1326848700000

Unit Price

20
ADJUSTER
ADJUSTER (3.0)

13279-01DN0-000   1327901DN0000

1327901DN0000

Unit Price

21
VALVE ASSY, NEEDLE

13370-04F00-000  

13370-04F01-000
 1337004F00000

Unit Price

22
SCREW

02112-04083-000  

02112-0408B-000
 0211204083000

Unit Price

23
SCREW
SCREW

13602-05A10-000   1360205A10000

1360205A10000

Unit Price

24
FLOAT ASSY

13250-04F00-000   1325004F00000

1325004F00000

Unit Price

25
PIN, FLOAT
PIN, FLOAT

13254-01010-000   1325401010000

1325401010000

Unit Price

26
JET, PILOT (17.5)
JET, PILOT (17.5)

09492-17016-000   0949217016000

0949217016000

Unit Price

27
JET, MAIN(60)
JET, MIAN (60)

09491-60010-000   0949160010000

0949160010000

Unit Price

28
JET, PILOT AIR (170)
JET, PILOT AIR (170)

09493-34003-000   0949334003000

0949334003000

Unit Price

29
GASKET

13258-04F00-000   1325804F00000

1325804F00000

Unit Price

30
SCREW

02112-04107-000   0211204107000

0211204107000

Unit Price

31
PLUG,DRAIN
PLUG, DRAIN

13247-13A00-000  

13247-02340-000
 1324713A00000

Unit Price

32
COVER ASSY, DIA LH
COVER ASSY, DIAPHRAGM LH

13502-01DB0-000   1350201DB0000

1350201DB0000

Unit Price

33
COVER ASSY, DIAPHRAGM, R
COVER ASSY, DIAPHRAGM RH

13502-01DC0-000   1350201DC0000

1350201DC0000

Unit Price

34
PLUNGER<br />PLUNGER ASSY
PLUNGER
PLUNGER ASSY

13411-05300-000   1341105300000

1341105300000

Unit Price

35
SPRING
SPRING

13417-26D00-000   1341726D00000

1341726D00000

Unit Price

36
O RING
O RING

13278-47090-000  

13278-47091-000
 1327847090000

Unit Price

37
GUIDE SCREW,PLUNGER<br />HOLDER, GUIDE
GUIDE SCREW, PLUNGER
HOLDER, GUIDE

13418-44080-000   1341844080000

1341844080000

Unit Price

38
CAP,STARTER VALVE<br />CAP
CAP, STARTER VALVE
CAP

13682-31210-000   1368231210000

1368231210000

Unit Price

39
SCREW
SCREW

02112-05127-000   0211205127000

0211205127000

Unit Price

40
CAP
CAP

13274-84000-000   1327484000000

1327484000000

Unit Price

41
CLIP
CLIP

09401-06101-000   0940106101000

0940106101000

Unit Price

42
PLUG
PLUG

13281-05A00-000   1328105A00000

1328105A00000

Unit Price

43
SCREW, ADJUST
ADJUSTER

13267-13F00-000   1326713F00000

1326713F00000

Unit Price

44
SPRING
SPRING

13271-33C00-000   1327133C00000

1327133C00000

Unit Price

45
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

46
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

47
NIPPLE

13685-04F10-000   1368504F10000

1368504F10000

Unit Price

48
CHECK VALVE ASSY

95568-01DN0-000   9556801DN0000

9556801DN0000

Unit Price

48
CHECK VALVE ASSY

95569-01DN0-000   9556901DN0000

9556901DN0000
Not available
49
VALVE ASSY,3WAY SOLENOID<br />SOLENOID ASSY
VALVE ASSY, 3WAY SOLENOID
SOLENOID ASSY

18115-70G10-000   1811570G10000

1811570G10000

Unit Price

50
HOSE

13683-01DB0-000   1368301DB0000

1368301DB0000

Unit Price

51
DISCONTINUE
HOSE

13683-01DN0-000  

1368301DN0000
Not available
52
CONNECTOR
3 WAY

13683-01DP0-000   1368301DP0000

1368301DP0000

Unit Price

53
HOSE

13683-01DC1-000  

13683-01DC2-000
 1368301DC1000

Unit Price

54
CLIP
CLIP

09401-16401-000   0940116401000

0940116401000

Unit Price

55
CLIP

09408-00200-000   0940800200000

0940800200000

Unit Price

56
PLATE
LEVER

13413-01DE0-000   1341301DE0000

1341301DE0000

Unit Price

57
SCREW

13602-04F00-000   1360204F00000

1360204F00000

Unit Price

58
PACKING
PACKING

13557-33E00-000   1355733E00000

1355733E00000

Unit Price

59
SENSOR ASSY,THROTTLE
SENSOR ASSY, THROTTLE

13550-13D60-000  

13550-13D61-000
 1355013D60000

Unit Price

60
SCREW,SENSOR<br />SCREW
SCREW, SENSOR
SCREW

13605-20C00-000   1360520C00000

1360520C00000

Unit Price

61
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

62
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

63
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

64
3 WAY<br />NIPPLE
3 WAY
NIPPLE

09367-04007-000   0936704007000

0936704007000

Unit Price

65
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

66
ROD

13685-01DC0-000   1368501DC0000

1368501DC0000

Unit Price

67
PIPE

13685-01DB0-000   1368501DB0000

1368501DB0000

Unit Price

68
SPRING,THROTTLE SCREW<br />SPRING
SPRING, THROTTLE SCREW
SPRING

13268-96111-000   1326896111000

1326896111000

Unit Price

69
SPRING
SPRING

13271-44B00-000   1327144B00000

1327144B00000

Unit Price

70
SCREW
SCREW

13267-44B00-000   1326744B00000

1326744B00000

Unit Price

71
SEAL
SEAL

13673-44B00-000   1367344B00000

1367344B00000

Unit Price

72
NIPPLE

13685-33EQ0-000   1368533EQ0000

1368533EQ0000

Unit Price

73
HOSE

13684-01D21-000   1368401D21000

1368401D21000
Not available
74
HOSE

13684-48B01-000   1368448B01000

1368448B01000
Not available
75
NIPPLE
NIPPLE

13685-48B00-000   1368548B00000

1368548B00000

Unit Price

76
CLIP

09401-10410-000   0940110410000

0940110410000

Unit Price

77
FILTER, 2ND AIR CLEANER
FILTER, AIR CLEANER NO. 2

18780-32E00-000   1878032E00000

1878032E00000

Unit Price

78
HOSE(3.5X7.5X600)
HOSE(3.5X7.5X600)

09355-35755-600  

09355-35007-600
 0935535755600

Unit Price

79
CHAMBER, VACUUM

13715-04F00-000   1371504F00000

1371504F00000

Unit Price

80
BOLT

D1557-0620B-000   D15570620B000

D15570620B000
Not available
81
DISCONTINUE
HOSE, FUEL COCK VACUUM NO. 1

09355-50105-600  

0935550105600
Not available
82
DISCONTINUE
HOSE, FUEL COCK VACUUM NO. 2

09355-50105-600  

0935550105600
Not available
83
HOSE,3-WAY<br />JOINT
HOSE, 3-WAY
JOINT

09367-06002-000   0936706002000

0936706002000

Unit Price

84
DISCONTINUE
BRACKET

13565-01DE0-000   1356501DE0000

1356501DE0000
Not available
85
SCREW

02112-05103-000  

02112-0510B-000
 0211205103000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 500 GS-F 2010
