FRONT MASTER CYLINDER

SWINGARM FOR SUZUKI KINGQUAD 500 2009

REAR SHOCK ABSORBER

Item numbers

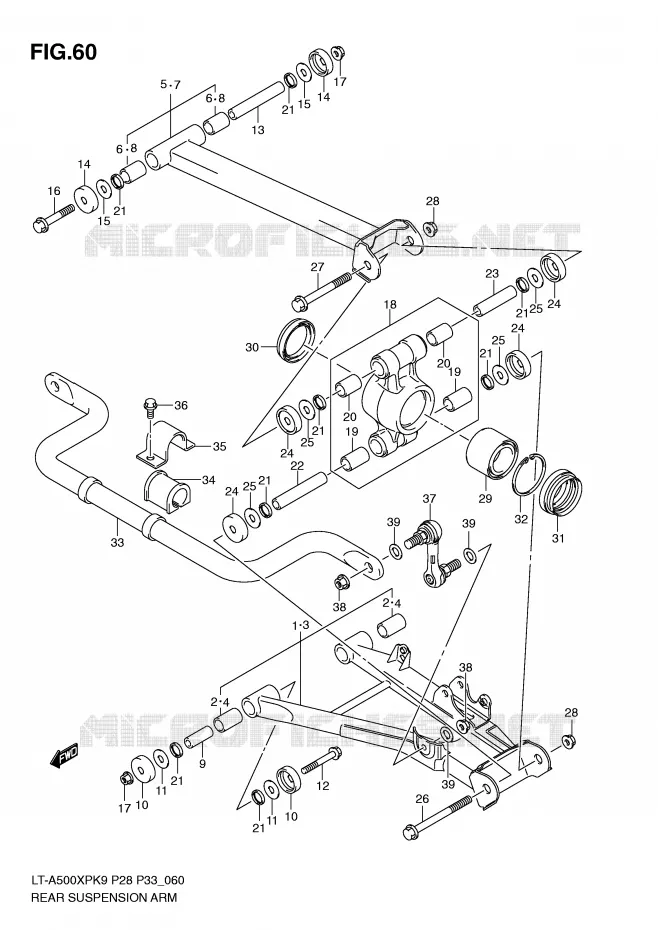

SWINGARM Suzuki QUAD 500 KINGQUAD 2009 LT-A500XPK9(P28/P33)
1
2
2
3
4
4
5
6
6
7
8
8
9
10
10
11
11
12
13
14
14
15
15
16
17
17
18
19
19
20
20
21
21
21
21
21
21
21
21
22
23
24
24
24
24
25
25
25
25
26
27
28
28
29
30
31
32
33
34
35
36
37
38
38
39
39
39
1
ARM COMP, SUSPENSIO
ARM SET, RR SUSPENSION LOWER, R

61510-31830-000   6151031830000

6151031830000

Unit Price

2
BUSH, SUSPENSION ARM PIVOT
BUSH, RR SPNSN ARM LOWER

51236-31G00-000   5123631G00000

5123631G00000

Unit Price

3
ARM COMP, SUSPENSIO
ARM SET, RR SUSPENSION LOWER, L

61520-31830-000   6152031830000

6152031830000

Unit Price

4
BUSH, SUSPENSION ARM PIVOT
BUSH, RR SPNSN ARM LOWER

51236-31G00-000   5123631G00000

5123631G00000

Unit Price

5
ARM SET, RR SUSPENSION UPR, R
ARM SET, RR SUSPENSION UPPER, R

61530-31830-000   6153031830000

6153031830000

Unit Price

6
BUSH, SUSPENSION ARM PIVOT
BUSH, RR SPNSN ARM UPPER

51236-31G00-000   5123631G00000

5123631G00000

Unit Price

7
ARM SET, RR SUSPENSION UPR, L
ARM SET, RR SUSPENSION

61540-31830-000   6154031830000

6154031830000

Unit Price

8
BUSH, SUSPENSION ARM PIVOT
BUSH, RR SPNSN ARM UPPER

51236-31G00-000   5123631G00000

5123631G00000

Unit Price

9
SPACER, RR SPNSN ARM LWR
SPACER, RR SPNSN ARM LOWER

61552-31G10-000   6155231G10000

6155231G10000

Unit Price

10
SEAL, FR SUSPENSION ARM PIVOT
SEAL, RR SPNSN ARM LOWER

51255-31G10-000   5125531G10000

5125531G10000

Unit Price

11
WASHER
WASHER, RR SPNSN ARM LOWER

08211-10281-000   0821110281000

0821110281000

Unit Price

12
BOLT
BOLT, RR SPNSN ARM LOWER (10X70)

09103-10392-000   0910310392000

0910310392000

Unit Price

13
SPACER, RR SPNSN ARM UPR
SPACER, RR SPNSN ARM UPPER

61554-31G10-000   6155431G10000

6155431G10000

Unit Price

14
SEAL, RR SPNSN ARM UPR DUST
SEAL, RR SPNSN ARM UPPER

51255-31G00-000   5125531G00000

5125531G00000

Unit Price

15
WASHER
WASHER, RR SPNSN ARM UPPER

08211-10281-000   0821110281000

0821110281000

Unit Price

16
BOLT
BOLT, RR SPNSN ARM UPPER (10X120)

09103-10388-000   0910310388000

0910310388000

Unit Price

17
NUT<br />NUT, RR SPNSN ARM PIVOT
NUT
NUT, RR SPNSN ARM PIVOT

09159-10115-000   0915910115000

0915910115000

Unit Price

18
KNUCKLE SET, RR SUSPENSION

61600-31830-000   6160031830000

6160031830000

Unit Price

19
BUSH, SUSPENSION ARM PIVOT
BUSH, RR KNUCKLE

51236-31G00-000   5123631G00000

5123631G00000

Unit Price

20
BUSH, RR KNUCKLE UPR
BUSH, RR KNUCKLE UPPER

61551-31G10-000   6155131G10000

6155131G10000

Unit Price

21
SEAL, SPNSN ARM PVT INNER DUST
SEAL, RR KNUCKLE INNER

52454-45G00-000   5245445G00000

5245445G00000

Unit Price

22
SPACER, RR SPNSN ARM UPR
SPACER, RR KNUCKLE LOWER

61554-31G10-000   6155431G10000

6155431G10000

Unit Price

23
SPACER, RR KNUCKLE UPR
SPACER, RR KNUCKLE UPPER

61553-31G20-000   6155331G20000

6155331G20000

Unit Price

24
DUST SEAL, KNUCKLE ARM
SEAL, RR KNUCKLE DUST

51255-18900-000   5125518900000

5125518900000

Unit Price

25
WASHER
WASHER, RR KNUCKLE

08211-10281-000   0821110281000

0821110281000

Unit Price

26
BOLT
BOLT, RR KNUCKLE LOWER (10X120)

09103-10388-000   0910310388000

0910310388000

Unit Price

27
BOLT, RR KNUCKLE
BOLT, RR KNUCKLE UPPER (10X96)

09103-10387-000   0910310387000

0910310387000

Unit Price

28
NUT<br />NUT, RR KNUCKLE
NUT
NUT, RR KNUCKLE

09159-10115-000   0915910115000

0915910115000

Unit Price

29
BEARING, WHEEL HUB

43440-84F00-000  

43440-58J00-000
 4344084F00000

Unit Price

30
SEAL, RR HUB INNER DUST
SEAL, REAR HUB INNER DUST

61615-31G00-000   6161531G00000

6161531G00000

Unit Price

31
SEAL, RR HUB OUTER DUST
SEAL, REAR HUB OUTER DUST

61616-31G00-000   6161631G00000

6161631G00000

Unit Price

32
CIRCLIP
CLIP, HUB BEARING

08331-4162A-000   083314162A000

083314162A000

Unit Price

33
BAR, RR STABILIZER

61651-31G20-000   6165131G20000

6165131G20000

Unit Price

34
BUSH, RR STABILIZER

61652-31G20-000  

61652-34K00-000
 6165231G20000

Unit Price

35
PLATE, RR STABILIZER

61650-31G00-000   6165031G00000

6165031G00000

Unit Price

36
BOLT

09103-08283-000  

09103-08570-000
 0910308283000

Unit Price

37
JOINT, RR STABILIZER

61660-31G20-000   6166031G20000

6166031G20000

Unit Price

38
NUT, RR STABILIZER J
NUT, RR STABILIZER JOINT

09159-10223-000   0915910223000

0915910223000

Unit Price

39
WASHER<br />WASHER, RR STABILIZER (10.5X55X2.3)
WASHER
WASHER, RR STABILIZER (10.5X55X2.3)

09160-10039-000   0916010039000

0916010039000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the SWINGARM of your Suzuki of KINGQUAD. Let us know if you have any questions.
