FUEL PUMP

WATER PUMP FOR SUZUKI KINGQUAD 500 2010

RADIATOR

Item numbers

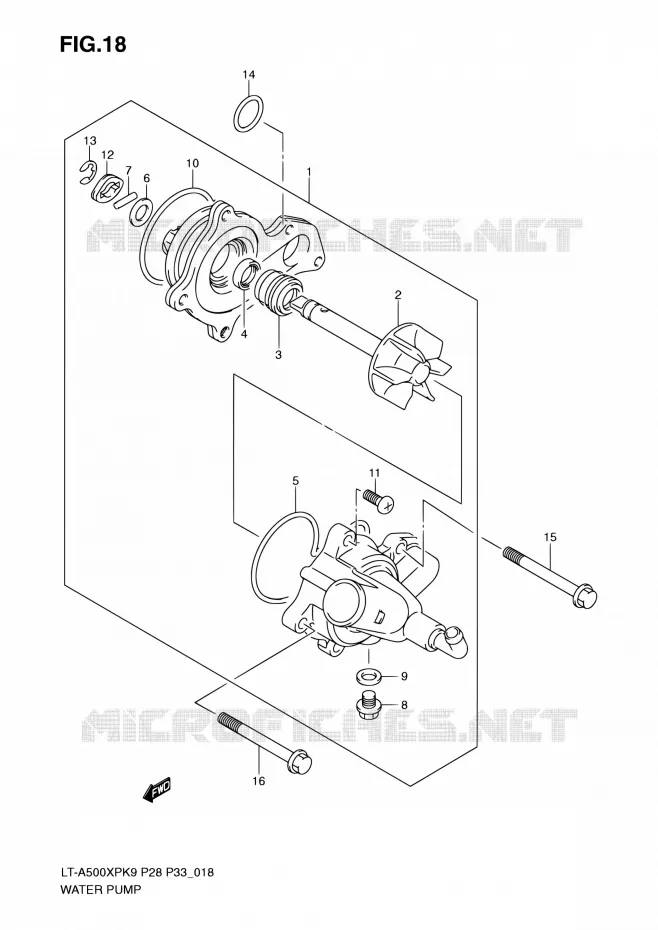

WATER PUMP Suzuki QUAD 500 KINGQUAD 2010 LT-A500XP L0/LT-A500XPZ L0 (P28,P33)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
1
PUMP ASSY, WATER

17400-11H10-000  

17400-11H21-000
 1740011H10000

Unit Price

2
.IMPELLER

17491-11H00-000   1749111H00000

1749111H00000

Unit Price

3
SEAL, MECHANICAL

17470-02F01-000  

17470-02F11-000
 1747002F01000

Unit Price

4
.OIL SEAL

17461-48G00-000   1746148G00000

1746148G00000

Unit Price

5
O RING

17418-11H00-000  

17418-11H01-000
 1741811H00000

Unit Price

6
.WASHER

17432-07G00-000   1743207G00000

1743207G00000

Unit Price

7
.PIN

17482-03G00-000   1748203G00000

1748203G00000

Unit Price

8
BOLT,DRAIN<br />.BOLT
BOLT, DRAIN
.BOLT

17415-20920-000   1741520920000

1741520920000

Unit Price

9
GASKET,8.2X14X1<br />.WASHER
GASKET, 8.2X14X1
.WASHER

09168-08016-000   0916808016000

0916808016000

Unit Price

10
O RING,WATER PUMP HOLDER<br />.O RING
O RING, WATER PUMP HOLDER
.O RING

17435-33400-000   1743533400000

1743533400000

Unit Price

11
.SCREW
.SCREW

02112-0616A-000   021120616A000

021120616A000

Unit Price

12
.CAP

17432-11H00-000   1743211H00000

1743211H00000

Unit Price

13
.E RING
.E RING

08332-1108A-000   083321108A000

083321108A000

Unit Price

14
OIL PLUG O RING<br />O-RING (D:2.4,ID:21.8)
OIL PLUG O RING
O-RING (D:2.4, ID:21.8)

09280-22001-000   0928022001000

0928022001000

Unit Price

15
BOLT

01547-0630A-000   015470630A000

015470630A000

Unit Price

16
BOLT

01547-0645A-000   015470645A000

015470645A000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the WATER PUMP of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 500 KINGQUAD 2010
