Finish line

Parts catalogue

Parts diagram

HEADLIGHT

TAIL LIGHT (P17) FOR SUZUKI KINGQUAD 500 2010

TAIL LIGHT (P24)

Item numbers

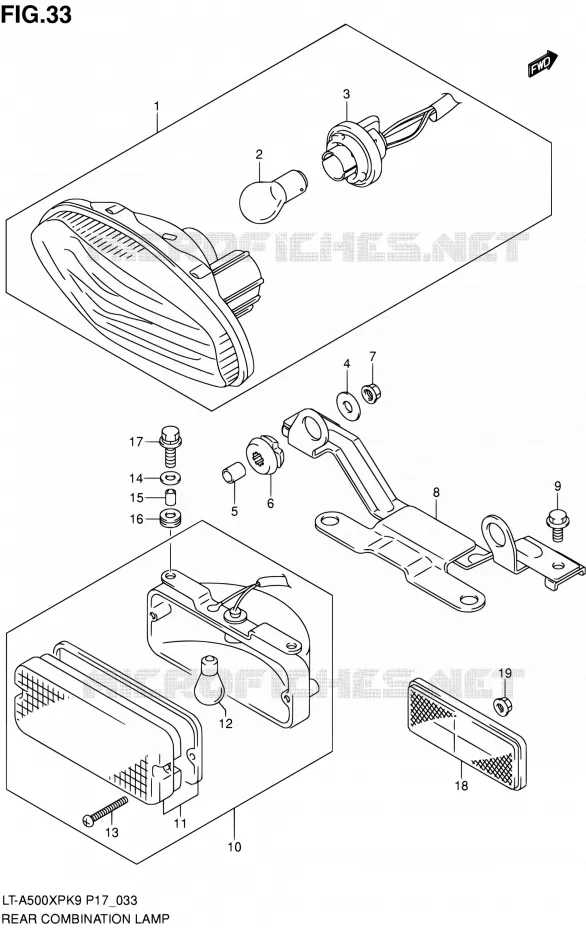

TAIL LIGHT (P17) Suzuki QUAD 500 KINGQUAD 2010 LT-A500XP L0 (P17,P24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
1
LAMP ASSY, RR COMBINATION
LAMP ASSY, REAR COMB

35710-31G00-000   3571031G00000

3571031G00000

Unit Price

2
BULB(12V1.4W G30)

09471-12128-000  

09471-12083-000
 0947112128000

Unit Price

3
SOCKET, BULB
.SOCKET & CORD

35718-03G30-000   3571803G30000

3571803G30000

Unit Price

4
WASHER 6.5X10X1.2<br />WASHER, REAR COMB LAMP
WASHER 6.5X10X1.2
WASHER, REAR COMB LAMP

09160-06077-000   0916006077000

0916006077000

Unit Price

5
SPACER, 6.5X9X10.5
SPACER, REAR COMB

09180-06264-000   0918006264000

0918006264000

Unit Price

6
CUSHION
CUSHION, REAR COMB

09320-09018-000   0932009018000

0932009018000

Unit Price

7
NUT<br />NUT, REAR COMB
NUT
NUT, REAR COMB

08316-1006B-000   083161006B000

083161006B000

Unit Price

8
BRACKET, REAR COMB LAMP

35726-31G20-000   3572631G20000

3572631G20000
Not available
9
BOLT
BOLT, REAR COMB BRACKET

01550-0612A-000   015500612A000

015500612A000

Unit Price

10
LAMP ASSY, BACK UP

36250-09F00-000   3625009F00000

3625009F00000
Not available
11
.LENS SET

36252-09F01-000   3625209F01000

3625209F01000
Not available
12
BULB(12V60/55W,H4)<br />.BULB (12V 21W)
BULB(12V60/55W, H4)
.BULB (12V 21W)

09471-12045-000   0947112045000

0947112045000

Unit Price

13
.SCREW
.SCREW

03211-04207-000   0321104207000

0321104207000

Unit Price

14
WASHER

09160-06079-000  

09160-06052-000
 0916006079000

Unit Price

15
SPACER (6.1X8X9.5)
SPACER (6.1X8X9.5)

09180-06248-000   0918006248000

0918006248000

Unit Price

16
CUSHION
CUSHION

09320-08501-000   0932008501000

0932008501000

Unit Price

17
BOLT
BOLT

01550-0620B-000   015500620B000

015500620B000

Unit Price

18
REFLECTOR ASSY,RR<br />REFLECTOR ASSY, REAR
REFLECTOR ASSY, RR
REFLECTOR ASSY, REAR

35970-07F01-000   3597007F01000

3597007F01000

Unit Price

19
NUT<br />NUT, REAR RR
NUT
NUT, REAR RR

08316-1005B-000   083161005B000

083161005B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT (P17) of your Suzuki of KINGQUAD. Let us know if you have any questions.
