Finish line

Parts catalogue

Parts diagram

CASING

CASING FOR SUZUKI KINGQUAD 500 2010

V-BELT COOLING DUCT

Item numbers

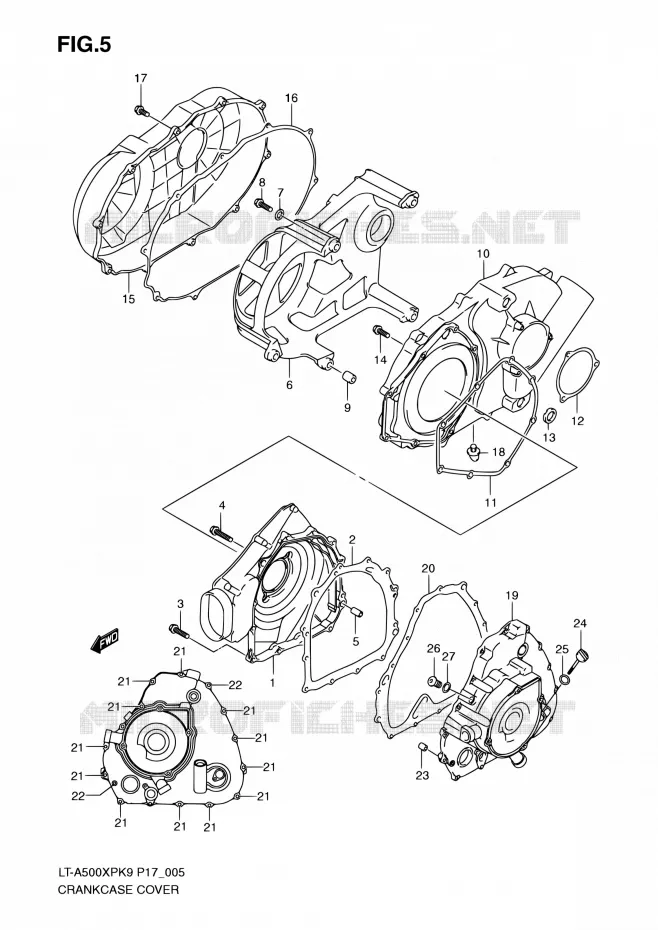

CASING Suzuki QUAD 500 KINGQUAD 2010 LT-A500XP L0 (P17,P24)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
21
21
21
21
21
21
21
21
21
21
21
22
22
23
24
25
26
27
1
COVER, CLUTCH

11341-11H00-000   1134111H00000

1134111H00000

Unit Price

2
GASKET, CLUTCH COVER
GASKET

11482-11H00-000   1148211H00000

1148211H00000

Unit Price

3
BOLT
BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

4
BOLT
BOLT

01547-0635B-000   015470635B000

015470635B000

Unit Price

5
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

6
HOUSING, V-BELT BEARING
HOUSING, BELT BEARING

11342-11H00-000   1134211H00000

1134211H00000

Unit Price

7
GASKET, V-BELT BEARING HOUSING

11488-11H00-000  

11488-11H01-000
 1148811H00000

Unit Price

8
BOLT
BOLT

01547-0635B-000   015470635B000

015470635B000

Unit Price

9
PIN
PIN

04211-09149-000   0421109149000

0421109149000

Unit Price

10
COVER, V BELT INNER
COVER, BELT INNER

11370-11H00-000   1137011H00000

1137011H00000

Unit Price

11
GASKET, V-BELT COVER INNER FR

11484-11H00-000  

11484-11H01-000
 1148411H00000

Unit Price

12
GASKET, V-BELT COVER INNER RR
GASKET

11485-31G00-000   1148531G00000

1148531G00000

Unit Price

13
GASKET, V-BELT COVER INNER HOLE

11487-11H00-000  

11487-11H01-000
 1148711H00000

Unit Price

14
BOLT
BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

15
COVER, V BELT OUTER
COVER, BELT OUTER

11380-11H00-000   1138011H00000

1138011H00000

Unit Price

16
GASKET, V-BELT COVER OUTER

11486-11H00-000  

11486-11H01-000
 1148611H00000

Unit Price

17
BOLT
BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

18
PLUG, WATER DRAIN

11375-31G00-000   1137531G00000

1137531G00000

Unit Price

19
COVER, MAGNETO

11350-11H10-000   1135011H10000

1135011H10000

Unit Price

20
GASKET, MAGNETO COVER
GASKET

11483-11H00-000   1148311H00000

1148311H00000

Unit Price

21
BOLT
BOLT

01547-0625B-000   015470625B000

015470625B000

Unit Price

22
BOLT
BOLT

01547-0635B-000   015470635B000

015470635B000

Unit Price

23
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

24
GAUGE, OIL LEVEL

11971-09F50-000   1197109F50000

1197109F50000

Unit Price

25
O-RING,OIL FILLER<br />O RING
O-RING, OIL FILLER
O RING

09280-17003-000   0928017003000

0928017003000

Unit Price

26
09248-14011
PLUG, TDC CHECK

09248-14012-000  

0924814012000
Not available
27
GASKET

09168-14014-000   0916814014000

0916814014000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CASING of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 500 KINGQUAD 2010

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 500 KINGQUAD 2010

Select your Suzuki 2010 model

500 KINGQUAD 2010 LT-A500XP L0 (P17,P24)

Suzuki KINGQUAD

Displacement: 500 cc
Year: 2010
Model code LT-A500XP L0 (P17,P24)
4X4 AUTOMATIC DIRECTION ASSISTEE
