CYLINDER

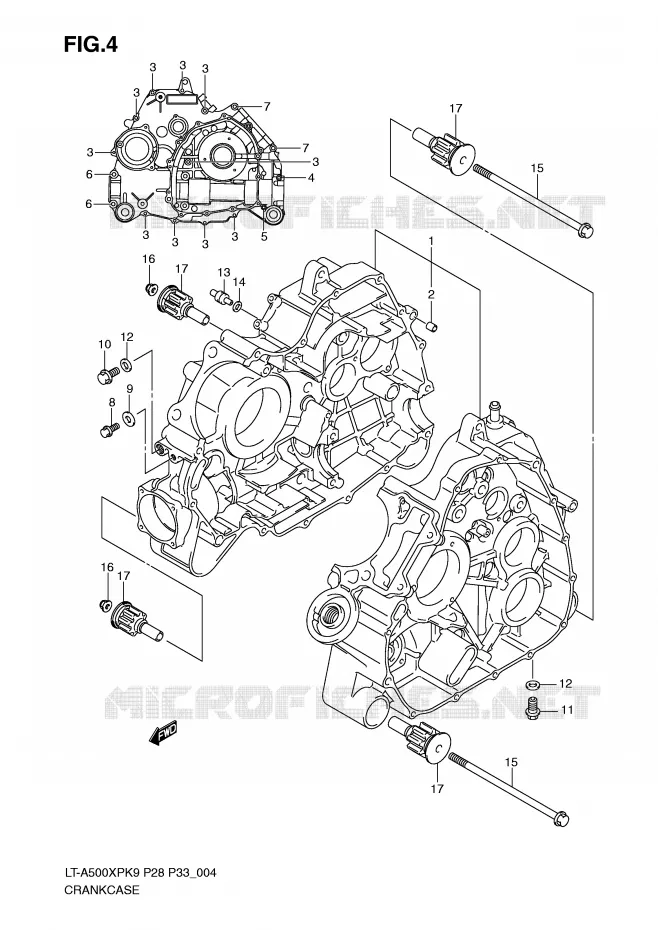

CRANKCASE FOR SUZUKI KINGQUAD 500 2010

CRANKCASE COVER

Item numbers
CRANKCASE Suzuki QUAD 500 KINGQUAD 2010 LT-A500XPL0(P28/P33)
1
2
3
3
3
3
3
3
3
3
3
3
4
5
6
6
7
7
8
9
10
11
12
12
13
14
15
15
16
16
17
17
17
17
1
CRANKCASE SET

11301-11870-000  

11301-11871-000
 1130111870000

Unit Price

2
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

3
BOLT

01547-0650B-000  

01547-0650A-000
 015470650B000

Unit Price

4
BOLT
BOLT

01547-0680B-000   015470680B000

015470680B000

Unit Price

5
BOLT
BOLT

01547-0690B-000   015470690B000

015470690B000

Unit Price

6
BOLT

01550-0850B-000   015500850B000

015500850B000

Unit Price

7
BOLT
BOLT

01550-0875B-000   015500875B000

015500875B000

Unit Price

8
BOLT<br />PLUG, OIL GALLERY
BOLT
PLUG, OIL GALLERY

01550-0812B-000   015500812B000

015500812B000

Unit Price

9
GASKET,8.2X14X1<br />GASKET
GASKET, 8.2X14X1
GASKET

09168-08016-000   0916808016000

0916808016000

Unit Price

10
PLUG
PLUG, OIL GALLERY

09247-12006-000   0924712006000

0924712006000

Unit Price

11
PLUG, T.D.C.

09247-12102-000  

09247-12104-000
 0924712102000

Unit Price

12
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
13
JET,OIL GALLERY<br />JET, T/M OIL GALLERY
JET, OIL GALLERY
JET, T/M OIL GALLERY

09493-20014-000   0949320014000

0949320014000

Unit Price

14
O-RING
O-RING

09280-04004-000   0928004004000

0928004004000

Unit Price

15
BOLT, ENG MTG, L195
BOLT, ENG MTG (10X195)

09103-10118-000   0910310118000

0910310118000

Unit Price

16
NUT<br />NUT, ENG MTG
NUT
NUT, ENG MTG

09159-10115-000   0915910115000

0915910115000

Unit Price

17
BUSH, ENGINE MOUNTING
BUSH, ENG MTG

11651-31G10-000   1165131G10000

1165131G10000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki of KINGQUAD. Let us know if you have any questions.
