Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

STEERING COLUMN

FRONT SUSPENSION ARM FOR SUZUKI KINGQUAD 500 2012

FRONT WHEEL (LT-A500XPL2 P28)

Item numbers

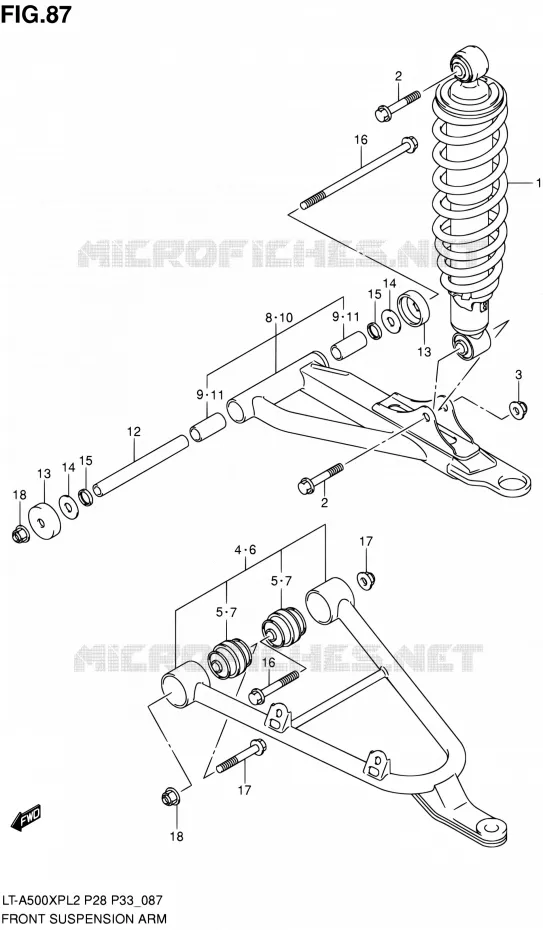

FRONT SUSPENSION ARM Suzuki QUAD 500 KINGQUAD 2012 LT-A500XP L2/LT-A500XPZ L2 (P03,P28,P33)
1
2
2
3
4
5
5
6
7
7
8
9
9
10
11
11
12
13
13
14
14
15
15
16
16
17
17
18
18
1
ABSORBER ASSY, FR SHOCK
ABSORBER ASSY, FRONT SHOCK (BLACK)

52100-31G40-019   5210031G40019

5210031G40019

Unit Price

2
BOLT (10X48)
BOLT (10X48)

09103-10126-000   0910310126000

0910310126000

Unit Price

3
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

4
ARM SET, SUSPENSION LWR, R
ARM SET, SUSPENSION LOWER RH

52410-31830-000   5241031830000

5241031830000

Unit Price

5
BUSH
.BUSH (10X35.1X38)

09319-10055-000   0931910055000

0931910055000

Unit Price

6
ARM SET, SUSPENSION LWR, L
ARM SET, SUSPENSION LOWER LH

52420-31830-000   5242031830000

5242031830000

Unit Price

7
BUSH
.BUSH (10X35.1X38)

09319-10055-000   0931910055000

0931910055000

Unit Price

8
ARM SET, SUSPENSION UPR, R
ARM SET, SUSPENSION UPPER RH

52430-31830-000   5243031830000

5243031830000

Unit Price

9
BUSH, SUSPENSION ARM PIVOT
.BUSH

51236-31G00-000   5123631G00000

5123631G00000

Unit Price

10
ARM SET, SUSPENSION UPR, L
ARM SET, SUSPENSION UPPER LH

52440-31830-000   5244031830000

5244031830000

Unit Price

11
BUSH, SUSPENSION ARM PIVOT
.BUSH

51236-31G00-000   5123631G00000

5123631G00000

Unit Price

12
SPACER, FR SUSPENSION ARM PIVOT
SPACER, PIVOT

52455-31G10-000   5245531G10000

5245531G10000

Unit Price

13
SEAL, FR SUSPENSION ARM PIVOT

51255-31G10-000   5125531G10000

5125531G10000

Unit Price

14
WASHER

08211-10281-000   0821110281000

0821110281000

Unit Price

15
SEAL, SPNSN ARM PVT INNER DUST
SEAL

52454-45G00-000   5245445G00000

5245445G00000

Unit Price

16
BOLT, SUSPENSION
BOLT (10X160)

09103-10389-000   0910310389000

0910310389000

Unit Price

17
BOLT (10X57)
BOLT (10X57)

09103-10255-000   0910310255000

0910310255000

Unit Price

18
NUT
NUT

09159-10115-000   0915910115000

0915910115000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT SUSPENSION ARM of your Suzuki of KINGQUAD. Let us know if you have any questions.
