STARTER MOTOR CLUTCH FOR SUZUKI KINGQUAD 500 2013

CRANK BALANCER

Item numbers

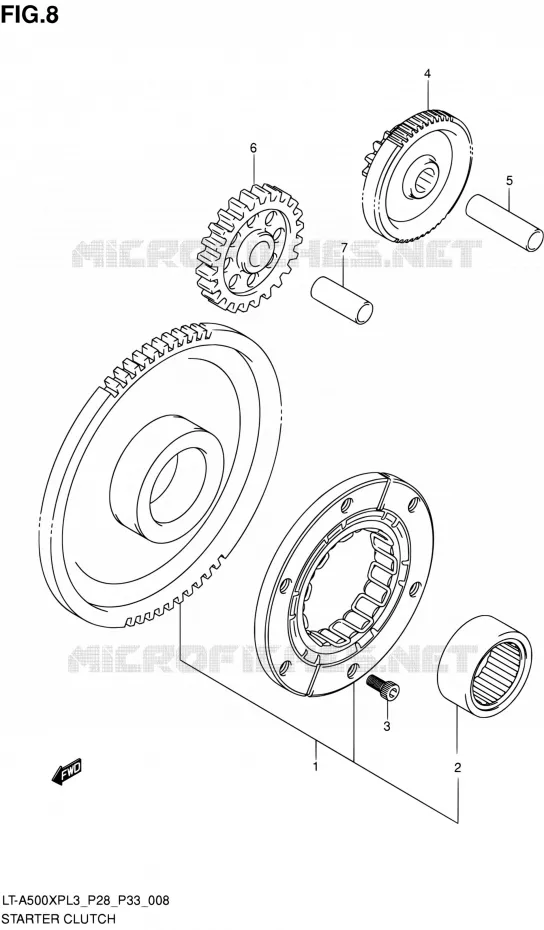

STARTER MOTOR CLUTCH Suzuki QUAD 500 KINGQUAD 2013 LT-A500XP L3/LT-A500XPZ L3 (P03,P28,P33)
1
2
3
4
5
6
7
1
CLUTCH SET, STARTER
CLUTCH SET, STARTER (NT:73)

12600-11810-000   1260011810000

1260011810000

Unit Price

2
ROLLER BEARING
.BEARING (31X39X17.8)

09263-31009-000   0926331009000

0926331009000

Unit Price

3
BOLT (8X16)

09106-08190-000   0910608190000

0910608190000

Unit Price

4
GEAR, STARTER IDLE NO.1
GEAR, STARTER IDLE NO.1 (NT:14/57)

12611-11H00-000   1261111H00000

1261111H00000

Unit Price

5
PIN, STARTER IDLE GEA
PIN (8X12X45.5)

09206-12006-000   0920612006000

0920612006000

Unit Price

6
GEAR, STARTER IDLE NO.2
GEAR, STARTER IDLE NO.2 (NT:27)

12612-31G00-000   1261231G00000

1261231G00000

Unit Price

7
PIN, STARTER IDLE GEA
PIN (8X12X33)

09206-12007-000   0920612007000

0920612007000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the STARTER MOTOR CLUTCH of your Suzuki of KINGQUAD. Let us know if you have any questions.
