HANDGRIPS - LEVERS FOR SUZUKI KINGQUAD 500 2015

REAR SUSPENSION ARM

Item numbers

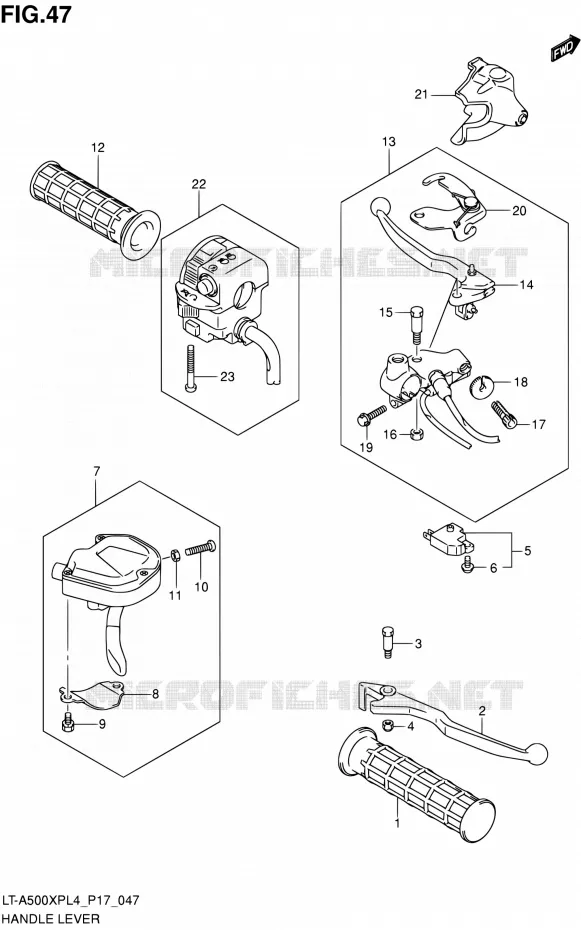

HANDGRIPS - LEVERS Suzuki QUAD 500 KINGQUAD 2015 LT-A500XP L4/LT-A500XPZ L4 (P17)
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
1
GRIP

57211-21G10-000   5721121G10000

5721121G10000

Unit Price

2
LEVER, FR BRAKE
LEVER, BRAKE

57421-39D20-000   5742139D20000

5742139D20000

Unit Price

3
BOLT, BRAKE LEVER PIVOT
BOLT, PIVOT

57431-04F00-000   5743104F00000

5743104F00000

Unit Price

4
NUT, LEVER PIVOT
NUT

57433-09F00-000   5743309F00000

5743309F00000

Unit Price

5
SWITCH ASSY,STOP
SWITCH ASSY, STOP

57460-14J01-000  

57460-14J02-000
 5746014J01000

Unit Price

6
SCREW,WITH WASHER(4X12)<br />.SCREW
SCREW, WITH WASHER(4X12)
.SCREW

57465-17C00-000   5746517C00000

5746517C00000

Unit Price

7
CASE ASSY, THROTTLE

57100-27H11-000  

57100-27H13-000
 5710027H11000

Unit Price

8
.HOLDER

57126-07G00-000   5712607G00000

5712607G00000

Unit Price

9
.BOLT

57127-07G00-000   5712707G00000

5712707G00000

Unit Price

10
.SCREW
.SCREW

02112-0520B-000   021120520B000

021120520B000

Unit Price

11
08310-0005A<br />.NUT
08310-0005A
.NUT

08310-0005B-000   083100005B000

083100005B000
Not available
12
GRIP

57211-21G10-000   5721121G10000

5721121G10000

Unit Price

13
LEVER SET, RR BRAKE

57501-27H00-000  

57501-27H01-000
 5750127H00000

Unit Price

14
LEVER SET, BRAKE
.LEVER

57620-27820-000   5762027820000

5762027820000

Unit Price

15
.BOLT, PIVOT

57431-09F00-000   5743109F00000

5743109F00000

Unit Price

16
.NUT
.NUT

08319-2106B-000   083192106B000

083192106B000

Unit Price

17
ADJUSTER, WIRE

57441-08C00-000  

57441-08C01-000
 5744108C00000

Unit Price

18
NUT, LOCK

57442-08C00-000  

57442-08C01-000
 5744208C00000

Unit Price

19
.BOLT
.BOLT

01547-0620B-000   015470620B000

015470620B000

Unit Price

20
.STOPPER, BRAKE LEVER

57790-38FA0-000   5779038FA0000

5779038FA0000

Unit Price

21
COVER, RR BRAKE LEVER

57541-38FA0-000  

57541-38FA1-000
 5754138FA0000

Unit Price

22
SWITCH ASSY, HANDLE, L
SWITCH ASSY, LH

37400-31G00-000   3740031G00000

3740031G00000

Unit Price

23
.SCREW

02112-0535B-000   021120535B000

021120535B000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the HANDGRIPS - LEVERS of your Suzuki of KINGQUAD. Let us know if you have any questions.

Genuine parts for Suzuki 500 KINGQUAD 2015

BODY/FRAME ELECTRICAL ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 500 KINGQUAD 2015

Select your Suzuki 2015 model

500 KINGQUAD 2015 LT-A500XP L4/LT-A500XPZ L4 (P17)

Suzuki KINGQUAD

Displacement: 500 cc
Year: 2015
Model code LT-A500XP L4 / LT-A500XPZ L4 (P17)
