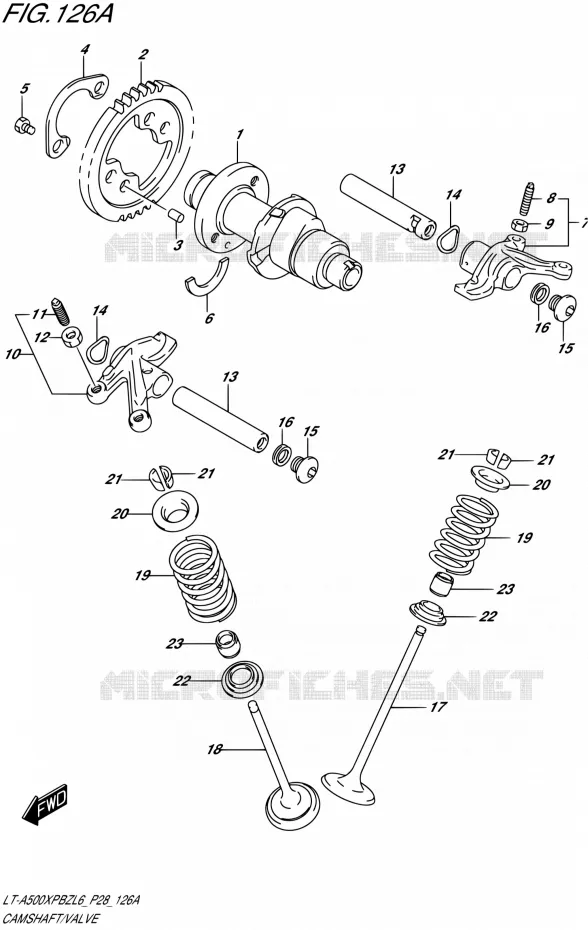

CAMSHAFT - VALVES FOR SUZUKI KINGQUAD 500 2016

TIMING

Item numbers

CAM SHAFT

12710-31H00-000 1271031H00000

$372,97

Unit Price

SPROCKET, CAMSHAFT
SPROCKET (NT:42)

12741-09F00-000 1274109F00000

$38,97

Unit Price

KNOCK PIN, SPROCKET
PIN (5X8)

09261-05005-000 0926105005000

$2,97

Unit Price

WASHER, SPROCKET
WASHER

12747-44B00-000 1274744B00000

$3,97

Unit Price

BOLT (6X10.5)

09100-06166-000 0910006166000

$3,97

Unit Price

C-RING, CAM SHAFT
C RING

09390-22002-000 0939022002000

$3,97

Unit Price

ARM, VALVE ROCKER INTAKE

12840-31H00-000 1284031H00000

$144,97

Unit Price

SCREW, TAPPET ADJUSTING
.SCREW

12842-17C50-000 1284217C50000

$19,97

Unit Price

NUT, TAPPET ADJUSTING
.NUT

12843-27A00-000 1284327A00000

$4,97

Unit Price

ARM, VALVE ROCKER EXHAUST

12850-31H00-000 1285031H00000

$155,97

Unit Price

SCREW, TAPPET ADJUSTING
.SCREW

12842-17C50-000 1284217C50000

$19,97

Unit Price

NUT, TAPPET ADJUSTING
.NUT

12843-27A00-000 1284327A00000

$4,97

Unit Price

SHAFT, VALVE ROCKER ARM INTAKE
SHAFT, ROCKER ARM

12861-14D50-000 1286114D50000

$30,97

Unit Price

WASHER, V LKR ARM SFT
WASHER

09164-12018-000 0916412018000

$2,97

Unit Price

09248-14011
PLUG (14X12)

09248-14012-000

Not available

GASKET, 13.8X18.8X0.4
GASKET (13.8X18.8X4.8)

09168-14002-000 0916814002000

$3,97

Unit Price

VALVE, INTAKE

12911-14D10-000 1291114D10000

$41,97

Unit Price

VALVE, EXHAUST

12912-14D01-000 1291214D01000

$58,97

Unit Price

SPRING, VALVE

12921-03G00-000 1292103G00000

$18,97

Unit Price

RETAINER, VALVE SPRING
RETAINER, SPRING

12931-27A20-000 1293127A20000

$10,97

Unit Price

COTTER, VALVE

12932-27A00-000 1293227A00000

$2,97

Unit Price

SEAT, VALVE SPRING
SEAT, SPRING

12933-81400-000 1293381400000

$7,97

Unit Price

OIL SEAL
OIL SEAL (5X10X9.7)

09289-05011-000 0928905011000

$10,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CAMSHAFT - VALVES of your Suzuki of KINGQUAD. Let us know if you have any questions.
