Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

DRIVESHAFT

FINAL BEVEL GEAR (FRONT) FOR SUZUKI KINGQUAD 500 2023

FINAL BEVEL GEAR (REAR)

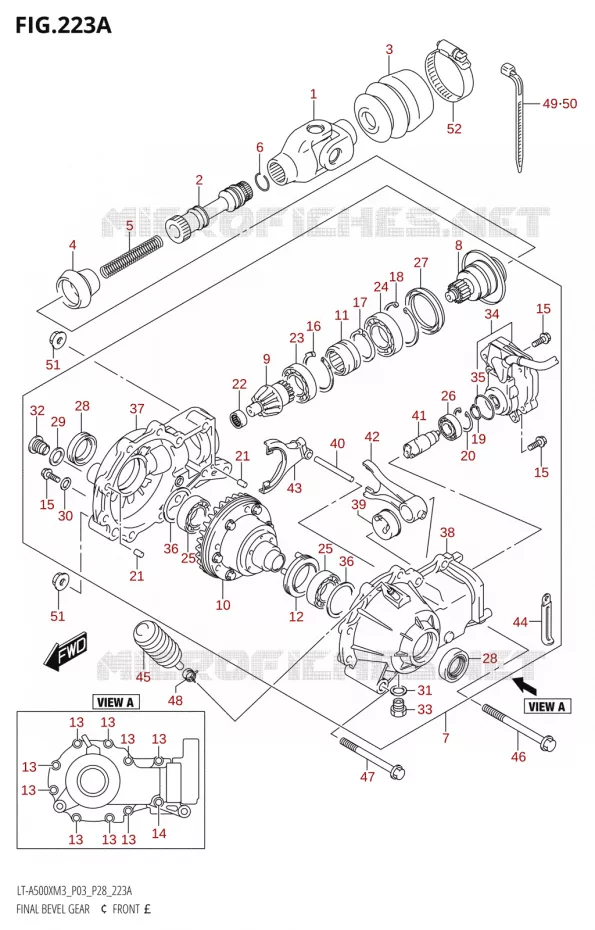

FINAL BEVEL GEAR (FRONT) Suzuki QUAD 500 KINGQUAD 2023 LT-A500X M3 (P03,P28,P33)
1
YOKE, FR PROPELLER SHAFT

27100-31G00-000   2710031G00000

2710031G00000

Unit Price

2
SHAFT, PROPELLER

27151-31G30-000   2715131G30000

2715131G30000

Unit Price

3
BOOT, FR PROP SHAFT YOKE
BOOT, FRONT PROP SHAFT YOKE

27153-31G22-000   2715331G22000

2715331G22000

Unit Price

4
BOOT, FR PROP SHAFT

27153-31G31-000  

27153-31G32-000
 2715331G31000

Unit Price

5
SPRING, FR PROPELLER SHAFT

27191-31G00-000   2719131G00000

2719131G00000

Unit Price

6
CIRCLIP PISTON PIN<br />CIRCLIP
CIRCLIP PISTON PIN
CIRCLIP

09381-20004-000   0938120004000

0938120004000

Unit Price

7
27400-31H04
CASE ASSY, FR DIFFERENTIAL

27400-31H03-000   2740031H03000

2740031H03000
Not available
8
DISCONTINUE
.SHAFT ASSY, INPUT

27130-31HA0-000   2713031HA0000

2713031HA0000
Not available
9
.PINION, DRIVE

27311-31HA0-000   2731131HA0000

2731131HA0000

Unit Price

10
.GEAR RING ASSY

27320-31HA0-000   2732031HA0000

2732031HA0000

Unit Price

11
.SLEEVE

27371-31HA0-000   2737131HA0000

2737131HA0000

Unit Price

12
PIN, SLEEVE DIFF LOCK
.SLEEVE DIFF LOCK

27381-31HA0-000   2738131HA0000

2738131HA0000

Unit Price

13
FLANGE BOLT, HEX HEA
.FLANGE BOLT, HEX HEAD

27401-31HA0-000   2740131HA0000

2740131HA0000

Unit Price

14
DISCONTINUE
.FLANGE BOLT, HEX HEAD

27401-31HB0-000   2740131HB0000

2740131HB0000
Not available
15
.FLANGE BOLT, HEX HEAD

27401-31HC0-000   2740131HC0000

2740131HC0000

Unit Price

16
RING, SNAP
.SNAP RING

27403-31HA0-000   2740331HA0000

2740331HA0000

Unit Price

17
RING, SNAP
.SNAP RING

27403-31HB0-000   2740331HB0000

2740331HB0000

Unit Price

18
RING, SNAP
.SNAP RING

27403-31HC0-000   2740331HC0000

2740331HC0000

Unit Price

19
.SNAP RING

27403-31HD0-000   2740331HD0000

2740331HD0000

Unit Price

20
RING, SNAP
.SNAP RING

27403-31HE0-000   2740331HE0000

2740331HE0000

Unit Price

21
.PIN

27404-31HA0-000   2740431HA0000

2740431HA0000

Unit Price

22
.BEARING, PINION

27405-31HA0-000   2740531HA0000

2740531HA0000

Unit Price

23
.BEARING

27405-31HB0-000   2740531HB0000

2740531HB0000

Unit Price

24
.BEARING

27405-31HC0-000   2740531HC0000

2740531HC0000

Unit Price

25
.BEARING

27405-31HD0-000   2740531HD0000

2740531HD0000

Unit Price

26
.BEARING

27405-31HE0-000   2740531HE0000

2740531HE0000

Unit Price

27
SEAL, OIL
.OIL SEAL

27406-31HA0-000   2740631HA0000

2740631HA0000

Unit Price

28
SEAL, OIL
.OIL SEAL

27406-31HB0-000   2740631HB0000

2740631HB0000

Unit Price

29
.WASHER

27407-31HA0-000   2740731HA0000

2740731HA0000

Unit Price

30
.WASHER

27407-31HB0-000   2740731HB0000

2740731HB0000

Unit Price

31
.WASHER

27407-31HC0-000   2740731HC0000

2740731HC0000

Unit Price

32
.PLUG

27409-31HA0-000   2740931HA0000

2740931HA0000

Unit Price

33
.PLUG

27409-31HB0-000   2740931HB0000

2740931HB0000

Unit Price

34
27421-31HA3
.CASE, MOTOR

27421-31HA2-000   2742131HA2000

2742131HA2000
Not available
35
..O RING

27406-31HC0-000   2740631HC0000

2740631HC0000

Unit Price

36
.SHIM SET

27445-31HA0-000   2744531HA0000

2744531HA0000

Unit Price

37
HOUSING, FINAL DRIVE
.CASE, FR DIFFERENTIAL

27451-31HA0-000   2745131HA0000

2745131HA0000

Unit Price

38
DIFFERENTIAL
.COVER BUSH, FR DIFFERENTIAL

27460-31HA0-000   2746031HA0000

2746031HA0000

Unit Price

39
CAM SHIFT
.CAM DIFFLOCK

27911-31HA0-000   2791131HA0000

2791131HA0000

Unit Price

40
.SHAFT, DIFFLOCK FORK

27913-31HA0-000   2791331HA0000

2791331HA0000

Unit Price

41
ROD SHIFT
.SHAFT, SCREW

27921-31HA0-000   2792131HA0000

2792131HA0000

Unit Price

42
FORK, FR DIFFERENTIALL
.FORK, FRONT DIFFERENTIAL

27940-31HA0-000   2794031HA0000

2794031HA0000

Unit Price

43
.FORK, DIFFLOCK

27950-31HA0-000   2795031HA0000

2795031HA0000

Unit Price

44
.CLAMP(L:65)

09404-08421-000   0940408421000

0940408421000

Unit Price

45
27491-38F10
CASE, BREATHER

27491-38F00-000   2749138F00000

2749138F00000
Not available
46
BOLT,ENG MOUNT L90<br />BOLT(10X90)
BOLT, ENG MOUNT L90
BOLT(10X90)

09103-10061-000   0910310061000

0910310061000

Unit Price

47
BOLT(10X110)

09103-10148-000   0910310148000

0910310148000

Unit Price

48
CLIP
CLIP

09401-08411-000  

0940108411000
Not available
49
BAND,WIRING HARNESS<br />CLAMP(L:125)
BAND, WIRING HARNESS
CLAMP(L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

50
BAND,WIRING HARNESS<br />CLAMP(L:125)
BAND, WIRING HARNESS
CLAMP(L:125)

09407-14403-000   0940714403000

0940714403000

Unit Price

51
NUT<br />NUT(M10)
NUT
NUT(M10)

09159-10115-000   0915910115000

0915910115000

Unit Price

52
CLAMP

09402-80501-000   0940280501000

0940280501000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FINAL BEVEL GEAR (FRONT) of your Suzuki KINGQUAD 500 AXI 4WD AUTOMATIC of KINGQUAD. Let us know if you have any questions.
