LEFT HAND REAR WHEEL

REAR CALIPER (MODEL K2) FOR SUZUKI VINSON 500 2002

REAR CALIPER (MODEL K3)

Item numbers

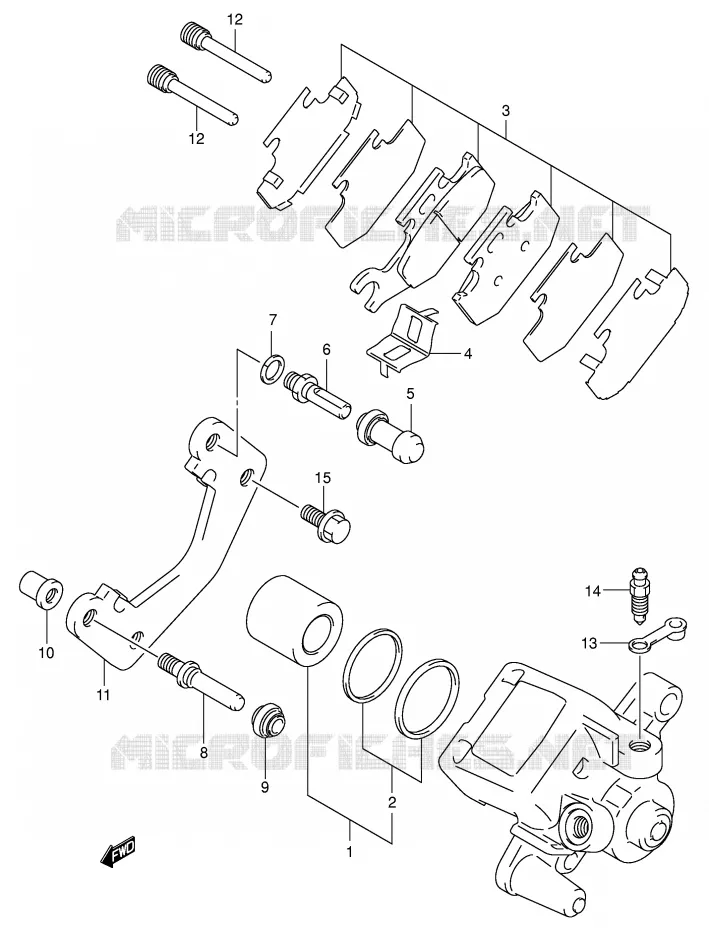

REAR CALIPER (MODEL K2) Suzuki QUAD 500 VINSON 2002 LT-A500FK2(E3/E28)

1

PISTON SET

69100-03830-000 6910003830000

$59,97

Unit Price

2

SEAL SET, PISTON

59100-38860-000 5910038860000

$18,97

Unit Price

3

DISCONTINUE
PAD/SHIM SET

69100-03841-000 6910003841000

Not available

4

SPRING, PAD

59315-27C10-000 5931527C10000

$14,97

Unit Price

5

BOOT

59386-13A00-000 5938613A00000

$10,97

Unit Price

6

BOLT, PIN
BOLT

59382-13A00-000 5938213A00000

$11,97

Unit Price

7

WASHER, WAVE
WASHER

59314-13A00-000 5931413A00000

$2,97

Unit Price

8

PIN, SLIDE
PIN

59387-00B20-000 5938700B20000

$23,97

Unit Price

9

BOOT

59303-14500-000 5930314500000

Not available

10

NUT

59388-00B20-000 5938800B20000

$18,97

Unit Price

11

DISCONTINUE
BRACKET

69151-03G00-000 6915103G00000

Not available

12

PIN, HOLDER
PIN

59345-00B20-000 5934500B20000

$18,97

Unit Price

13

BLEEDER

59121-01A00-000 5912101A00000

$12,97

Unit Price

14

CAP, BLEEDER

59122-01A00-000 5912201A00000

$6,97

Unit Price

15

BOLT

09103-08147-000 0910308147000

$14,97

Unit Price

99x

DISCONTINUE
CALIPER ASSY, REAR

69100-03G01-000 6910003G01000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
