RADIATOR HOSE - EXPANSION TANK

CLUTCH FOR SUZUKI VINSON 500 2002

TRANSMISSION (1)

Item numbers

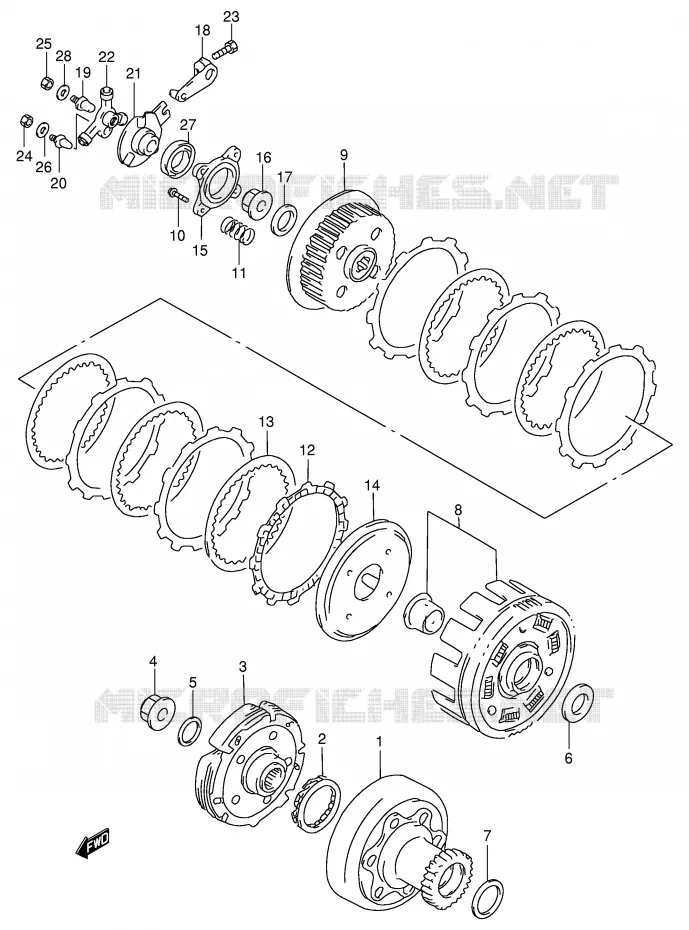

CLUTCH Suzuki QUAD 500 VINSON 2002 LT-F500FK2(E3/E28)
1
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
19
20
21
22
22
23
24
25
26
27
28
1
DISCONTINUE
HOUSING, STARTER CLUTCH

21120-44D50-000   2112044D50000

2112044D50000
Not available
2
CLUTCH, PRIMARY DRIVE ONE WAY
CLUTCH, PRI DRIVE ONE WAY

21273-44D00-000   2127344D00000

2127344D00000

Unit Price

3
SHOE, STARTER CLUTCH

21500-44D60-000  

21500-03G50-000
 2150044D60000

Unit Price

3
DISCONTINUE
SHOE, STARTER CLUTCH

21500-44D50-000   2150044D50000

2150044D50000
Not available
4
NUT, STARTER CLUTCH SHOE

21518-44D00-000   2151844D00000

2151844D00000

Unit Price

5
WASHER
WASHER, STARTER SHOE

09164-20007-000   0916420007000

0916420007000

Unit Price

6
WASHER
WASHER, PRIMARY DRIVEN

08211-22421-000   0821122421000

0821122421000

Unit Price

7
DISCONTINUE
WASHER, PRIMARY DRIVEN THR

09160-33009-000   0916033009000

0916033009000
Not available
8
GEAR ASSY, PRIMARY DRIVEN

21200-44830-000   2120044830000

2120044830000
Not available
9
HUB, CLUTCH SLEEVE

21411-44D00-000   2141144D00000

2141144D00000

Unit Price

10
BOLT(6X25)
BOLT, CLUTCH SPRING (6X25)

09103-06099-000   0910306099000

0910306099000

Unit Price

11
DISCONTINUE
SPRING, CLUTCH

21413-44D00-000   2141344D00000

2141344D00000
Not available
12
PLATE, CLUTCH DRIVE

21441-44D00-000   2144144D00000

2144144D00000

Unit Price

13
PLATE, CLUTCH DRIVEN

21451-44D00-000   2145144D00000

2145144D00000

Unit Price

14
DISC, CLUTCH PRESSURE
DISK, CLUTCH PRESSURE

21462-44D00-000   2146244D00000

2146244D00000

Unit Price

15
PLATE, CLUTCH RELEASE

21465-44D00-000   2146544D00000

2146544D00000

Unit Price

16
NUT, CLUTCH SLEEVE HUB

21414-44D00-000   2141444D00000

2141444D00000

Unit Price

17
WASHER
WASHER, CL SLEEVE HUB

09164-20007-000   0916420007000

0916420007000

Unit Price

18
DISCONTINUE
ARM, CLUTCH RELEASE

23220-44D00-000   2322044D00000

2322044D00000
Not available
19
BOLT, CLUTCH RLSE ADJ NO.1
BOLT, CLUTCH RLSE NO.1

23223-44D11-000   2322344D11000

2322344D11000

Unit Price

19
23223-44D11
BOLT, CLUTCH RLSE NO.1

23223-44D10-000   2322344D10000

2322344D10000
Not available
20
BOLT, CLUTCH RLSE ADJ NO.2
BOLT, CLUTCH RLSE NO.2

23224-44D00-000   2322444D00000

2322444D00000

Unit Price

21
DISCONTINUE
GUIDE, CL RELEASE ROLLER

23230-44D10-000   2323044D10000

2323044D10000
Not available
22
23250-44D01
ROLLER ASSY, CLUTCH RELEASE

23250-44D00-000   2325044D00000

2325044D00000
Not available
22
DISCONTINUE
ROLLER ASSY, CLUTCH RELEASE

23250-44D01-000   2325044D01000

2325044D01000
Not available
23
BOLT

01500-06203-000  

01500-0620A-000
 0150006203000

Unit Price

24
NUT
NUT, CLUTCH RELEASE NO.2

09140-06023-000   0914006023000

0914006023000

Unit Price

25
NUT

09140-08005-000  

09140-08017-000
 0914008005000

Unit Price

26
WASHER

09160-06079-000  

09160-06052-000
 0916006079000

Unit Price

27
BEARING, RH<br />BEARING, CLUTCH RLSE
BEARING, RH
BEARING, CLUTCH RLSE

08113-69050-000   0811369050000

0811369050000

Unit Price

28
WASHER(8X20X1)
WASHER, CLUTCH RLSE NO.1

09160-08103-000   0916008103000

0916008103000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!

Genuine parts for Suzuki 500 VINSON 2002
