TRANSMISSION (2)

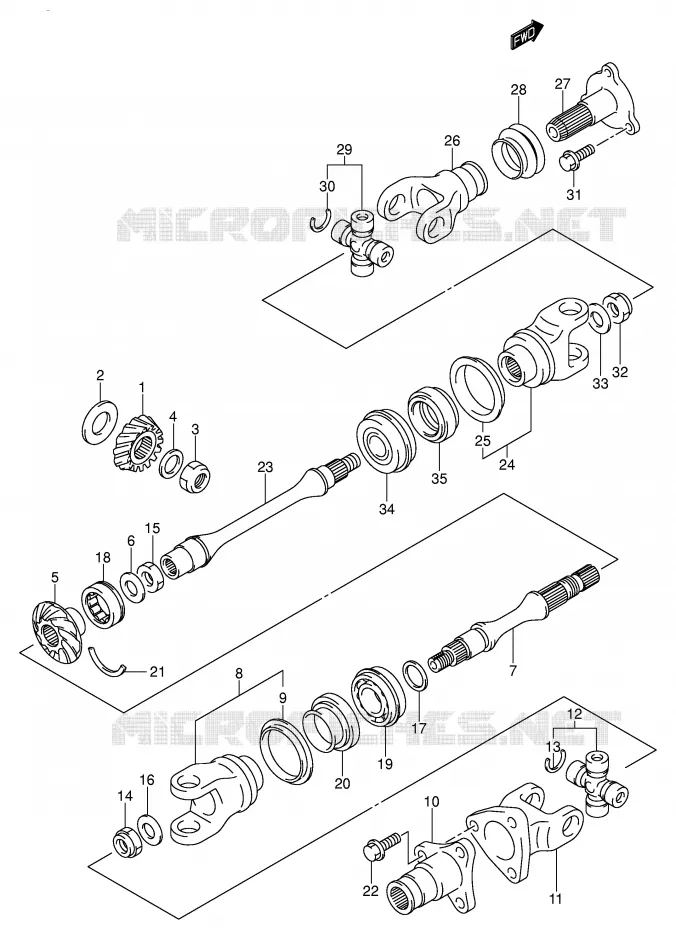

DRIVESHAFT FOR SUZUKI VINSON 500 2003

GEAR SHIFTING ASSY (1)

Item numbers

GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVE BEVEL

24911-44D11-000 2491144D11000

$162,97

Unit Price

SHIM SET, SEC DRIVE BEVEL

24935-19810-000

24935-03811-000

$131,97

Unit Price

NUT 20MM
NUT, SEC DRIVE BEVEL GR

09140-20012-000 0914020012000

$6,97

Unit Price

WASHER
WASHER, SEC DRIVE BEVEL GR

09164-20007-000 0916420007000

$6,97

Unit Price

GEAR, SECONDARY DRIVE BEVEL
GEAR, SEC DRIVEN BEVEL

24921-44D10-000 2492144D10000

$181,97

Unit Price

WASHER
WASHER, SEC DRIVEN GEAR

08211-22365-000 0821122365000

$7,97

Unit Price

SHAFT, SEC DRIVEN OUTPUT RR

24971-44D60-000 2497144D60000

$294,97

Unit Price

YOKE, RR DRIVE OUTPUT

27130-03G50-000 2713003G50000

$160,97

Unit Price

PLATE
PLATE, OUTPUT

27592-38F00-000 2759238F00000

$13,97

Unit Price

SHAFT, PROPELLER RR
SHAFT, PROPELLER REAR

27150-38F00-000 2715038F00000

$222,97

Unit Price

DISCONTINUE
YOKE, PROP SHAFT JOINT REAR

27161-03G00-000 2716103G00000

Not available

JOINT SET, UNIVERSAL RR

27200-73813-000

27200-73814-000

$73,97

Unit Price

RING, SNAP
CIRCLIP

09380-25005-000 0938025005000

$2,97

Unit Price

NUT
NUT, REAR OUTPUT JOINT

09159-16003-000 0915916003000

$6,97

Unit Price

NUT, PRIMARY SHAFT
NUT, SEC DRIVEN GEAR

09159-22005-000 0915922005000

$34,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER, REAR OUTPUT FRANGE

09160-16026-000 0916016026000

$6,97

Unit Price

SHIM(25X34X0.6)
SHIM, SEC DRIVEN

09181-25051-000 0918125051000

$5,97

Unit Price

SHIM(25X34X0.65)
SHIM, SEC DRIVEN

09181-25052-000 0918125052000

$5,97

Unit Price

SHIM(0.7)

09181-25053-000

09181-25160-000

$5,97

Unit Price

SHIM(25X34X0.75)
SHIM, SEC DRIVEN

09181-25054-000 0918125054000

$5,97

Unit Price

SHIM(0.8)

09181-25055-000

09181-25162-000

$4,97

Unit Price

SHIM(25X34X0.85)
SHIM, SEC DRIVEN

09181-25056-000 0918125056000

$5,97

Unit Price

SHIM(0.9)

09181-25057-000

09181-25164-000

$5,97

Unit Price

SHIM(25X34X0.95)
SHIM, SEC DRIVEN

09181-25058-000 0918125058000

$5,97

Unit Price

WASHER, 5TH DRIVE GEA

09181-25059-000

09181-25167-000

$5,97

Unit Price

SHIM(25X34X1.05)
SHIM, SEC DRIVEN

09181-25060-000 0918125060000

$5,97

Unit Price

SHIM(25X34X1.1)
SHIM, SEC DRIVEN

09181-25061-000 0918125061000

$4,97

Unit Price

SHIM(25X34X1.15)
SHIM, SEC DRIVEN

09181-25062-000 0918125062000

$4,97

Unit Price

SHIM(25X34X1.2)
SHIM, SEC DRIVEN

09181-25063-000 0918125063000

$4,97

Unit Price

BEARING
BRG, SEC DRIVEN GEAR, MDL

09263-30050-000 0926330050000

$68,97

Unit Price

BEARING, REAR OUTPUT

09267-25006-000

09267-25014-000

$113,97

Unit Price

OIL SEAL 34X52X14
OIL SEAL, DRIVEN SFT, RR

09283-34008-000 0928334008000

$30,97

Unit Price

C RING
RING, SEC DRIVEN BRG, MDL

09390-50002-000 0939050002000

$4,97

Unit Price

BOLT
BOLT, PROP SHAFT, RR

09103-10310-000 0910310310000

$6,97

Unit Price

DISCONTINUE
SHAFT, SEC DRIVEN, FR

24960-44D60-000 2496044D60000

Not available

YOKE, RR DRIVE OUTPUT
YOKE, FR DRIVE OUTPUT

27130-03G00-000 2713003G00000

$161,97

Unit Price

PLATE
PLATE, OUTPUT

27592-38F00-000 2759238F00000

$13,97

Unit Price

YOKE, PROP SHAFT JOINT
YOKE, PROP SFT JOINT, FR

27140-03G00-000 2714003G00000

$161,97

Unit Price

DISCONTINUE
SHAFT, PROPELLER

27150-03G50-000 2715003G50000

Not available

BOOT, PROPELLER SHAFT
BOOT, PROP SHAFT

27153-03G00-000 2715303G00000

$19,97

Unit Price

JOINT SET, UNIVERSAL

27200-19810-000

27200-19811-000

$73,97

Unit Price

CIRCLIP

09380-20016-000 0938020016000

$3,97

Unit Price

BOLT
BOLT, PROPELLER SHAFT

09103-10310-000 0910310310000

$6,97

Unit Price

NUT
NUT, FR DRIVE OUTPUT YOKE

09159-16003-000 0915916003000

$6,97

Unit Price

WASHER, SEC DRIVE**S1
WASHER, FR DRIVE OUTPUT YOKE

09160-16026-000 0916016026000

$6,97

Unit Price

BEARING, ROLLER KOYO
BRG, SEC DRIVEN OUTPUT SFT FR

09262-25006-000 0926225006000

$37,97

Unit Price

OIL SEAL 34X52X14
OIL SEAL, DRIVEN SFT, FR

09283-34008-000 0928334008000

$30,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
