WIRING HARNESS (MODEL K4 / K5) REFER TO FIG.34A(F-14) FOR MODEL K6/K7

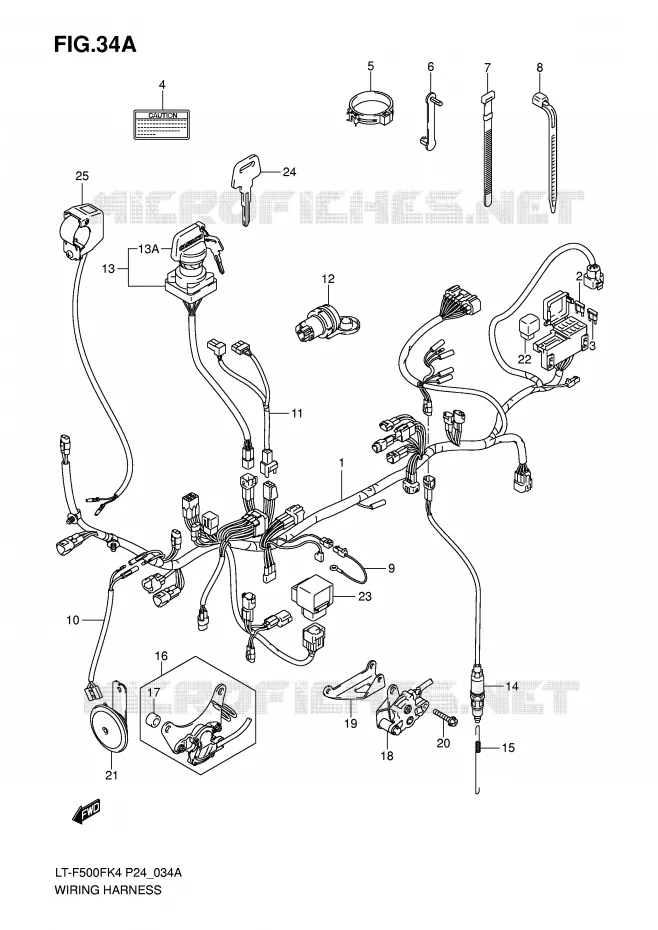

WIRING HARNESS (MODEL K6 / K7) FOR SUZUKI VINSON 500 2004

* CATALOG PREFACE *

Item numbers

HARNESS, WIRING
WIRING HARNESS

36610-03GA0-000 3661003GA0000

$586,97

Unit Price

FUSE (10A)

09481-10501-000

Not available

FUSE (15A)

09481-15501-000 0948115501000

$3,97

Unit Price

LABEL, CAUTION MAX AMP

38852-09F30-000 3885209F30000

$10,97

Unit Price

CLAMP

09403-20403-000 0940320403000

$5,97

Unit Price

CLAMP

09403-25401-000 0940325401000

$5,97

Unit Price

CLAMP

09407-03401-000 0940703401000

$5,97

Unit Price

FUEL HOSE CLAMP
CLAMP

09407-12402-000 0940712402000

$5,97

Unit Price

BAND, WIRING HARNESS
CLAMP (L:125)

09407-14403-000 0940714403000

$3,97

Unit Price

WIRE, REGULATOR EARTH LEAD
WIRE, IGNITION COIL

36851-05D00-000 3685105D00000

$8,97

Unit Price

DISCONTINUE
WIRE, HORN LEAD

36852-09F10-000 3685209F10000

Not available

DISCONTINUE
WIRE, FRONT BRAKE SWITCH LEAD

36854-03G00-000 3685403G00000

Not available

TERMINAL, POWER SOURCE

38850-03G00-000 3885003G00000

$94,97

Unit Price

SWITCH ASSY, IGNITION

37110-03G00-000

37110-03G01-000

$198,97

Unit Price

13A

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$9,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-38F01-000 3774038F01000

$109,97

Unit Price

SPRING

09443-06080-000 0944306080000

$10,97

Unit Price

DISCONTINUE
SWITCH ASSY, REVERSE

37600-03G00-000 3760003G00000

Not available

COLLAR

37609-03G00-000 3760903G00000

Not available

DISCONTINUE
SWITCH ASSY, GEAR INDICATOR

37670-03G00-000 3767003G00000

Not available

DISCONTINUE
BRACKET GEAR IND SWITCH

37674-03G10-000 3767403G10000

Not available

SCREW, GEAR SWITCH

02162-05303-000 0216205303000

Not available

HORN ASSY

38502-21E02-000 3850221E02000

$75,97

Unit Price

RELAY, NEUTRAL START

38730-09F00-000 3873009F00000

$44,97

Unit Price

RELAY ASSY, DRIVE

38750-03G00-000 3875003G00000

$172,97

Unit Price

KEY, BLANK (TYPE:C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK (TYPE:D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

KEY, BLANK (TYPE:E)

37146-19B20-000 3714619B20000

$12,97

Unit Price

KEY, BLANK (TYPE:F)

37146-19B30-000 3714619B30000

$12,97

Unit Price

SWITCH ASSY, HORN

37830-18A00-000

37830-27H00-000

$48,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
