FRONT FENDER (MODEL K6 / K7)

REAR FENDER (MODEL K4) FOR SUZUKI VINSON 500 2007

REAR FENDER (MODEL K5 / K6 / K7)

Item numbers

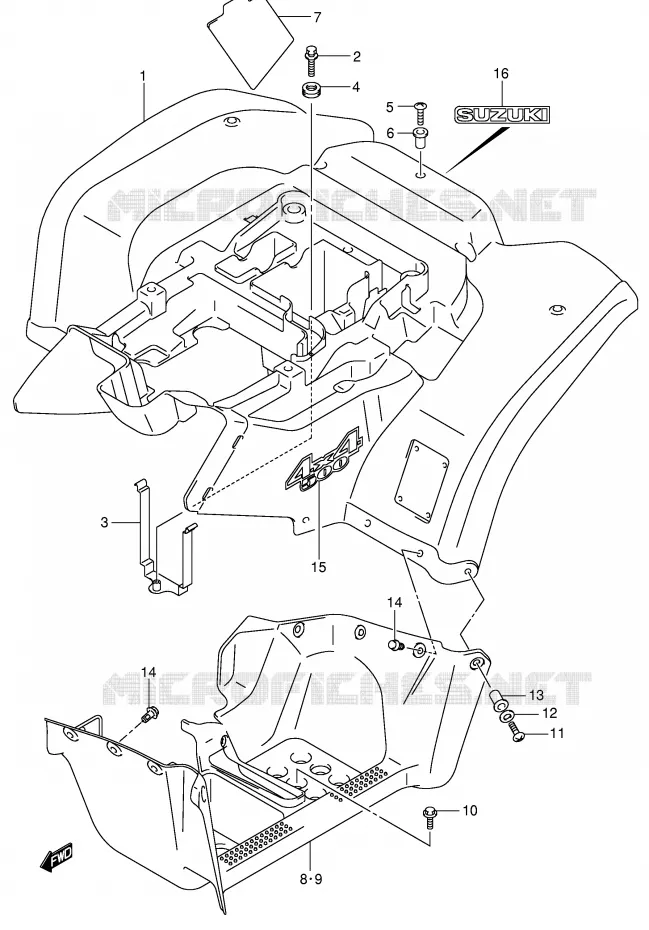

REAR FENDER (MODEL K4) Suzuki QUAD 500 VINSON 2007 LT-F500FK7(P24)
1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
14
15
16
1
63111-03G21-YT9
FENDER, REAR (RED)

63111-03G20-YT9   6311103G20YT9

6311103G20YT9
Not available
1
DISCONTINUE
FENDER, REAR (YELLOW)

63111-03G20-YU1   6311103G20YU1

6311103G20YU1
Not available
2
BOLT(6X30)
BOLT, CENTER

09112-06009-000   0911206009000

0911206009000

Unit Price

3
DISCONTINUE
BRACKET, REAR FENDER

63151-03G01-000   6315103G01000

6315103G01000
Not available
4
FUEL TANK CUSHIO****
CUSHION

09320-11008-000   0932011008000

0932011008000

Unit Price

5
SCREW

02142-05203-000  

02142-0520B-000
 0214205203000

Unit Price

6
NUT,WINDSCREEN
NUT, WINDSCREEN

09159-05019-000  

94618-48H10-000
 0915905019000

Unit Price

7
DISCONTINUE
SHIELD, HEAT

63261-03GF0-000   6326103GF0000

6326103GF0000
Not available
8
DISCONTINUE
MUDGUARD, FRONT RH (BLACK)

63331-03GF0-291   6333103GF0291

6333103GF0291
Not available
9
63341-03GF1-291
MUDGUARD, FRONT LH (BLACK)

63341-03GF0-291   6334103GF0291

6334103GF0291
Not available
10
BOLT 6X16.5

09111-06061-000  

0911106061000
Not available
11
SCREW

02142-05203-000  

02142-0520B-000
 0214205203000

Unit Price

12
WASHER, 5.5X20X1.4
WASHER

09160-05046-000   0916005046000

0916005046000

Unit Price

13
NUT,WINDSCREEN
NUT, WINDSCREEN

09159-05019-000  

94618-48H10-000
 0915905019000

Unit Price

14
CLIP, FENDER
CLIP

09409-08335-000   0940908335000

0940908335000

Unit Price

15
DISCONTINUE
EMBLEM, SIDE

68171-03G10-MV9   6817103G10MV9

6817103G10MV9
Not available
16
EMBLEM, 'SUZUKI'

68171-03G20-20H  

68171-03G21-20H
 6817103G2020H

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
