CYLINDER

CRANKCASE FOR SUZUKI VINSON 500 2009

CRANKCASE COVER

Item numbers

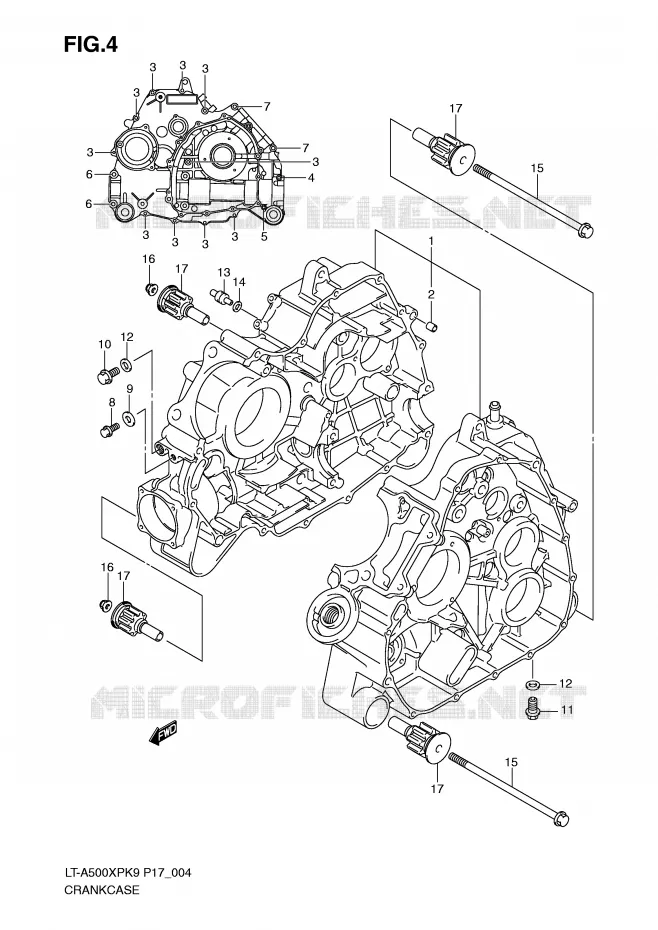

CRANKCASE Suzuki QUAD 500 VINSON 2009 LT-A500XPK9(P17)
1
2
3
3
3
3
3
3
3
3
3
3
4
5
6
6
7
7
8
9
10
11
12
12
13
14
15
15
16
16
17
17
17
17
1
CRANKCASE SET

11301-11870-000  

11301-11871-000
 1130111870000

Unit Price

2
PIN 11X16<br />PIN
PIN 11X16
PIN

04211-11169-000   0421111169000

0421111169000

Unit Price

3
BOLT

01547-0650B-000  

01547-0650A-000
 015470650B000

Unit Price

4
BOLT
BOLT

01547-0680B-000   015470680B000

015470680B000

Unit Price

5
BOLT
BOLT

01547-0690B-000   015470690B000

015470690B000

Unit Price

6
BOLT

01550-0850B-000   015500850B000

015500850B000

Unit Price

7
BOLT
BOLT

01550-0875B-000   015500875B000

015500875B000

Unit Price

8
BOLT<br />PLUG, OIL GALLERY
BOLT
PLUG, OIL GALLERY

01550-0812B-000   015500812B000

015500812B000

Unit Price

9
GASKET,8.2X14X1<br />GASKET
GASKET, 8.2X14X1
GASKET

09168-08016-000   0916808016000

0916808016000

Unit Price

10
PLUG
PLUG, OIL GALLERY

09247-12006-000   0924712006000

0924712006000

Unit Price

11
PLUG, T.D.C.

09247-12102-000  

09247-12104-000
 0924712102000

Unit Price

12
GASKET OIL GALLERY<br />GASKET
GASKET OIL GALLERY
GASKET

09168-12002-000   0916812002000

0916812002000
Not available
13
JET,OIL GALLERY<br />JET, T/M OIL GALLERY
JET, OIL GALLERY
JET, T/M OIL GALLERY

09493-20014-000   0949320014000

0949320014000

Unit Price

14
O-RING
O-RING

09280-04004-000   0928004004000

0928004004000

Unit Price

15
BOLT, ENG MTG, L195
BOLT, ENG MTG (10X195)

09103-10118-000   0910310118000

0910310118000

Unit Price

16
NUT<br />NUT, ENG MTG
NUT
NUT, ENG MTG

09159-10115-000   0915910115000

0915910115000

Unit Price

17
BUSH, ENGINE MOUNTING
BUSH, ENG MTG

11651-31G10-000   1165131G10000

1165131G10000

Unit Price
