CRANKCASE

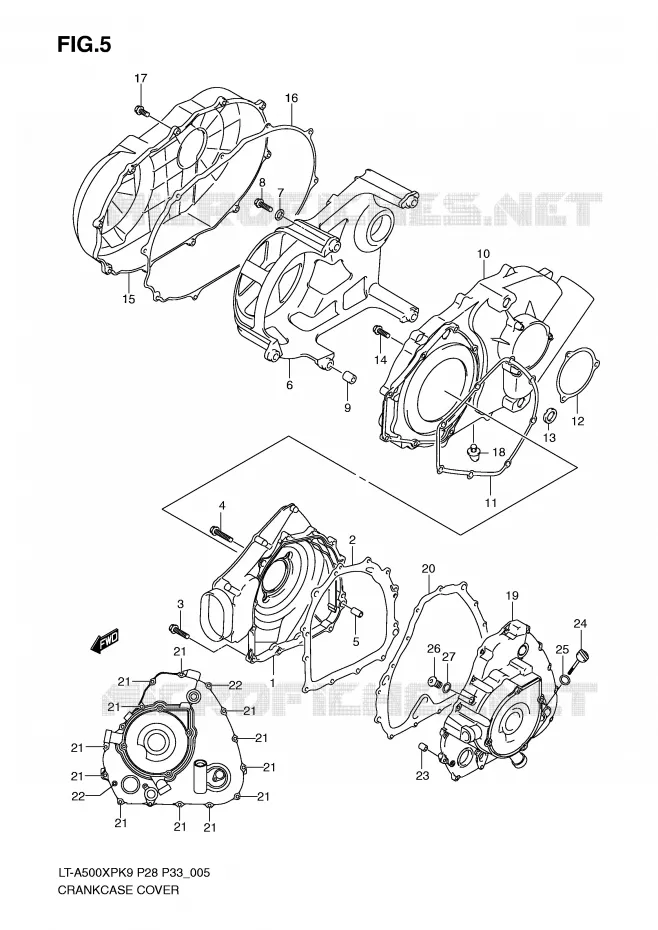

CRANKCASE COVER FOR SUZUKI VINSON 500 2009

V-BELT COOLING DUCT

Item numbers

COVER, CLUTCH

11341-11H00-000 1134111H00000

$218,97

Unit Price

GASKET, CLUTCH COVER
GASKET

11482-11H00-000 1148211H00000

$17,97

Unit Price

BOLT

01547-0625B-000 015470625B000

$3,97

Unit Price

BOLT

01547-0635B-000 015470635B000

$4,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

HOUSING, V-BELT BEARING
HOUSING, BELT BEARING

11342-11H00-000 1134211H00000

$302,97

Unit Price

GASKET, V-BELT BEARING HOUSING

11488-11H00-000

11488-11H01-000

$4,97

Unit Price

BOLT

01547-0635B-000 015470635B000

$4,97

Unit Price

04211-09149-000 0421109149000

$2,97

Unit Price

COVER, V BELT INNER
COVER, BELT INNER

11370-11H00-000 1137011H00000

$177,97

Unit Price

GASKET, V-BELT COVER INNER FR

11484-11H00-000

11484-11H01-000

$28,97

Unit Price

GASKET, V-BELT COVER INNER RR
GASKET

11485-31G00-000 1148531G00000

$11,97

Unit Price

GASKET, V-BELT COVER INNER HOLE

11487-11H00-000

11487-11H01-000

$5,97

Unit Price

BOLT

01547-0625B-000 015470625B000

$3,97

Unit Price

COVER, V BELT OUTER
COVER, BELT OUTER

11380-11H00-000 1138011H00000

$163,97

Unit Price

GASKET, V-BELT COVER OUTER

11486-11H00-000

11486-11H01-000

$30,97

Unit Price

BOLT

01547-0625B-000 015470625B000

$3,97

Unit Price

PLUG, WATER DRAIN

11375-31G00-000 1137531G00000

$5,97

Unit Price

COVER, MAGNETO

11350-11H10-000 1135011H10000

$320,97

Unit Price

GASKET, MAGNETO COVER
GASKET

11483-11H00-000 1148311H00000

$33,97

Unit Price

BOLT

01547-0625B-000 015470625B000

$3,97

Unit Price

BOLT

01547-0635B-000 015470635B000

$4,97

Unit Price

PIN 11X16
PIN

04211-11169-000 0421111169000

$2,97

Unit Price

GAUGE, OIL LEVEL

11971-09F50-000 1197109F50000

$14,97

Unit Price

O-RING, OIL FILLER
O RING

09280-17003-000 0928017003000

$2,97

Unit Price

09248-14011
PLUG, TDC CHECK

09248-14012-000

Not available

GASKET

09168-14014-000 0916814014000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
