TAIL LIGHT

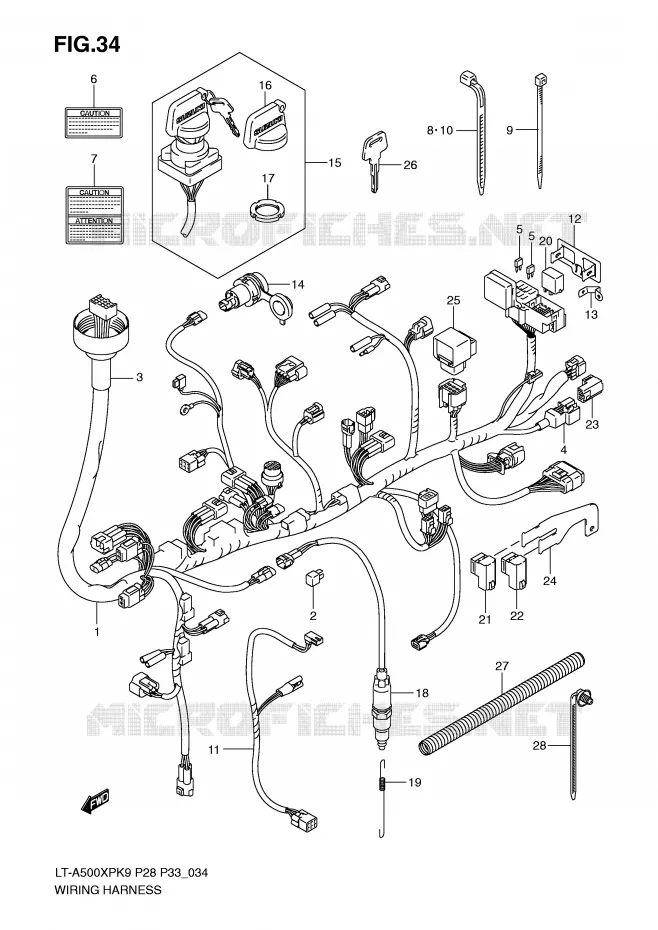

WIRING HARNESS FOR SUZUKI VINSON 500 2010

* CATALOG PREFACE *

Item numbers

36610-31H34
HARNESS, WIRING

36610-31H30-000 3661031H30000

Not available

RECTIFIER ASSY

32800-16A00-000 3280016A00000

$27,97

Unit Price

DISCONTINUE
COVER

36618-31G00-000 3661831G00000

Not available

COVER, CONNECTOR
BOOT

36618-31G10-000 3661831G10000

$14,97

Unit Price

FUSE (15A)

09481-15501-000 0948115501000

$3,97

Unit Price

FUSE (10A)

09481-10501-000

Not available

LABEL, CAUTION MAX AMP

38852-09F30-000 3885209F30000

$10,97

Unit Price

LABEL, CAUTION MAX AMP

38852-03G10-000 3885203G10000

$14,97

Unit Price

BAND, WIRING HARNESS

09407-11401-000

09407-14403-000

$3,97

Unit Price

CLAMP
CLAMP (L:235)

09407-25401-000 0940725401000

$8,97

Unit Price

CLAMP
CLAMP (L:145)

09407-14407-000 0940714407000

$5,97

Unit Price

CLAMP

09407-19401-000

09407-22403-000

$3,97

Unit Price

WIRE, FR BRAKE SW LEAD
WIRE, FRONT BRAKE SW LEAD

36855-38F10-000 3685538F10000

$53,97

Unit Price

DISCONTINUE
BRACKET, FUSE

36744-31G00-000 3674431G00000

Not available

BRACKET, FUSE

36744-31G10-000 3674431G10000

$13,97

Unit Price

TERMINAL, POWER SOURCE

38850-03G10-000 3885003G10000

$72,97

Unit Price

SWITCH ASSY, IGNITION

37110-38F00-000

37110-38F01-000

$106,97

Unit Price

MASCOT, KEY

37142-19B00-000

37142-19B01-000

$9,97

Unit Price

NUT, IGNITION SWITCH
NUT

37112-24500-000 3711224500000

$13,97

Unit Price

SWITCH ASSY, STOP LAMP

37740-38F01-000 3774038F01000

$109,97

Unit Price

SPRING
SPRING, STOP LAMP

09443-06080-000 0944306080000

$10,97

Unit Price

RELAY, NEUTRAL START

38730-09F00-000 3873009F00000

$44,97

Unit Price

RELAY ASSY, DEF LOCK

38740-31G01-000

38740-31G02-000

$57,97

Unit Price

RELAY ASSY, DEF LOCK

38740-31G01-000

38740-31G02-000

$57,97

Unit Price

RELAY ASSY, DEF LOCK

38740-31G01-000

38740-31G02-000

$57,97

Unit Price

DISCONTINUE
BRACKET, RELAY

38741-31G20-000 3874131G20000

Not available

RELAY ASSY, DRIVE

38750-31G00-000 3875031G00000

$160,97

Unit Price

KEY, BLANK(TYPE:C)
KEY, BLANK TYPE (C)

37146-19B00-000 3714619B00000

$12,97

Unit Price

KEY, BLANK(TYPE:D)
KEY, BLANK TYPE (D)

37146-19B10-000 3714619B10000

$12,97

Unit Price

GUIDE, WIRING HARNESS

36619-31G00-000 3661931G00000

$16,97

Unit Price

CLAMP
CLAMP (L:154)

09407-17403-000 0940717403000

$8,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
When adding a part to your cart, be careful to order the required quantity. Please note that the unit price indicated is the price for each part number in quantity 1.
Our parts are original and brand new spare parts of Suzuki, to guarantee you quality and durable components. If you have any questions, we are here to help. Order your spare parts today and receive them directly at home!
