Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

TRANSMISSION

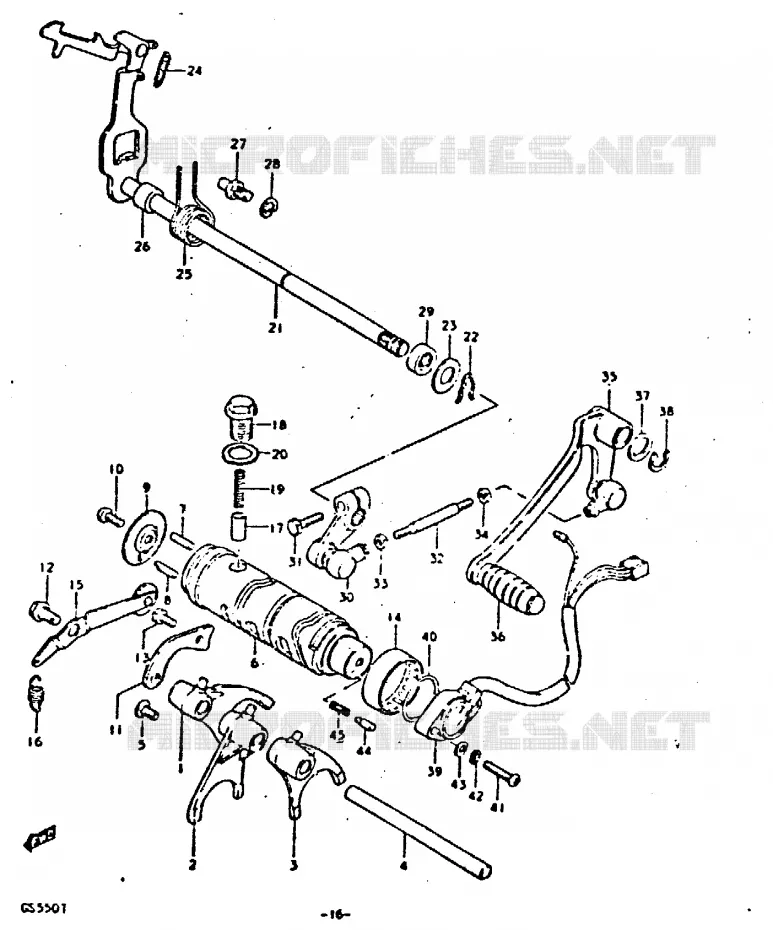

GEAR SHIFTING ASSY FOR SUZUKI GS 550 1980

FUEL COCK

FORK, GEAR SHIFT NO.1
FORK, GEAR SHIFTING NO.1

25211-44001-000 2521144001000

$94,97

Unit Price

FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFTING NO.2

25221-44001-000 2522144001000

$94,97

Unit Price

FORK, GEAR SHIFT NO.2
FORK, GEAR SHIFTING NO.3

25231-44000-000 2523144000000

$94,97

Unit Price

SHAFT, GEAR SHIFTING FORK

25411-31000-000 2541131000000

Not available

SCREW

02142-06108-000

02142-06107-000

$3,97

Unit Price

CAM, GEAR SHIFTING

25311-47000-000 2531147000000

Not available

PIN(4X18.5)
PIN

09261-04001-000 0926104001000

$2,97

Unit Price

09209-04013-000 0920904013000

$7,97

Unit Price

RETAINER, GEAR SHIFT CAM DR PIN
HOLDER, DRIVE PIN

25322-44000-000 2532244000000

$4,97

Unit Price

.SCREW

02112-06168-000 0211206168000

Not available

GUIDE, CAM

25341-44000-000 2534144000000

Not available

BOLT

09111-06019-000

09111-06054-000

$4,97

Unit Price

BOLT, FRONT

01107-06128-000 0110706128000

Not available

BEARING(40X47X12)
BEARING

09263-40001-000 0926340001000

$46,97

Unit Price

STOPPER, GEAR SHIFT CAM NO.1
STOPPER, CAM NO.1

25350-44000-000 2535044000000

$19,97

Unit Price

SPRING

09443-09007-000 0944309007000

$20,97

Unit Price

STOPPER, GEAR SHIFT CAM NO.2
STOPPER, CAM NO.2

25351-30010-000 2535130010000

$14,97

Unit Price

HOLDER, GEAR SHIFT CAM STOP SPR
HOLDER, SPRING

25354-30000-000 2535430000000

$11,97

Unit Price

SPRING

09440-06014-000 0944006014000

Not available

SPARK PLUG GASKET
GASKET

09168-14004-000 0916814004000

$2,97

Unit Price

SHAFT, GEAR SHIFTING

25510-47000-000 2551047000000

Not available

CIRCLIP

09384-12001-000

08331-3112A-000

$2,97

Unit Price

WASHER

09160-12020-000

09160-12089-000

$3,97

Unit Price

SPRING

09443-07013-000 0944307013000

$2,97

Unit Price

SHAFT RETURN SPRING

09444-26012-000

09444-26013-000

$5,97

Unit Price

SPACER(12X20X15.3)
SPACER

09180-12068-000 0918012068000

$4,97

Unit Price

STOPPER, GEAR SHIFT ARM

25671-01000-000

25671-01011-000

$6,97

Unit Price

LOCK WASHER

09162-08005-000 0916208005000

Not available

09285-12006
OIL SEAL

09285-12002-000

Not available

ARM GEAR SHIFT LINK

25520-47000-000

25520-47001-000

$79,97

Unit Price

BOLT, ADJUSTER

01107-06208-000 0110706208000

Not available

DISCONTINUE

25525-47000-000

Not available

NUT FIG.42 (H-4) : E16, E18, E22,

08310-11068-000 0831011068000

Not available

GR SHFT LINK ROD NUT
NUT, LH

09140-06011-000 0914006011000

$2,97

Unit Price

LEVER ASSY, GEAR SHIFTING

25600-47000-000 2560047000000

Not available

RUBBER, GEAR SHIFT PEDAL

25652-16500-000

25652-16510-000

$7,97

Unit Price

SEAL WASHER
WASHER

09160-12011-000

Not available

CIRCLIP

08331-31128-000

08331-3112A-000

$2,97

Unit Price

TERMINAL BASE ASSY, GEAR SHIFT
BODY, GEAR SHIFTING SWITCH

37720-45100-000 3772045100000

$149,97

Unit Price

O RING

09280-26003-000

Not available

SCREW

02112-05208-000

02112-75207-000

$3,97

Unit Price

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

LOCK WASHER

08322-21058-000 0832221058000

Not available

K S PAWL ROLLER
CONTACT

09209-05011-000 0920905011000

$3,97

Unit Price

K S PAWL SPRING
SPRING

09440-04010-000 0944004010000

$2,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the GEAR SHIFTING ASSY of your Suzuki of GS. Let us know if you have any questions.

Select your Suzuki 1980 model
