CARBURETOR FOR SUZUKI GS 550 1981

AIR FILTER

CARBURETOR, NO.1

13201-47090-000 1320147090000

Not available

CARBURETOR, NO.2

13202-47090-000 1320247090000

Not available

CARBURETOR, NO.3

13203-47090-000 1320347090000

Not available

CARBURETOR, NO.4

13204-47090-000 1320447090000

Not available

DISCONTINUED

13500-47070-000 1350047070000

Not available

CLIP, NEEDLE
E RING

13394-31210-000 1339431210000

$6,97

Unit Price

RING

13387-44030-000 1338744030000

$9,97

Unit Price

DISCONTINUE
GUIDE HOLDER

13389-44030-000 1338944030000

Not available

SPRING

13503-47070-000 1350347070000

Not available

DISCONTINUE
CLIP

13581-44030-000 1358144030000

Not available

NEEDLE, JET (5F42-3)

13383-47090-000 1338347090000

Not available

GASKET

13557-95210-000 1355795210000

Not available

CAP

13578-47070-000 1357847070000

$9,97

Unit Price

NUT

08310-12088-000

08310-00087-000

$3,97

Unit Price

WASHER

13606-47070-000 1360647070000

Not available

SPRING

13573-47070-000 1357347070000

Not available

SHAFT

13550-47070-000 1355047070000

Not available

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

DISCONTINUED

13200-47090-000 1320047090000

Not available

SHAFT

13550-47080-000 1355047080000

Not available

13563-47070-000 1356347070000

Not available

SPRING

13573-47070-000 1357347070000

Not available

LEVER

13553-47070-000 1355347070000

Not available

LEVER

13555-47070-000 1355547070000

Not available

SPRING

13573-47080-000 1357347080000

Not available

..SHAFT

13550-47090-000 1355047090000

Not available

.SEAT

13556-31210-000 1355631210000

Not available

E RING

13617-44080-000 1361744080000

$5,97

Unit Price

GASKET, THROTTLE SHAFT
GASKET

13557-47070-000 1355747070000

$7,97

Unit Price

NUT

13607-47070-000 1360747070000

$5,97

Unit Price

SCREW

13605-47080-000 1360547080000

$9,97

Unit Price

DISCONTINUED

13605-44100-000 1360544100000

Not available

SCREW

13604-44080-000 1360444080000

$6,97

Unit Price

VALVE, THROTTLE (135)

13551-47090-000 1355147090000

Not available

DISCONTINUE
GASKET

13258-44080-000 1325844080000

Not available

GASKET, FLOAT CHAMBER

13251-44080-000

13251-44081-H17

$18,97

Unit Price

WASHER

13382-44030-000 1338244030000

$6,97

Unit Price

SPRING

13388-44030-000 1338844030000

$10,97

Unit Price

DISCONTINUED

09492-40008-000 0949240008000

Not available

PLUG, NEEDLE JET
PLUG

13357-44080-000 1335744080000

$8,97

Unit Price

JET, NEEDLE (X-6)

09494-00269-000 0949400269000

Not available

WASHER

13332-44080-000

13382-03110-000

$4,97

Unit Price

DISCONTINUED

09491-92001-000 0949192001000

Not available

PLUG, DRAIN
SCREW

13247-44080-000 1324744080000

$16,97

Unit Price

O RING

12246-44080-000 1224644080000

Not available

FLOAT

13250-44080-000 1325044080000

$45,97

Unit Price

..SCREW

02111-04067-000 0211104067000

Not available

PLATE

13373-39110-000 1337339110000

$10,97

Unit Price

PIN, FLOAT
PIN

13254-92311-000 1325492311000

$3,97

Unit Price

..VALVE, NEEDLE

13370-44080-000 1337044080000

Not available

O RING, NEEDLE VALVE SEAT

13374-44080-000

13374-35C00-000

$7,97

Unit Price

..FILTER

13376-44080-000 1337644080000

Not available

SCREW

02112-05128-000

02112-05127-000

$3,97

Unit Price

SPRING

13268-44010-000 1326844010000

Not available

13575-47070-000 1357547070000

Not available

BRACKET

13627-47070-000 1362747070000

Not available

SPRING

13271-93011-000 1327193011000

$7,97

Unit Price

DISCONTINUE
ADJUSTER

13267-47070-000 1326747070000

Not available

DISCONTINUE
BUSH

13276-31210-000 1327631210000

Not available

BRACKET

13627-44090-000 1362744090000

Not available

PLATE

13421-47070-000 1342147070000

Not available

BOLT (5*10)

01104-05108-000 0110405108000

Not available

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

..E RING

13415-47070-000 1341547070000

Not available

WASHER

13523-98010-000 1352398010000

Not available

LEVER

13422-47070-000 1342247070000

Not available

DISCONTINUED

13624-47070-000 1362447070000

Not available

ROD, STARTER LEVER

13425-47070-000 1342547070000

Not available

JET, PILOT AIR (120)

09493-24005-000 0949324005000

Not available

SCREW

02112-05168-000

02112-05167-000

$2,97

Unit Price

WASHER, LOCK

08321-21058-000

08321-0105A-000

$2,97

Unit Price

SHAFT

13550-47100-000 1355047100000

Not available

WASHER

13589-47070-000 1358947070000

$2,97

Unit Price

LEVER

13422-44080-000 1342244080000

Not available

DISCONTINUE
SCREW

13605-47070-000 1360547070000

Not available

DISCONTINUED

13410-47070-000 1341047070000

Not available

DISCONTINUED

13628-47070-000 1362847070000

Not available

SCREW, INTAKE PORT

02112-05088-000 0211205088000

Not available

DISCONTINUED

13683-31610-000 1368331610000

Not available

NIPPLE

13685-47070-000 1368547070000

$41,97

Unit Price

.HOSE

13683-47070-000 1368347070000

Not available

NIPPLE

13685-47080-000 1368547080000

Not available

SCREW

02112-06128-000

02112-06127-000

$3,97

Unit Price

DISCONTINUE
NIPPLE

13685-47090-000 1368547090000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.

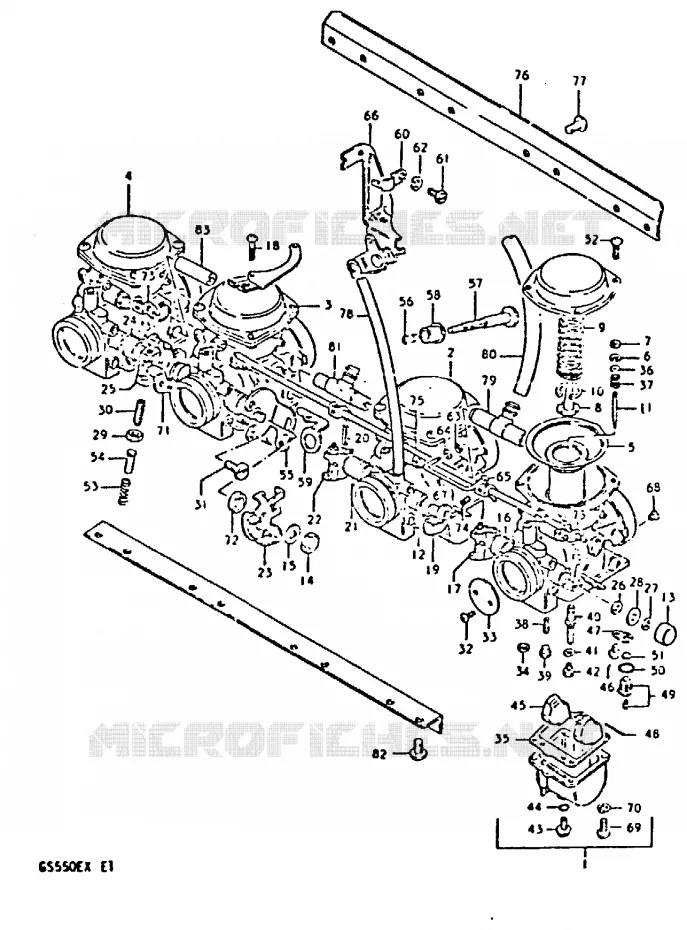

Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CARBURETOR of your Suzuki of GS. Let us know if you have any questions.
