CYLINDER HEAD COVER

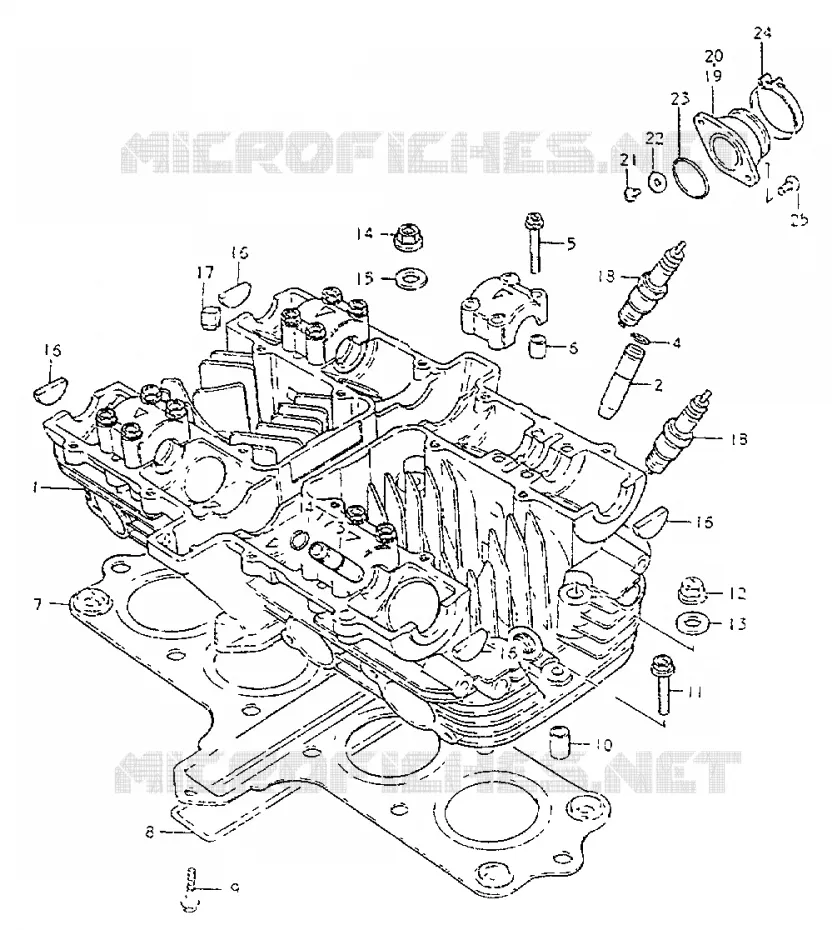

CYLINDER HEAD FOR SUZUKI GS 550 1982

CYLINDER *GASKET SET : FIG.65 (1-9)

DISCONTINUED

11100-47870-000 1110047870000

Not available

DISCONTINUE
GUIDE, INTAKE VALVE

11115-47740-000 1111547740000

Not available

GUIDE, EXHAUST VALVE

11116-47740-000 1111647740000

$41,97

Unit Price

RING, SNAP
RING, VALVE GUIDE

09381-10003-000 0938110003000

$5,97

Unit Price

CAM SFT HOUSING BOLT
BOLT

09103-06026-000 0910306026000

$2,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

DISCONTINUED

11141-47084-000 1114147084000

Not available

DISCONTINUE
O RING

09280-99003-000 0928099003000

Not available

BOLT

01517-06308-000 0151706308000

Not available

DOWEL PIN
PIN

04211-11189-000 0421111189000

$3,97

Unit Price

BOLT

01517-06458-000

01550-06457-000

$4,97

Unit Price

CYLINDER HEAD NUT
NUT

09159-08029-000 0915908029000

$12,97

Unit Price

DISCONTINUED

09168-08009-000 0916808009000

Not available

NUT

09159-08031-000

09159-08034-000

$2,97

Unit Price

WASHER(8.5X19X2.3)
WASHER

09160-08039-000 0916008039000

$2,97

Unit Price

CYLINDER HEAD PLUG
PLUG, SIDE

09241-23002-000 0924123002000

$14,97

Unit Price

PAD

11152-45000-000

11152-38A00-000

$5,97

Unit Price

SPARK PLUG (ND, W24ES-U)

09482-00196-000 0948200196000

Not available

DISCONTINUED

09482-00225-000 0948200225000

Not available

PIPE, INTAKE, R

13110-47010-000

13110-47011-000

$78,97

Unit Price

DISCONTINUE
PIPE, INTAKE LH

13120-47010-000

Not available

SCREW, INTAKE PORT

09106-05006-000 0910605006000

Not available

LOCK WASHER

08322-21058-000 0832221058000

Not available

DISCONTINUED

09280-38003-000 0928038003000

Not available

INLET HOSE CLAMP
CLAMP

09402-52306-000 0940252306000

$11,97

Unit Price

.SCREW

02112-06168-000 0211206168000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki of GS. Let us know if you have any questions.
