CLUTCH

TRANSMISSION FOR SUZUKI GS 550 1982

GEAR SHIFTING ASSY

COUNTERSHAFT (NT:12)

24121-47001-000 2412147001000

Not available

GEAR, 2ND DRIVE (NT:18)

24221-47000-000 2422147000000

Not available

DISCONTINUE
CIRCLIP

09380-25006-000 0938025006000

Not available

GEAR, 3/4 DRIVE (NT:21/23)

24231-47000-000 2423147000000

Not available

GEAR, 5TH DRIVE (NT:22)

24250-47000-000 2425047000000

Not available

WASHER, 5TH DRIVE GEA

08211-25341-000

09181-25167-000

$5,97

Unit Price

DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000 0938025010000

$5,97

Unit Price

GEAR, 6TH DRIVE (NT:23)

24261-47000-000 2426147000000

Not available

WASHER

09167-25012-000 0916725012000

$4,97

Unit Price

DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000 0938025010000

$5,97

Unit Price

BEARING(25X62X17)
BALL BEARING (25X62X17)

09262-25051-000 0926225051000

$84,97

Unit Price

C-RING

09390-62006-000

09390-62012-000

$11,97

Unit Price

DISCONTINUED

09263-20029-000 0926320029000

Not available

PIN 7 X 12
PIN

04221-07129-000 0422107129000

$3,97

Unit Price

HOLDER, BEARING

24741-44000-000 2474144000000

Not available

.SCREW

02122-06168-000 0212206168000

Not available

DRIVESHAFT

24100-44810-000 2410044810000

Not available

DISCONTINUED

24310-47000-000 2431047000000

Not available

WASHER

08211-20341-000 0821120341000

$3,97

Unit Price

GEAR, 2ND DRIVEN (NT:32)

24320-44002-000 2432044002000

Not available

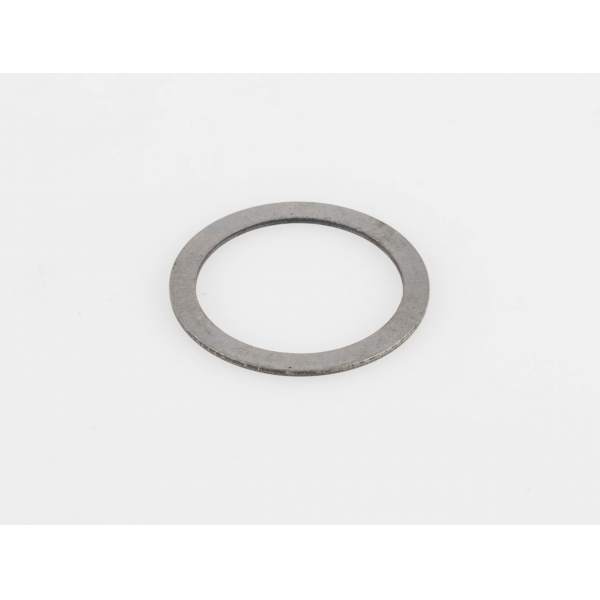

WASHER

08211-25321-000 0821125321000

$4,97

Unit Price

DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000 0938025010000

$5,97

Unit Price

GEAR, 3RD DRIVEN (NT:29)

24330-47000-000 2433047000000

Not available

WASHER

09167-25012-000 0916725012000

$4,97

Unit Price

LOCK WASHER

09167-25013-000 0916725013000

$4,97

Unit Price

DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000 0938025010000

$5,97

Unit Price

GEAR, 4TH DRIVEN (NT:27)

24340-47000-000 2434047000000

Not available

WASHER

09167-25012-000 0916725012000

$4,97

Unit Price

LOCK WASHER

09169-25001-000 0916925001000

$3,97

Unit Price

DRIVEN GEAR CIRCLIP
CIRCLIP

09380-25010-000 0938025010000

$5,97

Unit Price

GEAR, 5TH DRIVEN (NT:23)

24351-47001-000 2435147001000

Not available

DISCONTINUED

24361-47000-000 2436147000000

Not available

C-RING

09390-62006-000

09390-62012-000

$11,97

Unit Price

OIL SEAL

09283-32015-000 0928332015000

$24,97

Unit Price

BEARING(20X34X17)

09263-20028-000

09263-20027-000

$58,97

Unit Price

OIL SEAL

09282-32002-000 0928232002000

$20,97

Unit Price

SPROCKET, ENGINE(15T)

27511-47000-000

27511-47B00-000

$51,97

Unit Price

DISCONTINUE
NUT

09140-20009-000 0914020009000

Not available

WASHER, LOCK

09167-25011-000

09167-25019-000

$3,97

Unit Price

DISCONTINUED

27600-47021-000 2760047021000

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TRANSMISSION of your Suzuki of GS. Let us know if you have any questions.
