Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

CYLINDER

CRANKCASE FOR SUZUKI BANDIT 600 1997

CRANKCASE COVER

Item numbers

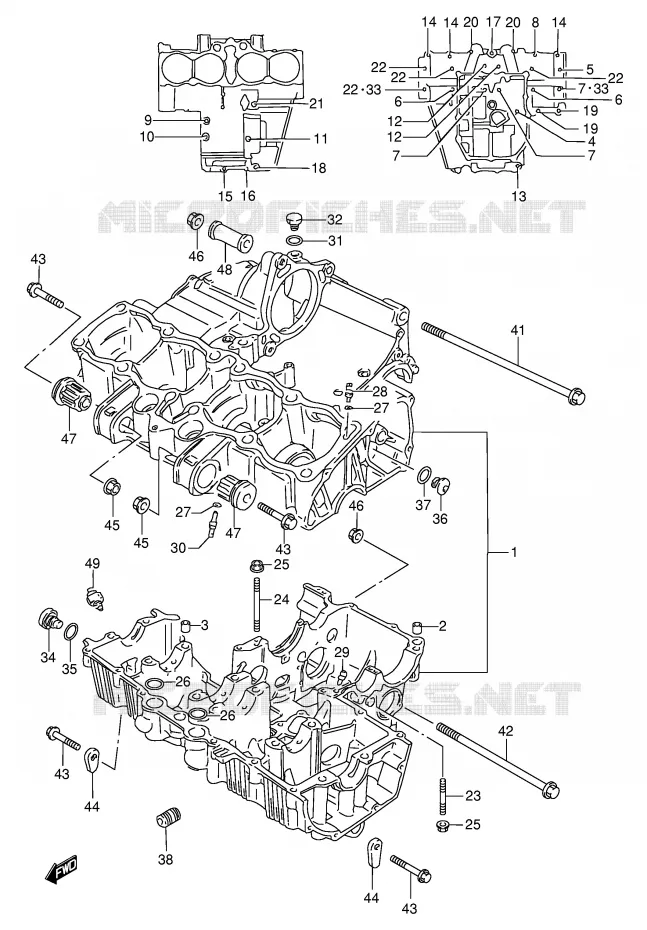

CRANKCASE Suzuki MOTO 600 BANDIT 1997 GSF600SV(E2)
1
1
1
2
3
4
5
6
6
7
7
7
8
9
10
11
12
12
13
14
14
14
15
15
16
17
18
19
19
20
20
21
22
22
22
22
22
22
22
22
23
24
25
25
26
26
27
27
28
29
30
31
32
33
33
34
35
36
36
37
38
41
42
43
43
43
43
44
44
45
45
46
46
47
47
48
49
1
CRANKCASE SET

11301-26871-000   1130126871000

1130126871000
Not available
1
DISCONTINUE

11301-26872-000  

1130126872000
Not available
2
CLUTCH COVER PI **S1<br />PIN
CLUTCH COVER PI **S1
PIN

09206-13004-000   0920613004000

0920613004000

Unit Price

3
PIN, 11 X20<br />PIN
PIN, 11 X20
PIN

09206-11017-000   0920611017000

0920611017000

Unit Price

4
BOLT (6X105)
BOLT (6X105)

09103-06163-000   0910306163000

0910306163000
Not available
5
BOLT<br />BOLT (8X105)
BOLT
BOLT (8X105)

09103-08097-000   0910308097000

0910308097000

Unit Price

6
BOLT (8X125)
BOLT (8X125)

09103-08182-000   0910308182000

0910308182000

Unit Price

7
BOLT<br />BOLT (8X115)
BOLT
BOLT (8X115)

09103-08098-000   0910308098000

0910308098000

Unit Price

8
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

9
BOLT

07130-06403-000  

07130-0640B-000
 0713006403000

Unit Price

10
BOLT

07130-06503-000  

07130-0650B-000
 0713006503000

Unit Price

11
BOLT

07130-06653-000  

07130-0665B-000
 0713006653000

Unit Price

12
BOLT

07130-08653-000  

07130-0865B-000
 0713008653000

Unit Price

13
BOLT

01550-08603-000  

01550-0860B-000
 0155008603000

Unit Price

14
BOLT

01550-06353-000  

01550-0635B-000
 0155006353000

Unit Price

15
BOLT

01550-06403-000  

01550-0640A-000
 0155006403000

Unit Price

15
BOLT
BOLT

01550-06407-000   0155006407000

0155006407000

Unit Price

16
BOLT
BOLT

01550-06407-000   0155006407000

0155006407000

Unit Price

17
BOLT

01550-06503-000  

01550-0650A-000
 0155006503000

Unit Price

18
BOLT

01550-06603-000  

01550-0660A-000
 0155006603000

Unit Price

19
BOLT

01550-06553-000  

01550-0655B-000
 0155006553000

Unit Price

20
DISCONTINUE
BOLT

01550-06703-000  

0155006703000
Not available
21
BOLT

01550-06803-000  

01550-0680B-000
 0155006803000

Unit Price

22
BOLT (8X95)
BOLT (8X95)

09103-08105-000   0910308105000

0910308105000

Unit Price

22
BOLT (8X95)
BOLT (8X95)

09103-08066-000   0910308066000

0910308066000
Not available
23
STUD BOLT

01421-06408-000   0142106408000

0142106408000
Not available
24
BOLT, STUD

01421-06608-000  

01421-0660A-000
 0142106608000

Unit Price

25
NUT 6MM

08316-10063-000  

08319-31067-000
 0831610063000

Unit Price

26
O RING(D:2.5,ID:21)<br />O RING (D:2.5,ID:21.0)
O RING(D:2.5, ID:21)
O RING (D:2.5, ID:21.0)

09280-21008-000   0928021008000

0928021008000

Unit Price

27
O RING<br />O RING (D:1.2,ID:4.0)
O RING
O RING (D:1.2, ID:4.0)

09280-04004-000   0928004004000

0928004004000

Unit Price

28
JET, OIL GALY HEAD
JET, OIL GALY HEAD

09493-14002-000   0949314002000

0949314002000
Not available
29
JET<br />JET, OIL GALY GEAR SHIFT
JET
JET, OIL GALY GEAR SHIFT

09493-24010-000   0949324010000

0949324010000

Unit Price

30
JET, OIL GALY PISTON
JET, OIL GALY PISTON

09493-80008-000   0949380008000

0949380008000
Not available
31
GASKET OIL GALLERY<br />GASKET, HOLE PLUG
GASKET OIL GALLERY
GASKET, HOLE PLUG

09168-12002-000   0916812002000

0916812002000

Unit Price

32
PLUG 2ND MUFFLER<br />PLUG, HOLE
PLUG 2ND MUFFLER
PLUG, HOLE

09247-12103-000   0924712103000

0924712103000

Unit Price

33
GASKET 8.5X17X2.3<br />GASKET
GASKET 8.5X17X2.3
GASKET

09168-08021-000   0916808021000

0916808021000

Unit Price

34
PLUG, OIL GALLERY

09248-16003-000  

09248-16007-000
 0924816003000

Unit Price

35
O RING (D:2.4,ID:16.8)
O RING (D:2.4, ID:16.8)

09280-17002-000   0928017002000

0928017002000

Unit Price

36
PLUG
PLUG

09248-14010-000   0924814010000

0924814010000

Unit Price

36
09248-14011<br />PLUG, OIL GALLERY
09248-14011
PLUG, OIL GALLERY

09248-14005-000  

0924814005000
Not available
37
GASKET,13.8X18.8X0.4<br />GASKET
GASKET, 13.8X18.8X0.4
GASKET

09168-14002-000   0916814002000

0916814002000

Unit Price

38
UNION, OIL STAND

16591-06B00-000  

16591-06B01-000
 1659106B00000

Unit Price

39
PLATE,CRANK THRUST<br />BEARING, THRUST RH (BROWN)
PLATE, CRANK THRUST
BEARING, THRUST RH (BROWN)

12228-43414-000   1222843414000

1222843414000

Unit Price

40
PLATE,CRANK THRUST<br />BEARING, THRUST LH (GREEN)
PLATE, CRANK THRUST
BEARING, THRUST LH (GREEN)

12228-43414-000   1222843414000

1222843414000

Unit Price

40
BEARING,THRUST<br />BEARING, THRUST LH (YELLOW)
BEARING, THRUST
BEARING, THRUST LH (YELLOW)

12228-43415-000   1222843415000

1222843415000

Unit Price

40
DISCONTINUE<br />BEARING, THRUST LH (RED)
DISCONTINUE
BEARING, THRUST LH (RED)

12228-43411-000   1222843411000

1222843411000
Not available
40
DISCONTINUE<br />BEARING, THRUST LH (BLACK)
DISCONTINUE
BEARING, THRUST LH (BLACK)

12228-43412-000   1222843412000

1222843412000
Not available
40
DISCONTINUE<br />BEARING, THRUST LH (BLUE)
DISCONTINUE
BEARING, THRUST LH (BLUE)

12228-43413-000   1222843413000

1222843413000
Not available
40
DISCONTINUE<br />BEARING, THRUST LH (WHITE)
DISCONTINUE
BEARING, THRUST LH (WHITE)

12228-43416-000   1222843416000

1222843416000
Not available
41
BOLT,L:180<br />BOLT (10X180)
BOLT, L:180
BOLT (10X180)

09103-10136-000   0910310136000

0910310136000

Unit Price

42
BOLT<br />BOLT (10X130)
BOLT
BOLT (10X130)

09103-10122-000   0910310122000

0910310122000

Unit Price

43
BOLT

01580-10553-000  

01580-1055B-000
 0158010553000

Unit Price

44
ENGINE MOUNT NUT N02<br />NUT
ENGINE MOUNT NUT N02
NUT

09159-10020-000   0915910020000

0915910020000

Unit Price

45
NUT

08316-10103-000  

08316-1010B-000
 0831610103000

Unit Price

46
NUT

09159-10058-000  

09159-10115-000
 0915910058000

Unit Price

47
BUSH,ENGINE MOUNTING
BUSH, ENGINE MOUNTING

11681-06B00-000  

11681-06B01-000
 1168106B00000

Unit Price

48
SPACER,ENGINE MOUNT(L27)<br />SPACER (L:27)
SPACER, ENGINE MOUNT(L27)
SPACER (L:27)

11610-20C00-000   1161020C00000

1161020C00000

Unit Price

49
SWITCH ASSY, OIL PRESSURE

37820-33D00-000  

37820-33D11-000
 3782033D00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKCASE of your Suzuki BANDIT 600 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 600 BANDIT 1997
