Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

RIGHT SWITCH - HANDGRIP

FRONT FORK FOR SUZUKI BANDIT 600 1997

STEERING COLUMN

Item numbers

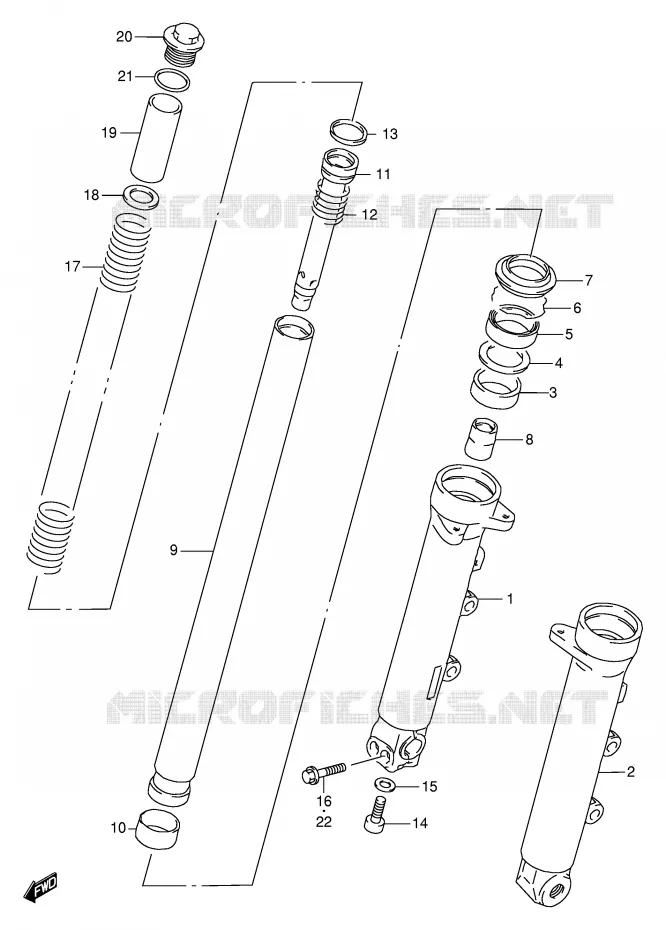

FRONT FORK Suzuki MOTO 600 BANDIT 1997 GSF600V/GSF600SV/GSF600UV/GSF600SUV
1
2
3
4
5
5
6
7
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
1
DISCONTINUE
TUBE, OUTER RH

51130-26E00-000   5113026E00000

5113026E00000
Not available
2
TUBE, OUTER LH

51140-26E00-000   5114026E00000

5114026E00000
Not available
3
METAL, SLIDE

51167-28C00-000  

51167-26E10-000
 5116728C00000

Unit Price

4
WASHER
WASHER

51158-05A00-000   5115805A00000

5115805A00000

Unit Price

5
SEAL, OIL
SEAL, OIL

51153-14F00-000   5115314F00000

5115314F00000

Unit Price

5
SEAL, OIL
SEAL, OIL

51153-27C20-000   5115327C20000

5115327C20000

Unit Price

6
RING,OIL SEAL STOPPER<br />RING, STOPPER
RING, OIL SEAL STOPPER
RING, STOPPER

51156-49440-000   5115649440000

5115649440000

Unit Price

7
SEAL, DUST
SEAL, DUST

51173-14F00-000   5117314F00000

5117314F00000

Unit Price

7
SEAL, DUST
SEAL, DUST

51173-46E00-000   5117346E00000

5117346E00000

Unit Price

8
PIECE, OIL LOCK
PIECE, OIL LOCK

51195-06C00-000   5119506C00000

5119506C00000

Unit Price

9
TUBE, INNER
TUBE, INNER

51110-26E01-000   5111026E01000

5111026E01000
Not available
10
PISTON

51121-28C00-000  

51121-26E10-000
 5112128C00000

Unit Price

11
CYLINDER

51146-26E00-000   5114626E00000

5114626E00000
Not available
12
SPRING, REBOUND
SPRING, REBOUND

51177-06C00-000   5117706C00000

5117706C00000

Unit Price

13
DISCONTINUE<br />RING, PISTON
DISCONTINUE
RING, PISTON

51196-06C00-000   5119606C00000

5119606C00000
Not available
14
BOLT,FORK CYLINDER(10X25)<br />BOLT, CYLINDER
BOLT, FORK CYLINDER(10X25)
BOLT, CYLINDER

51147-16510-000   5114716510000

5114716510000

Unit Price

15
GASKET
GASKET

51148-41310-000   5114841310000

5114841310000

Unit Price

16
BOLT<br />BOLT, RH
BOLT
BOLT, RH

01550-08457-000   0155008457000

0155008457000

Unit Price

17
DISCONTINUE<br />SPRING, FRONT
DISCONTINUE
SPRING, FRONT

51171-26E00-000   5117126E00000

5117126E00000
Not available
18
WASHER(22.5X35.9X1.6)<br />WASHER, LOWER
WASHER(22.5X35.9X1.6)
WASHER, LOWER

51356-10D03-000   5135610D03000

5135610D03000

Unit Price

19
DISCONTINUE<br />SPACER
DISCONTINUE
SPACER

51176-10D40-000   5117610D40000

5117610D40000
Not available
20
CAP, FORK
CAP, FORK

51351-10D00-000   5135110D00000

5135110D00000

Unit Price

21
O RING
O RING

09280-32001-000   0928032001000

0928032001000

Unit Price

22
BOLT, TUBE RH

51166-26E50-000   5116626E50000

5116626E50000
Not available
99x
DAMPER ASSY, FRONT FORK RH

51103-26E01-000   5110326E01000

5110326E01000
Not available
99x
DAMPER ASSY, FRONT FORK RH

51103-26E50-000   5110326E50000

5110326E50000
Not available
99x
DAMPER ASSY, FRONT FORK LH

51104-26E01-000   5110426E01000

5110426E01000
Not available
99x
DAMPER ASSY, FRONT FORK LH

51104-26E50-000   5110426E50000

5110426E50000
Not available
Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK of your Suzuki BANDIT 600 of BANDIT. Let us know if you have any questions.

Genuine parts for Suzuki 600 BANDIT 1997

BODY/FRAME ELECTRICAL INFORMATION ENGINE/TRANSMISSION SUSPENSION/BRAKES/WHEELS OPTIONS

Suzuki 600 BANDIT 1997

Select your Suzuki 1997 model

600 BANDIT 1997 GSF600V/GSF600SV/GSF600UV/GSF600SUV

BANDIT 600

Suzuki BANDIT

Displacement: 600 cc
Year: 1997
Model code GSF600V / GSF600SV / GSF600UV / GSF600SUV
