Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

LEVERS - HANDGRIPS

FRONT FORK (MODEL Y / K1 / K2) FOR SUZUKI BANDIT 600 2003

FRONT FORK (MODEL K3 / K4)

Item numbers

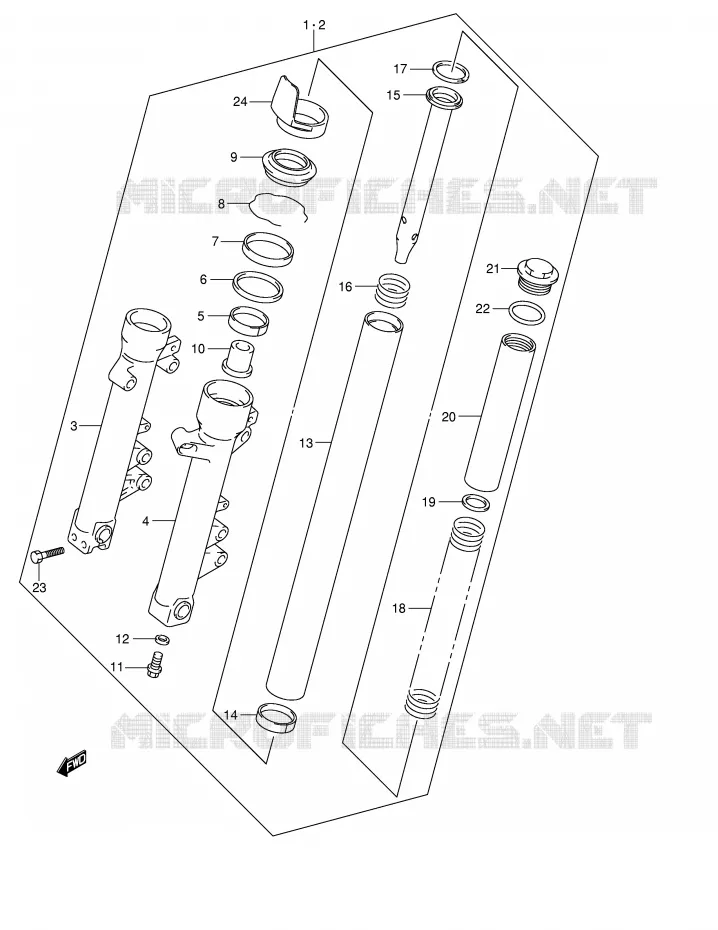

FRONT FORK (MODEL Y/K1/K2) Suzuki MOTO 600 BANDIT 2003 GSF600SUK3(E2)
1
1
2
2
3
4
5
6
7
8
9
10
11
12
13
14
15
15
16
17
18
18
19
20
21
22
23
24
1
DAMPER ASSY, FRONT FORK RH

51103-31F00-000   5110331F00000

5110331F00000
Not available
1
DAMPER ASSY, FRONT FORK RH

51103-31F20-000   5110331F20000

5110331F20000
Not available
2
DAMPER ASSY, FRONT FORK LH

51104-31F00-000   5110431F00000

5110431F00000
Not available
2
DAMPER ASSY, FRONT FORK LH

51104-31F20-000   5110431F20000

5110431F20000
Not available
3
DISCONTINUE
TUBE, OUTER RH

51130-31F00-000   5113031F00000

5113031F00000
Not available
4
DISCONTINUE
TUBE, OUTER LH

51140-31F00-000   5114031F00000

5114031F00000
5
METAL, SLIDE
METAL, SLIDE

51167-26E10-000   5116726E10000

5116726E10000

Unit Price

6
WASHER
WASHER

51158-05A00-000   5115805A00000

5115805A00000

Unit Price

7
SEAL, OIL
SEAL, OIL

51153-14F00-000   5115314F00000

5115314F00000

Unit Price

8
RING,OIL SEAL STOPPER<br />CIRCLIP
RING, OIL SEAL STOPPER
CIRCLIP

51156-49440-000   5115649440000

5115649440000

Unit Price

9
SEAL, DUST
SEAL, DUST

51173-14F00-000   5117314F00000

5117314F00000

Unit Price

10
PIECE, OIL LOCK
PIECE, OIL LOCK

51195-33D10-000   5119533D10000

5119533D10000

Unit Price

11
BOLT,FORK CYLINDER(10X25)<br />BOLT
BOLT, FORK CYLINDER(10X25)
BOLT

51147-16510-000   5114716510000

5114716510000

Unit Price

12
GASKET<br />WASHER
GASKET
WASHER

51148-41310-000   5114841310000

5114841310000

Unit Price

13
TUBE, INNER

51110-31F00-000   5111031F00000

5111031F00000

Unit Price

14
PISTON
PISTON

51121-33D10-000   5112133D10000

5112133D10000

Unit Price

15
CYLINDER

51146-31F00-000   5114631F00000

5114631F00000
Not available
15
CYLINDER

51146-31F20-000   5114631F20000

5114631F20000
Not available
16
SPRING,REBOUND<br />SPRING
SPRING, REBOUND
SPRING

51177-06C00-000   5117706C00000

5117706C00000

Unit Price

17
RING, PISTON
RING, PISTON

51196-31F00-000   5119631F00000

5119631F00000

Unit Price

18
SPRING, FRONT

51171-31F00-000   5117131F00000

5117131F00000
Not available
18
DISCONTINUE
SPRING, FRONT

51171-31F10-000   5117131F10000

5117131F10000
Not available
19
WASHER(22.5X35.9X1.6)<br />WASHER
WASHER(22.5X35.9X1.6)
WASHER

51356-10D03-000   5135610D03000

5135610D03000

Unit Price

20
DISCONTINUE<br />SPACER, SPRING
DISCONTINUE
SPACER, SPRING

51176-14A20-000   5117614A20000

5117614A20000
Not available
21
CAP,FORK<br />CAP
CAP, FORK
CAP

51351-10D00-000   5135110D00000

5135110D00000

Unit Price

22
O RING
O RING

09280-32001-000   0928032001000

0928032001000

Unit Price

23
BOLT<br />BOLT, RH
BOLT
BOLT, RH

01550-08457-000   0155008457000

0155008457000

Unit Price

24
PROTECTOR

51201-31F00-000   5120131F00000

5120131F00000

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the FRONT FORK (MODEL Y/K1/K2) of your Suzuki BANDIT 600 of BANDIT. Let us know if you have any questions.
