Displacement

Model

Year

Finish line

Parts catalogue

Parts diagram

OIL PUMP

CRANKSHAFT FOR SUZUKI BANDIT 600 2004

STARTER MOTOR CLUTCH

Item numbers

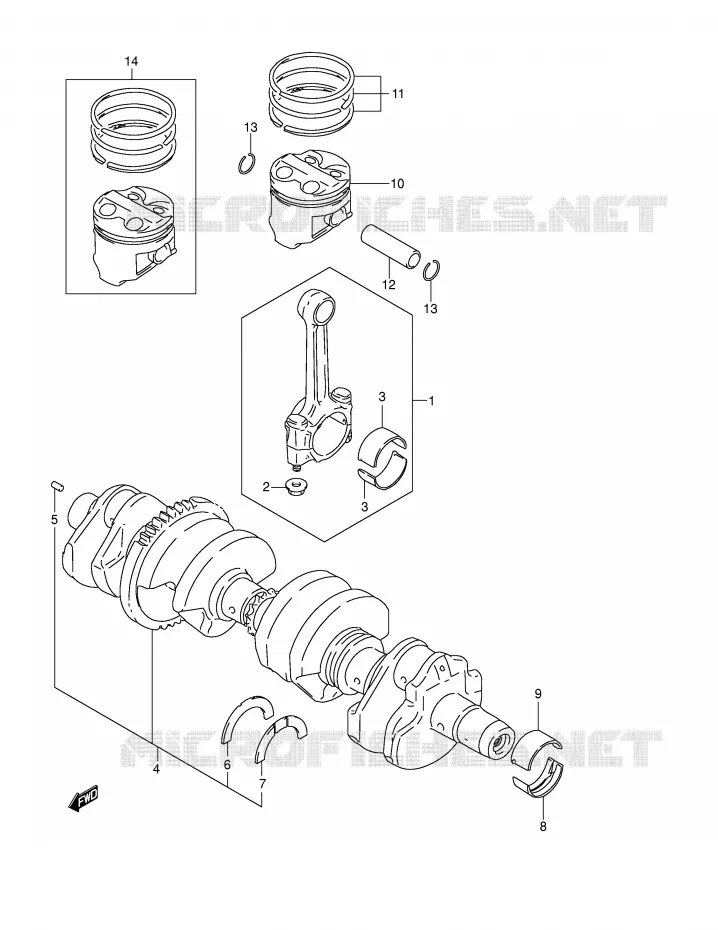

CRANKSHAFT Suzuki MOTO 600 BANDIT 2004 GSF600K4(E2)
1
2
3
3
3
3
3
3
3
3
4
5
6
7
7
7
7
7
7
8
8
8
8
9
9
9
9
10
11
12
13
13
14
1
CONNECTING ROD ASSY<br />ROD ASSY, CONNECTING
CONNECTING ROD ASSY
ROD ASSY, CONNECTING

12160-27A14-000   1216027A14000

1216027A14000

Unit Price

2
NUT
NUT

09159-08033-000   0915908033000

0915908033000

Unit Price

3
BEARING, CRANK PIN

12164-26E00-0A0  

12164-17E01-0A0
 1216426E000A0

Unit Price

3
BEARING, CRANK PIN

12164-26E00-0B0  

12164-17E01-0B0
 1216426E000B0

Unit Price

3
BEARING, CRANK PIN

12164-26E00-0D0  

12164-17E01-0D0
 1216426E000D0

Unit Price

3
BEARING, CRANK PIN
BEARING, CRANK PIN (BROWN)

12164-26E00-0C0  

1216426E000C0
Not available
4
DISCONTINUE<br />CRANKSHAFT SET
DISCONTINUE
CRANKSHAFT SET

12000-26831-000   1200026831000

1200026831000
Not available
5
PIN
PIN

04221-04089-000   0422104089000

0422104089000

Unit Price

6
PLATE,CRANK THRUST<br />BEARING, THRUST RH (GREEN)
PLATE, CRANK THRUST
BEARING, THRUST RH (GREEN)

12228-43414-000   1222843414000

1222843414000

Unit Price

7
PLATE,CRANK THRUST<br />BEARING, THRUST LH (GREEN)
PLATE, CRANK THRUST
BEARING, THRUST LH (GREEN)

12228-43414-000   1222843414000

1222843414000

Unit Price

7
BEARING,THRUST<br />BEARING, THRUST LH (YELLOW)
BEARING, THRUST
BEARING, THRUST LH (YELLOW)

12228-43415-000   1222843415000

1222843415000

Unit Price

7
DISCONTINUE<br />BEARING, THRUST LH (RED)
DISCONTINUE
BEARING, THRUST LH (RED)

12228-43411-000   1222843411000

1222843411000
Not available
7
DISCONTINUE<br />BEARING, THRUST LH (BLACK)
DISCONTINUE
BEARING, THRUST LH (BLACK)

12228-43412-000   1222843412000

1222843412000
Not available
7
DISCONTINUE<br />BEARING, THRUST LH (BLUE)
DISCONTINUE
BEARING, THRUST LH (BLUE)

12228-43413-000   1222843413000

1222843413000
Not available
7
DISCONTINUE<br />BEARING, THRUST LH (WHITE)
DISCONTINUE
BEARING, THRUST LH (WHITE)

12228-43416-000   1222843416000

1222843416000
Not available
8
BEARING,CRANKSHAFT LWR<br />BEARING, CRANKSHAFT (GREEN)
BEARING, CRANKSHAFT LWR
BEARING, CRANKSHAFT (GREEN)

12229-27A00-0A0   1222927A000A0

1222927A000A0

Unit Price

8
BEARING,CRANKSHAFT LWR<br />BEARING, CRANKSHAFT (BLACK)
BEARING, CRANKSHAFT LWR
BEARING, CRANKSHAFT (BLACK)

12229-27A00-0B0   1222927A000B0

1222927A000B0

Unit Price

8
BEARING,CRANKSHAFT LWR<br />BEARING, CRANKSHAFT (BROWN)
BEARING, CRANKSHAFT LWR
BEARING, CRANKSHAFT (BROWN)

12229-27A00-0C0   1222927A000C0

1222927A000C0

Unit Price

8
BEARING,CRANKSHAFT LWR<br />BEARING, CRANKSHAFT (YELLOW)
BEARING, CRANKSHAFT LWR
BEARING, CRANKSHAFT (YELLOW)

12229-27A00-0D0   1222927A000D0

1222927A000D0

Unit Price

9
BEARING,CRANKSHAFT UPR<br />BEARING, CRANKSHAFT (GREEN)
BEARING, CRANKSHAFT UPR
BEARING, CRANKSHAFT (GREEN)

12229-27A10-0A0   1222927A100A0

1222927A100A0

Unit Price

9
BEARING,CRANKSHAFT UPR<br />BEARING, CRANKSHAFT (BLACK)
BEARING, CRANKSHAFT UPR
BEARING, CRANKSHAFT (BLACK)

12229-27A10-0B0   1222927A100B0

1222927A100B0

Unit Price

9
BEARING,CRANKSHAFT UPR<br />BEARING, CRANKSHAFT (BROWN)
BEARING, CRANKSHAFT UPR
BEARING, CRANKSHAFT (BROWN)

12229-27A10-0C0   1222927A100C0

1222927A100C0

Unit Price

9
BEARING,CRANKSHAFT UPR<br />BEARING, CRANKSHAFT (YELLOW)
BEARING, CRANKSHAFT UPR
BEARING, CRANKSHAFT (YELLOW)

12229-27A10-0D0   1222927A100D0

1222927A100D0

Unit Price

10
DISCONTINUE
PISTON

12111-19C30-0F0   1211119C300F0

1211119C300F0
Not available
11
RING SET, PISTON

12140-19C20-000   1214019C20000

1214019C20000

Unit Price

12
PIN, PISTON

12151-19C02-000   1215119C02000

1215119C02000

Unit Price

13
CIRCLIP, PISTON PIN

09381-18003-000  

09381-18005-000
 0938118003000

Unit Price

14
PISTON SET (OS:0.5)

12100-19C30-050   1210019C30050

1210019C30050

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CRANKSHAFT of your Suzuki BANDIT 600 of BANDIT. Let us know if you have any questions.
