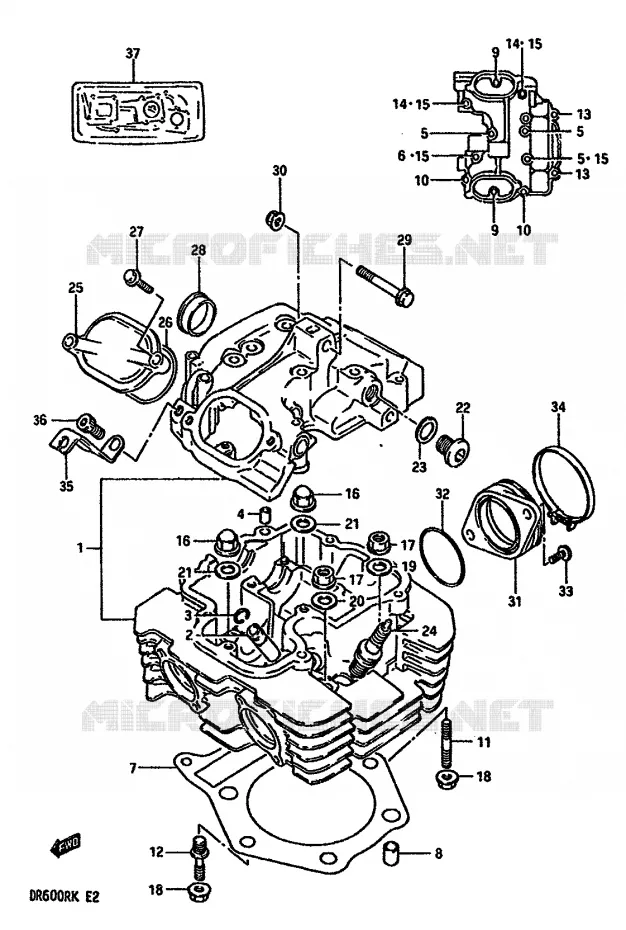

CYLINDER HEAD FOR SUZUKI DR 600 1986

CYLINDER

DISCONTINUED

11100-14A02-000 1110014A02000

Not available

HEAD ASSY, CYLINDER

11100-14A03-000 1110014A03000

Not available

GUIDE, VALVE

11115-37470-000 1111537470000

$43,97

Unit Price

RING, SNAP
RING, VALVE GUIDE

09381-10003-000 0938110003000

$6,97

Unit Price

PIN(8X11)
PIN

09206-08001-000 0920608001000

$2,97

Unit Price

BOLT

01517-06605-000

01550-06603-000

$4,97

Unit Price

BOLT (6X55)

09103-06040-000 0910306040000

Not available

DISCONTINUE
GASKET, CYLINDER HEAD

11141-14A01-000 1114114A01000

Not available

09206-13001-000

04211-13189-000

$3,97

Unit Price

BOLT

01517-06254-000

01550-0625B-000

$3,97

Unit Price

BOLT

01517-06404-000

01550-0640A-000

$3,97

Unit Price

BOLT STUD L:33

09108-08161-000

09108-08220-000

$5,97

Unit Price

BOLT, STUD (M12/8)

09108-08162-000 0910808162000

Not available

BOLT (6X130)

09103-06085-000 0910306085000

$6,97

Unit Price

BOLT

01517-06605-000

01550-06603-000

$4,97

Unit Price

GASKET
WASHER

09168-06023-000 0916806023000

Not available

CYLINDER HEAD NUT
NUT

09159-10026-000 0915910026000

$9,97

Unit Price

NUT

08316-16105-000

08316-1010B-000

$4,97

Unit Price

NUT

08316-16085-000

08316-1008B-000

$4,97

Unit Price

WASHER

09160-10039-000 0916010039000

$3,97

Unit Price

WASHER

09160-10093-000 0916010093000

$3,97

Unit Price

GASKET

09168-10017-000 0916810017000

$4,97

Unit Price

PLUG

09248-14004-000

09248-14010-000

$9,97

Unit Price

SPARK PLUG GASKET
GASKET

09168-14004-000 0916814004000

$2,97

Unit Price

DPR9EA-9, NGK
SPARK PLUG (NGK, DPR9EA-9)

09482-00330-000 0948200330000

$6,45

Unit Price

SPARK PLUG (NGK, DP9EA-9)

09482-00328-000 0948200328000

Not available

SPARK PLUG (ND, X27EP-U9)

09482-00329-111 0948200329111

Not available

SPARK PLUG (ND, X27EPR-U9)

09482-00331-111 0948200331111

Not available

DISCONTINUED

11175-14A00-000 1117514A00000

Not available

O RING, CAP
O RING

09280-60004-000 0928060004000

$7,97

Unit Price

BOLT

01517-06254-000

01550-0625B-000

$3,97

Unit Price

PLUG, CAM SHAFT
PLUG, HEAD

09241-30004-000 0924130004000

$11,97

Unit Price

BOLT (8X50)

09103-08082-000 0910308082000

Not available

NUT

08319-31085-000

08319-3108A-000

$3,97

Unit Price

DISCONTINUE
PIPE, INTAKE

13110-14A02-000 1311014A02000

Not available

PIPE ASSY, INTAKE

13110-14A11-000

Not available

PIPE, INTAKE

13110-14A20-000 1311014A20000

Not available

O RING

09280-46002-000 0928046002000

$17,97

Unit Price

SCREW

02152-06205-000

02112-0620A-000

$2,97

Unit Price

CLAMP

09402-54208-000 0940254208000

$9,97

Unit Price

CLAMP

09402-58208-000 0940258208000

$8,97

Unit Price

DISCONTINUE
HOLDER, DECOMP CABLE, RH

12944-14A00-000 1294414A00000

Not available

BOLT

07110-08165-000

07130-0816A-000

$4,97

Unit Price

DISCONTINUE

11401-14823-000

Not available

GASKET SET (NA)

11401-14823-H17 1140114823H17

Not available

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the CYLINDER HEAD of your Suzuki DR 600 of DR. Let us know if you have any questions.
