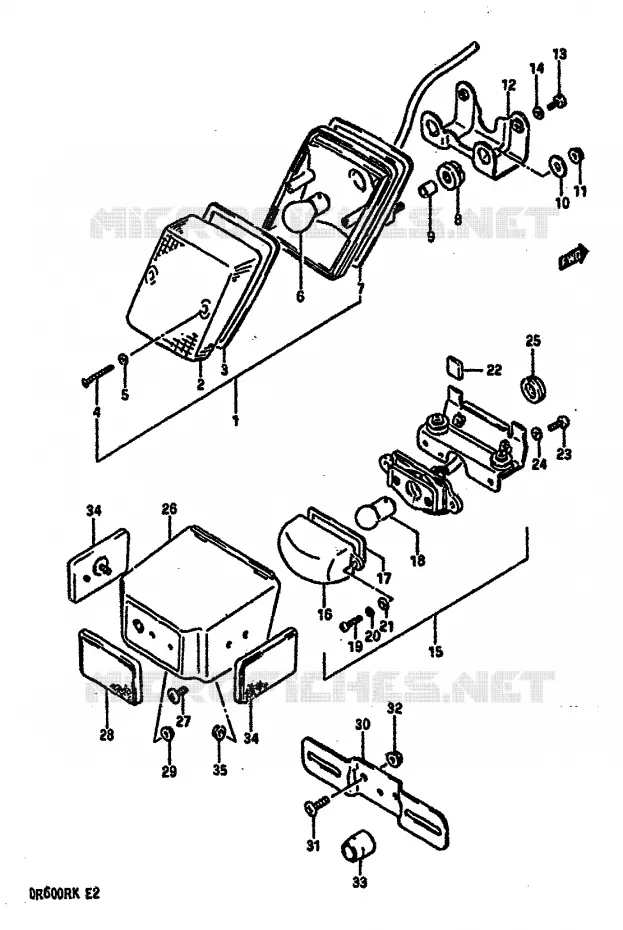

TAIL LIGHT FOR SUZUKI DR 600 1988

WIRING HARNESS

LAMP ASSY, REAR COMBINATION

35710-14A00-999 3571014A00999

Not available

LAMP ASSY, REAR COMBINATION

35710-14A50-000 3571014A50000

Not available

DISCONTINUE
LENS

35712-14A00-000 3571214A00000

Not available

.GASKET

35713-14A00-000 3571314A00000

Not available

SCREW

03211-04258-000

03211-0425B-000

$3,97

Unit Price

GASKET

35627-43010-000 3562743010000

$3,97

Unit Price

BULB(12V1.4W G30)
BULB (12V 21/5W)

09471-12083-000 0947112083000

$9,97

Unit Price

DISCONTINUE
BULB (12V, 23/8W)

09471-12084-000 0947112084000

Not available

GASKET

35733-14A00-000 3573314A00000

Not available

CUSHION

09320-09018-000 0932009018000

$3,97

Unit Price

SPACER

09180-06030-000

09180-06310-000

$3,97

Unit Price

WASHER 6.5X10X1.2

09160-06027-000

09160-06077-000

$3,97

Unit Price

.NUT

08310-11066-000 0831011066000

Not available

BRACKET, TAIL LAMP

35726-14A00-000 3572614A00000

Not available

BOLT

01107-06126-000

01500-06123-000

$3,97

Unit Price

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

LAMP ASSY, LICENSE

35910-14A00-000 3591014A00000

Not available

LAMP ASSY, LICENSE

35910-14A50-000 3591014A50000

Not available

DISCONTINUE
LENS

35912-00A10-000 3591200A10000

Not available

DISCONTINUE

35912-00A20-000

Not available

GASKET

35913-04A00-000 3591304A00000

Not available

.BULB (12V, 8W)

09471-12037-000 0947112037000

Not available

BULB(12V10W)
BULB

09471-12140-000

Not available

SCREW

02112-04167-000

02112-0416A-000

$2,97

Unit Price

WASHER, LOCK

08321-21047-000

08321-0104A-000

$2,97

Unit Price

WASHER

08322-21047-000

08322-01047-000

$2,97

Unit Price

CAP

35936-14A00-000 3593614A00000

Not available

SCREW 6X20

02112-06206-000 0211206206000

Not available

08321-0106A
.WASHERLOCK6.1X12X1.2

08321-21066-000

Not available

GROMMET

09308-07011-000

Not available

COVER, LICENSE LAMP

35917-14A00-000 3591714A00000

Not available

COVER, LICENSE LAMP

35917-14A30-000 3591714A30000

Not available

SCREW

02142-05164-000

02142-0516B-000

$3,97

Unit Price

DISCONTINUE
REFLEX REFLECTOR, REAR

35970-14A00-000 3597014A00000

Not available

DISCONTINUE

35970-17300-000

Not available

NUT

08316-26055-000

08316-2005A-000

$3,97

Unit Price

BRACKET, LICENSE PLATE

35927-14A00-000 3592714A00000

Not available

SCREW

02142-06164-000

02142-0616A-000

$2,97

Unit Price

NUT 6MM

08316-16066-000

08319-31067-000

$3,97

Unit Price

CUSHION

09320-08035-000 0932008035000

Not available

REFLEX REFLECTOR, REAR SIDE

35950-14A50-000 3595014A50000

Not available

NUT

08316-26055-000

08316-2005A-000

$3,97

Unit Price

Please note that the parts offered for sale are parts from the manufacturer's catalogue, we sometimes have to order them especially for you from Suzuki. Please refer to the Shipping and Delivery section for more information on delivery times.
The diagrams are not contractual, if you have any questions, our professionals are here to help and advise you as well as possible.
Select the required part number in the diagram or refer to the list above to find the information and prices relating to the different parts.
Be careful to order the required quantity when adding a part to your cart. Please note that the unit price indicated is the price for each part number in quantity 1.

Find on this page all the original spare parts relating to the TAIL LIGHT of your Suzuki DR 600 R REDUCED POWER of DR. Let us know if you have any questions.
